Site Name 0.00 GPM
1/16/2013
2:18 PM
System Site I/O Cal Adv Display Meter Log
PC Storage ENet Time Comm Disk Power Misc Update
Quit Meter to Manage / Update
Set Up Quick Boot
GUI -> Rev G = V 001.14 20121011.0
DSP -> Rev G = V 001.14 20121011.0
DASH -> Rev F = V 001.12 20120821.0
BIOS -> Rev A = V 001.00 20111112.0
OS -> Rev A = V 001.02 20121011.0

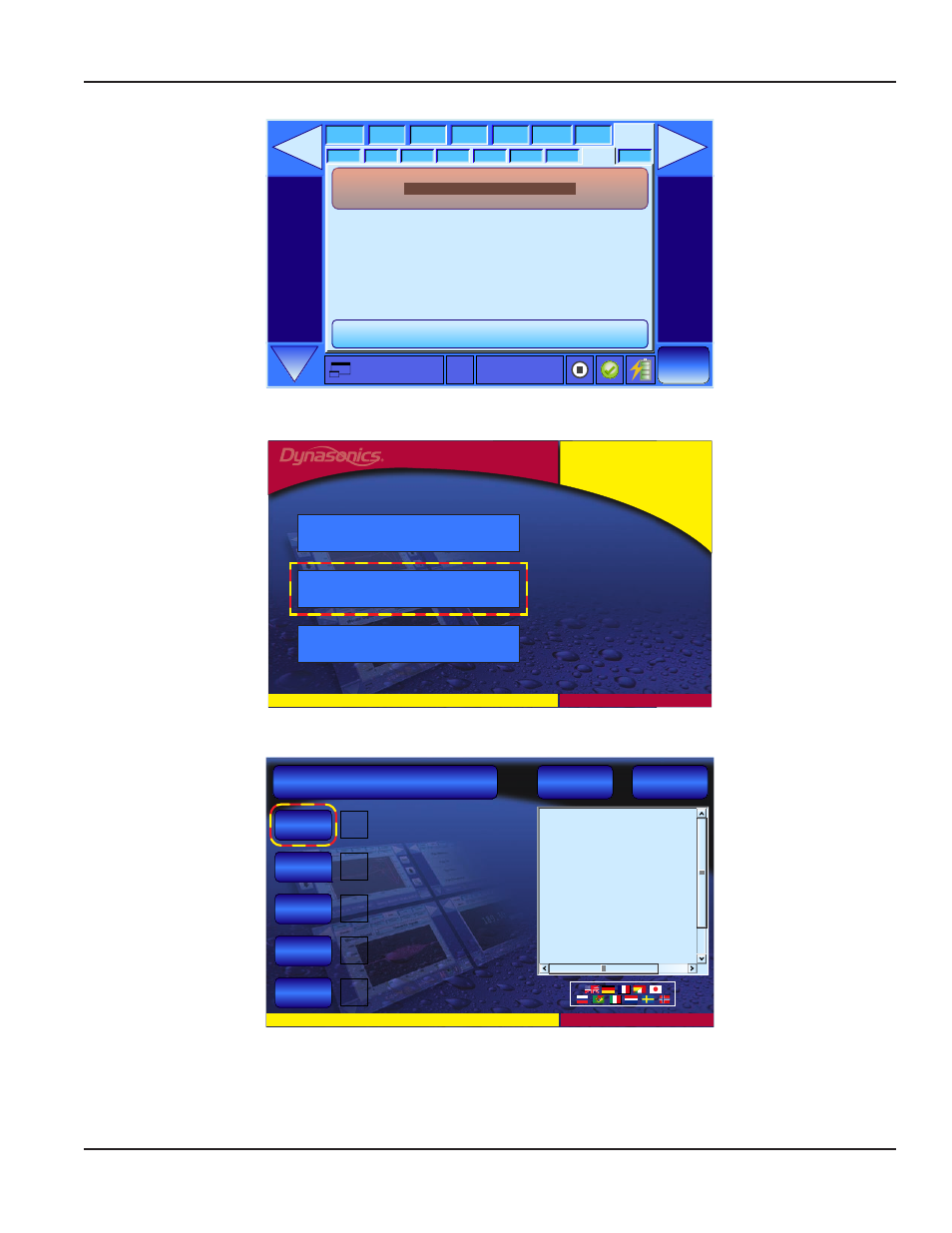

9. Press the Start Updater button.
Series DXN
Launch Updater
dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved
Start Flowmeter
Start Updater
Flowmeter Administration Tools
10. Press the Unlock button (Step 1: Unlock System (Reboot).
dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved
Check Update Status Quit Update Utility Restart System
Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
UD: XKey1 exists
UD: SR value is 0
UD: Eth Services IP=192.168.0.100 Subnet = 255.255.255.0
UD: Folders
UD: Registry
C:\Documents and Settings\FlowMeterUser> ewfm
Protected Volume Configuration
Type RAM
State ENABLED
Boot Command NO_CMD
Param1 0
Param2 0
Presistent Data “”
Volume ID C7 A2 27 25 00 7E 00 00 00 00 00
Device Name “\Device\HarddiskVolume1” [C:]
Max Levels 1
Clump Size 512
Current Level 1
Memory used for data 6432256 bytes
Memory used for mapping 16384 bytes
Unlock
Lock
Update
Flowmeter
Update
System
Copy
ORDEM & PR OGRE SSO
Figure 119: OkOK
11. There will be a small panel in the center of the screen asking if it is OK to reboot. Remove the thumb drive and then
press the OK button
Installation & Operation Manual
Page 89 February 2013
