Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
UD: XKey1 exists
UD: SR value is 0
UD: Eth Services IP=192.168.0.100 Subnet = 255.255.255.0
UD: Folders
UD: Registry
C:\Documents and Settings\FlowMeterUser> ewfm
Protected Volume Configuration
Type RAM
State ENABLED
Boot Command NO_CMD
Param1 0
Param2 0
Presistent Data “”
Volume ID C7 A2 27 25 00 7E 00 00 00 00 00
Device Name “\Device\HarddiskVolume1” [C:]
Max Levels 1
Clump Size 512
Current Level 1
Memory used for data 6432256 bytes
Memory used for mapping 16384 bytes
Unlock
Lock
Update
Flowmeter
Update
System
Copy
ORDEM & PR OGRE SSO
Check Update Status Quit Update Utility Restart System
×
OK
Must Reboot
?

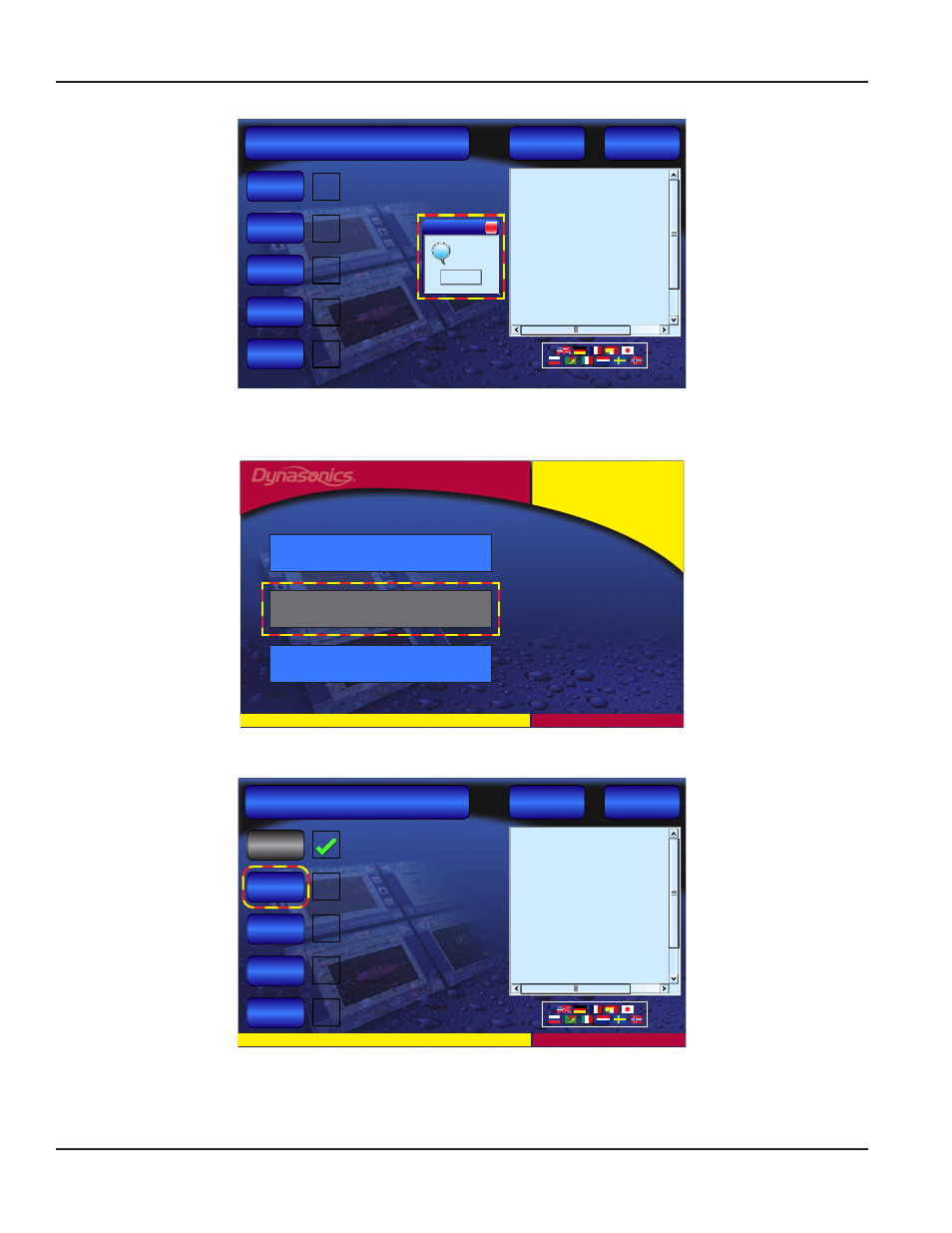

12. After the reboot, there will be a screen with a grayed-out button that says Insert USB Update Drive. When the update
drive is inserted, the grayed-out button will change to Start Updater. Press the Start Updater button.
Series DXN
dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved
Start Flowmeter
Insert USB Update Drive
Flowmeter Administration Tools
13. The meter now displays on the update screen. Press Copy (Step 2: Copy Updated Files).
dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved
Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
ORDEM & PR OGRE SSO
UD: XKey1 exists
UD: SR value is 0
UD: Eth Services IP=192.168.0.100 Subnet = 255.255.255.0
UD: Folders
UD: Registry
C:\Documents and Settings\FlowMeterUser> ewfm
Protected Volume Configuration
Type RAM
State ENABLED
Boot Command NO_CMD
Param1 0
Param2 0
Presistent Data “”
Volume ID C7 A2 27 25 00 7E 00 00 00 00 00
Device Name “\Device\HarddiskVolume1” [C:]
Max Levels 1
Clump Size 512
Current Level 1
Memory used for data 6432256 bytes
Memory used for mapping 16384 bytes
Check Update Status Quit Update Utility Restart System
When the copy process is complete there will be a green check mark in the Copy box.
DXN Portable Ultrasonic Measurement System
Page 90 February 2013
