DISPLAY OPERATION AND CONFIGURATION
CAUTION
THE DXN IS DESIGNED TO OPERATE FOR EXTENDED PERIODS WITH FREE AIR MOVEMENT TO COOL THE METER.
THE UNIT SHOULD NOT BE OPERATED FOR MORE THAN 30 MINUTES IN A CLOSED CASE INCLUDING THE CANVAS
CARRYING CASE.
IMNOOTNO
I
The screen should be cleaned only with the cleaning kit supplied. Do not use common cleaning chemicals such as glass cleaner.
Clean the exterior surfaces of the meter using a clean, soft cloth and water.
Menu Conventions

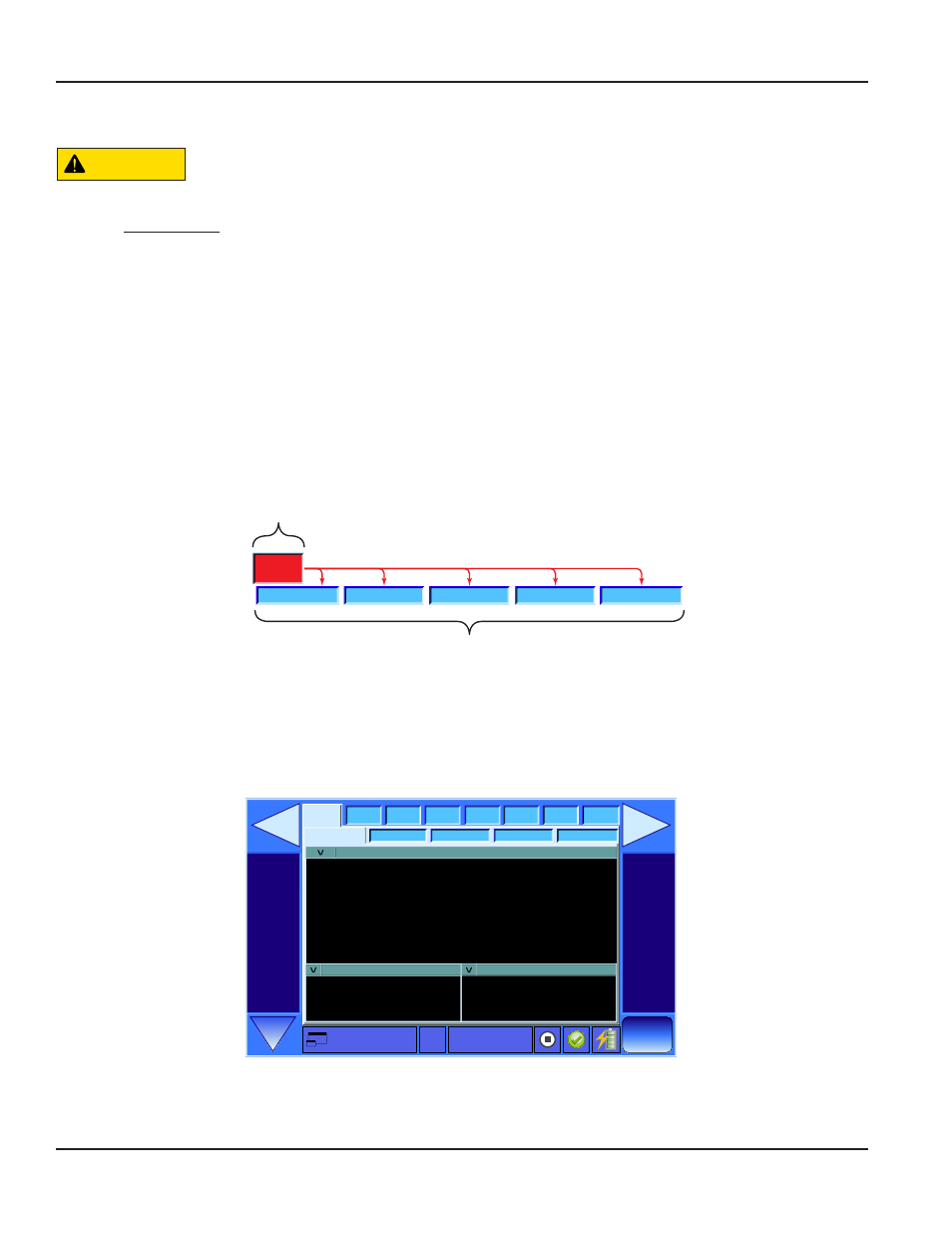

The DXN uses a sophisticated Group>Page layout for navigation. The tabbed menu tree provides access to all controls and
settings using a Group Tab name>Page name.
When navigating the DXN menus this manual will specify first the group tab name and then the page (Group>Page) as shown
in the example below. If you are instructed to navigate to Display>Alerts, that means click first on the Display tab, then click
on the Alerts page.
Group Tab
Pages
Display
Alerts Graph Meters Graph Setup Table
Figure 38: Group>Page Format
Main Screen
The DXN main screen contains all the controls needed to manipulate the user interface. The meter uses buttons, drop-downs
and scroll bars to configure meter functions.
Site Name 0.00 GPM
1/16/2013
2:18 PM
Cal Adv I/O Log Meter Site System Display
Alerts Table Graph Setup Graph Meters
.000
GPM
Flow
Totalizer NET TT Quality
.0
Gallons
0
%
Figure 39: Main Display Screen
