Step 1: Unlock System (Reboot)

Step 3: Copy Updated Files

Step 2: Update System (Reboot)

Step 4: Update Flowmeter

Step 5: Lock System (Reboot)

Unlock

Lock

Update

Flowmeter

Update

System

Copy

ORDEM & PR

OGRE

SSO

SET: D:\WindowsD\WMILogs

SET: D:\WindowsD\MSMQLogs

SET: HKEY_CURRENT_USER\Software\Microsoft

SET: HKEY_CURRENT_USER\Envrioment fro

SET: HKEY_LOCAL_MACHINE\SYSTEM\Current

OK: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft

OK: HKEY_LOCAL_MACHINE\SYSTEM\CurrentC

SET: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft

OK: HKEY_LOCAL_MACHINE\SYSTEM\CurrentC

SET: HKEY_LOCAL_MACHINE\SYSTEM\Current

Check Update Status

Quit Update Utility

Restart System

Must Reboot

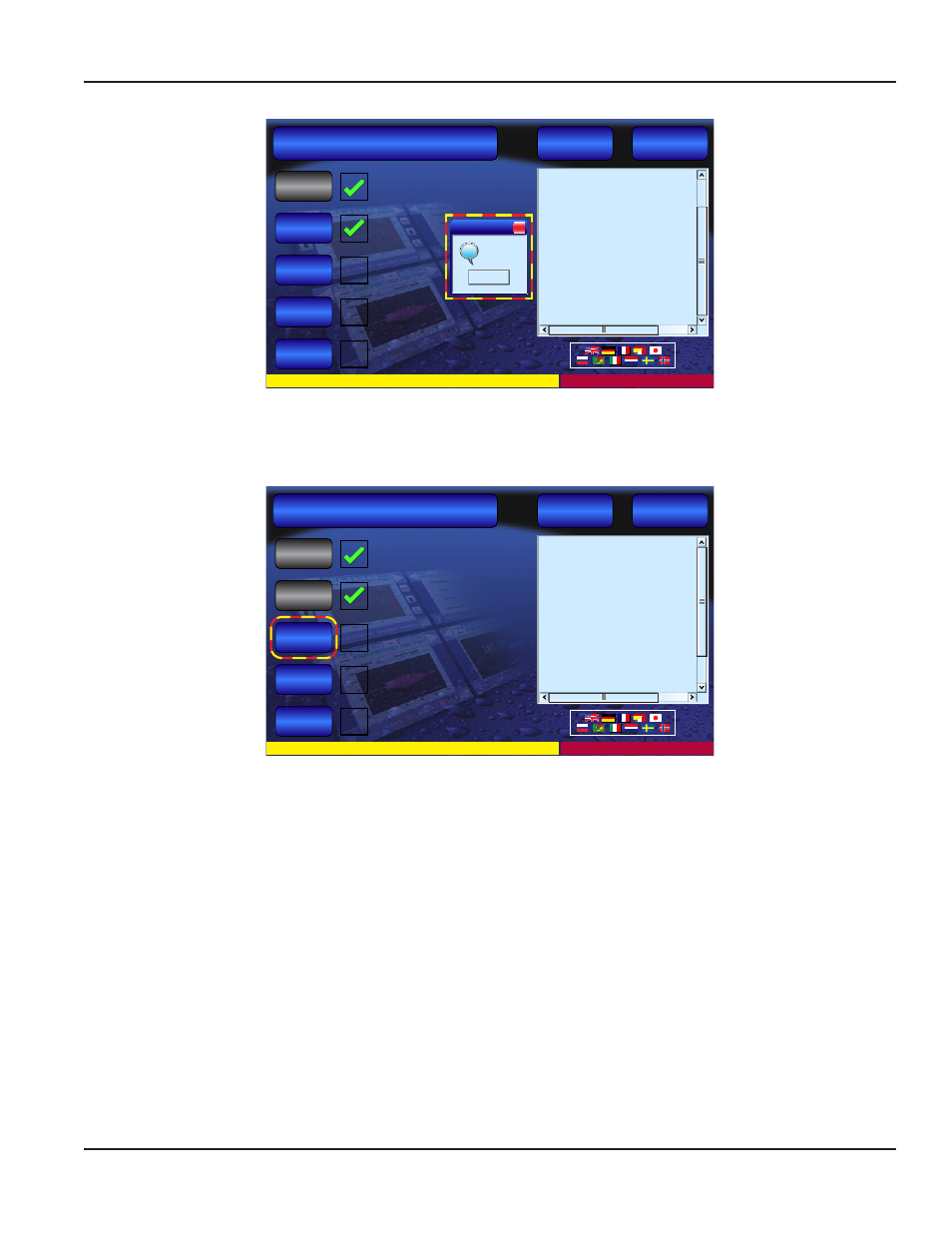

A text message displays that says “Copy Complete xx Files” where xx represents the number of files.

14. Press Update System (Step 3: Update System). The text area to the right will show a series of status messages that

will end with “! Successful Embedded Update ! ... Exiting Reprogramming Mode”.

dynasonics.com

800-535-3569

Step 1: Unlock System (Reboot)

Step 3: Copy Updated Files

Step 2: Update System (Reboot)

Step 4: Update Flowmeter

Step 5: Lock System (Reboot)

Unlock

Lock

Update

Flowmeter

Update

System

Copy

OK: OS Services

OK: Eth Services IP=192.168.0.100 Subnet = 255.255.255.0

OK: Folders

OK: Registry

C:\Documents and Settings\FlowMeterUser> ewfm

Protected Volume Configuration

Type

RAM

State

ENABLED

Boot Command NO_CMD

Param1

Param2

Presistent Data “”

Volume ID

C7 A2 27 25 00 7E 00 00 00 00 00

Device Name

“\Device\HarddiskVolume1” [C:]

Max Levels

Clump Size

512

Current Level 1

Memory used for data 0 bytes

Memory used for mapping 0 bytes

Check Update Status

Quit Update Utility

Restart System

ORDEM & PR

OGRE

SSO

NOTE:

If the process hangs-up, press the Update System button a second time to clear the hang. The process may take a

few minutes to complete. When the process is complete, use the scroll bars in the message area find to the message

“!Successful Update! ... Exiting Reprogramming Mode”. This verifies that the updating process has terminated

15. Press the Lock button (Step 4: Lock System (Reboot)). A short process runs again with text filling the text area.
