New
±10% Hysteresis
Limit
Old
±10% Hysteresis
Limit
Bad Data
Rejection Window
Old
±10% Hysteresis
Limit
New
±10% Hysteresis
Limit
Bad Data
Rejection Window
150
100
50
0
110
90
Flow
1 2 3 4
4 Samples Outside
Hysteresis Limit
Flow Outside Original
Hysteresis Limit

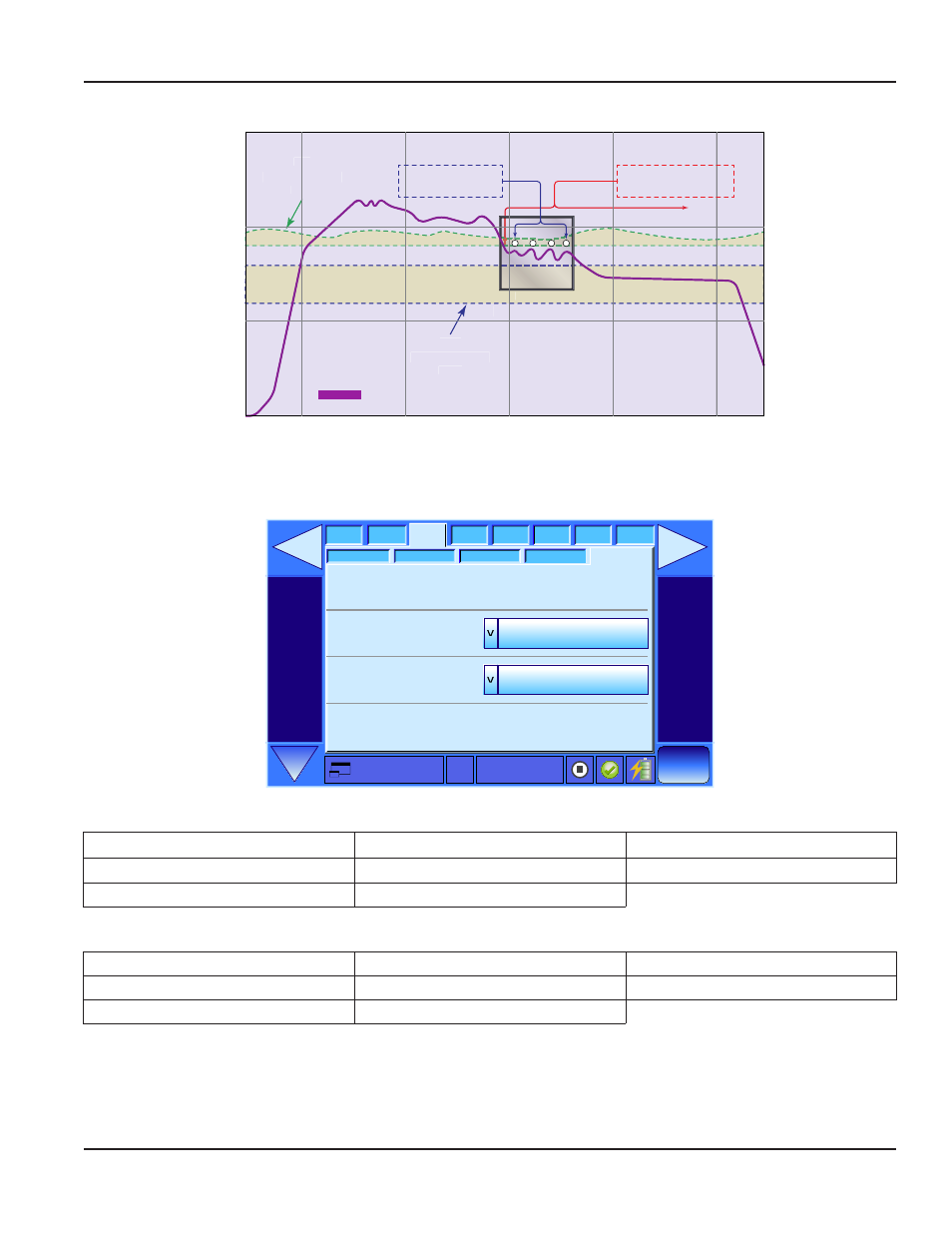

Figure 77: New Valid Flow Data
Energy Page
Site Name 0.00 GPM
03/28/2012
13:24
Meter Display Adv Cal System Site Log I/O
Filter Totalizer Flow Limit Energy
Power Units Watts
Energy Units BTU
Figure 78: Energy Units Selection
Watts BTU per hour (BTU/hr) Thousand Joules per hour (kJ/hr)
Kilowatts (kW) Thousand BTU per hour (MBTU/hr) Million Joules per hour (MJ/hr)
Megawatts (MW) Million BTU per hour (MMBTU/hr)
Table 15: Power Unit Choices
British Thermal Units (BTU) Ton (s) Thousand Watt Hours (kWh)
Thousands of BTUs (MBTU) Thousand Joules (kJ) Million Watt Hours (MWh)
Millions of BTUs (MMBTU) Million Joules (MJ)
Table 16: Energy Unit Choices
Installation & Operation Manual
Page 61 February 2013
