Set
×
Flow
Totalizer NET
Totalizer POS
Totalizer DOP
Flow Velocity
Hybrid Mode
Reynolds Number
Power
Energy NET
Energy POS
Energy DOP
TT Flow
TT Gain
TT Quality
DOP Flow

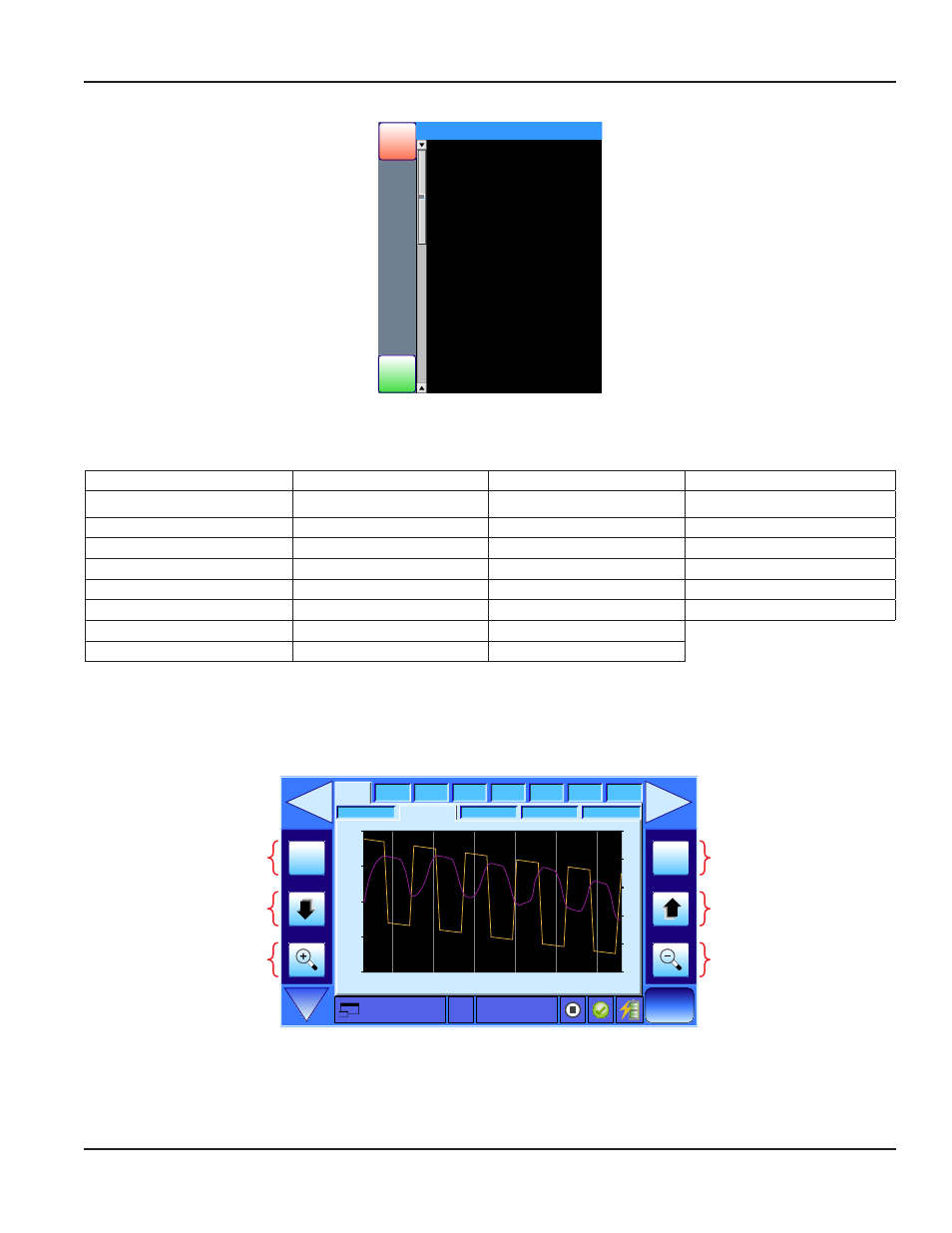

Figure 44: Sample drop-down menu
Table 5 shows all of the available metering parameter choices.
Flow Energy POS TT Delta T RTD2 Temperature
Totalizer NET Energy DOP TT Delta T Raw RTD Delta Temp
Totalizer POS TT Flow TT TOF Bias Raw IO Voltage In
Totalizer DOP TT Gain TT TOF Fluid IO Digital In
Flow Velocity TT Quality TT Fluid SOS IO Voltage Out
Hybrid Mode DOP Flow DOP Flow Velocity IO Current Out
Reynolds Number DOP Gain DOP Frequency IO Digital Out
Power DOP Quality TT Aperture Start
Energy NET TT Flow Velocity RTD1 Temperature
TT = Transit Time DOP = Doppler
Table 5: Meters Drop-down Menu Choices
Graph Page
Site Name 0.00 GPM
3/28/2012
13:24
Display Meter Adv Cal System Site Log I/O
Graph Alerts Table Meters Graph Setup
Axes
Y Lt
Home
12:26:10 12:26:20 12:26:30 12:26:40 12:26:50 12:27:00
100
50
0
-50
-100
80
48
16
-16
-48
-80
Axis Select
Sequentially
Main, X,
Y-Left, Y-Right
Shift Center
of Axes
More Negative
Zoom Axes
(Zoom In)
Restore All
Zoom & Shift
to Default
Shift Center
of Axes
More Positive
Zoom Axes
(Zoom Out)
Figure 45: Display>Graph
Axes Scaling Buttons
Control of the axis scaling is performed with the axes scaling buttons. Pressing the Axes button successively will move
through the three axis configuration choices as shown in Figure 46 .
