ADVANCED (ADV) GROUP
Meter Display Cal System Site Log I/O Adv
Monitor Transit Signals Waveform Doppler Monitor Transit Signals Waveform Doppler

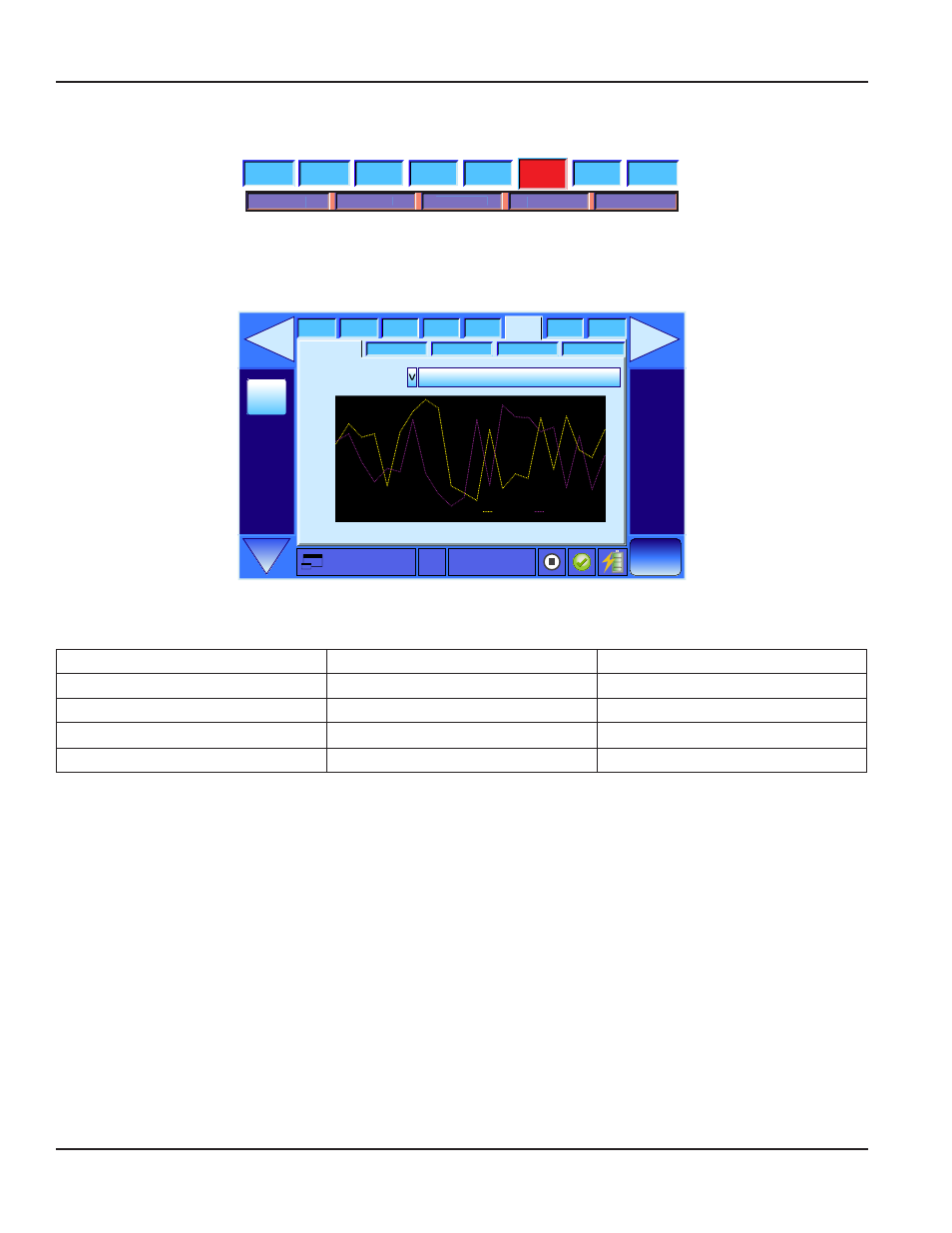

Figure 88: Advanced Group
Signals
Site Name 0.00 GPM
3/28/2012
13:24
Axes
-
Adv Site I/O Cal System Display Meter Log
Signals Monitor Transit Waveform Doppler
Monitor Signal Transit RX Signals
-3000
-1000
-5000
-7000
3000
1000
5000
7000
497 498 496 495 500 499 502 503 501 505 504
TT Up Raw TT Down Raw
Figure 89: Advanced Signal Selection
Select the signal type to be monitored and adjust the graph scale using the Axes adjustments.
Transit RX Signals Transit RX Signals Analyzed Doppler LO Rate
Transit RX Xcor Transit RX Xcor Alt Transit RX Noise
Transit RX Alt Transit TX Waveout Transit RX Envelope
Doppler Best Rate Pipe Thickness Signals Doppler Best Acorr
Doppler MED Rate Doppler Full Rate Doppler HI Rate
Table 19: Waveform Choices for Graphing
