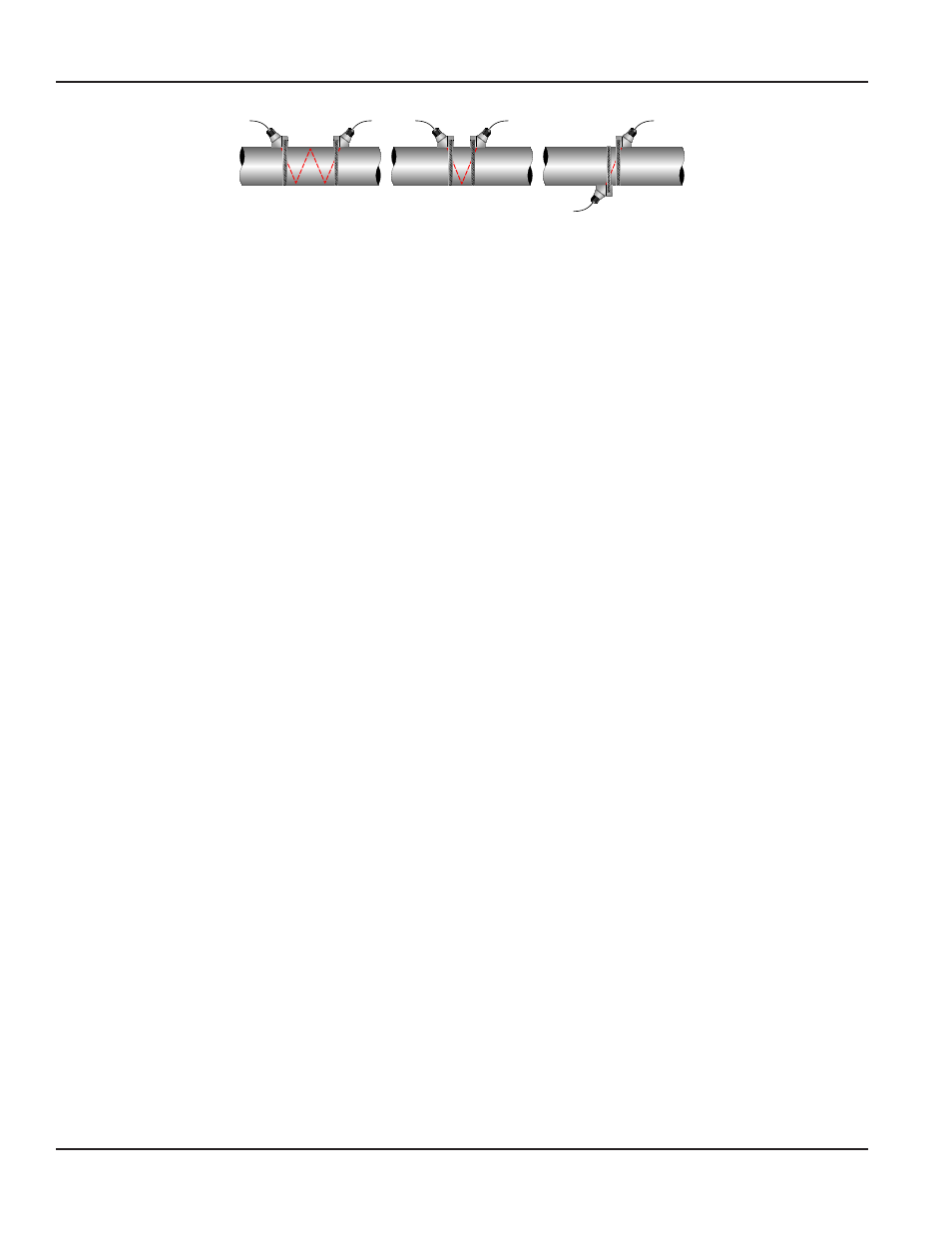

TOP VIEW

OF PIPE

W-Mount

V-Mount

Z-Mount

TOP VIEW

OF PIPE

TOP VIEW

OF PIPE

Figure 23: Transit Time Ultrasound Transmission

The following information will be needed to set up the DXN for transit time operation.

1. Transducer mounting method

7.

Pipe liner thickness

2. Pipe O.D. (Outside Diameter)

8.

Pipe liner material

3. Pipe wall thickness

9.

Fluid type

4. Pipe material

10. Fluid sound speed*

5. Pipe sound speed*

11. Fluid viscosity*

6. Pipe relative roughness*

12. Fluid specific gravity*

NOTE:

N

Much of the data relating to material sound speed, viscosity and specific gravity is pre-programmed into the DXN

flowmeter. This data only needs to be modified if it is known that a particular application’s data varies from the

reference values. See

Display Operation and Configuration

for instructions on entering configuration data into the

DXN flowmeter .

*Nominal values for these parameters are included within the DXN operating system. The nominal values may be used as they

appear or may be modified if exact system values are known.

DTTN, DTTH and DTTL Transducers

The appropriate mounting configuration is based on pipe and liquid characteristics. Selection of the proper transducer

mounting method is not entirely predictable and many times is an iterative process.

Table 1

and

Table 2

contain

recommended mounting configurations for common applications. These recommended configurations may need to be

modified for specific applications if such things as aeration, suspended solids, out of round piping or poor piping conditions

are present. Use of the DXN diagnostics in determining the optimum transducer mounting is covered later in this section.
