Transit
Site Name 0.00 GPM
1/16/2013
2:18 PM
Adv Site I/O Cal System Display Meter Log
Doppler Monitor Waveform Signals Transit
Transit AGC or
Gain
1
Analysis Duration (%) 100
Auto Tx or 1/Amp 1
Automatic

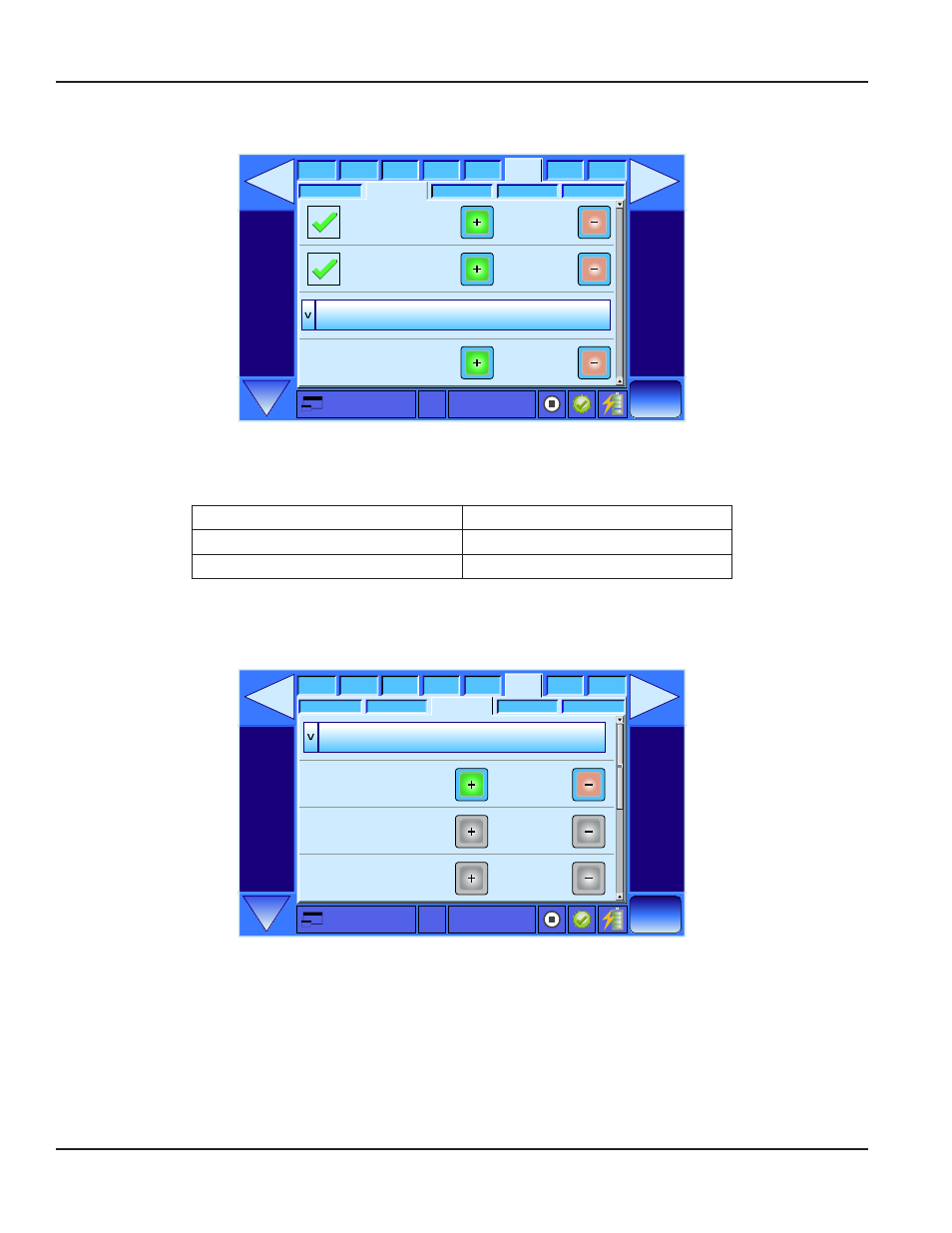

Figure 91: Advanced Transit Time Setup
Advanced Transit Time Signal Selections
Automatic Harmonic EnvPH
Harmonic NoPH Correlation MaxPH
Correlation EnvPH Correlation NoPH
Table 20: Transit Time Signal Selection
Waveform
Site Name 0.00 GPM
1/16/2013
2:18 PM
Adv Site I/O Cal System Display Meter Log
Doppler Monitor Transit Signals Waveform
Waveform Duration (%) 100
Automatic
Secondary or Width (%) 100
Nominal Frequency (%) 100
Figure 92: Advanced Waveform Selection
For almost all applications, select the Automatic waveform. In some very special circumstances, you may select an alternate
waveform at the direction of Dynasonics technical department.
