4-20 mA Current Output (Current Sourcing)
4-20 mA
Signal
0 VDC
(Ground)
Jumper

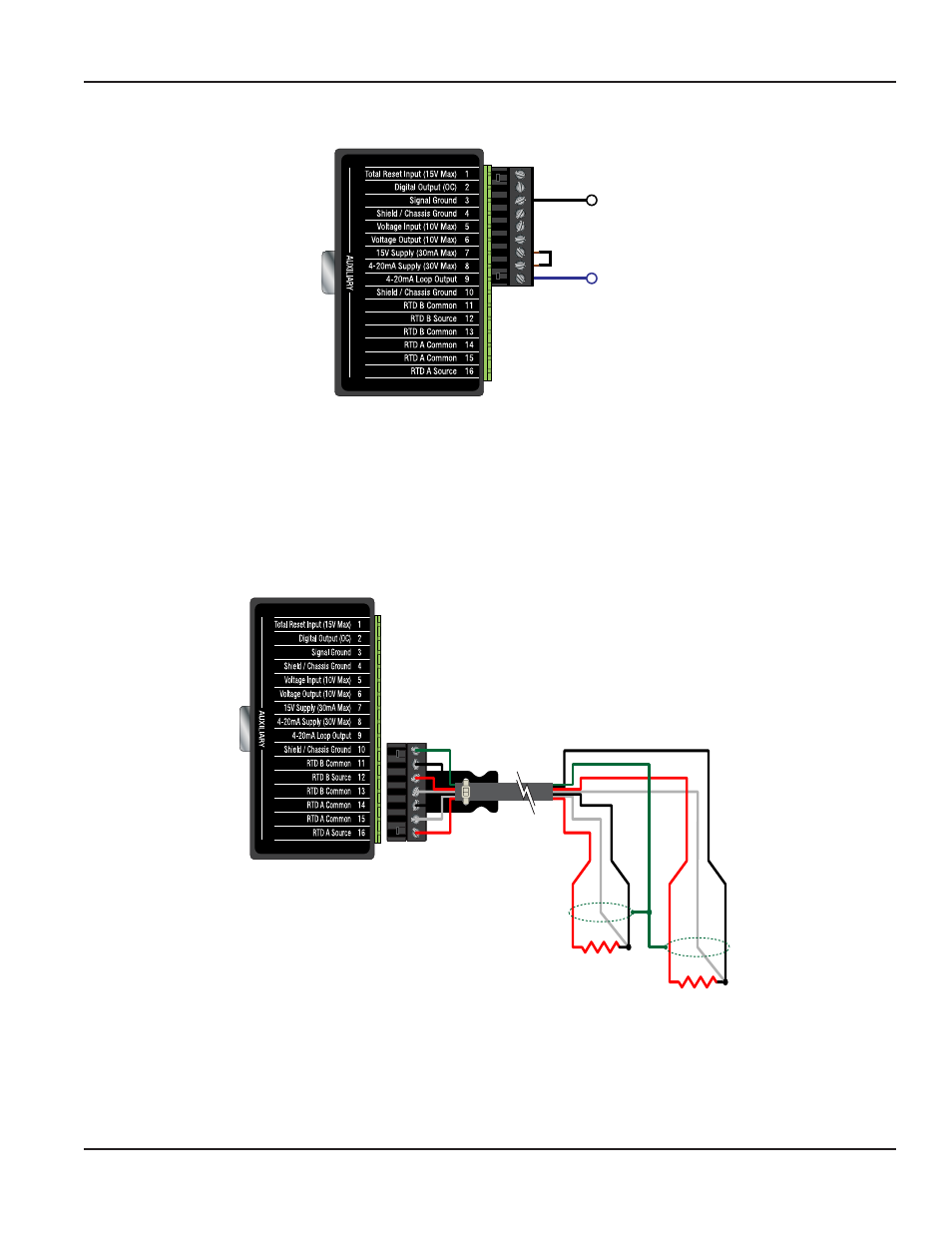

Figure 117: 4-20 mA Current Sourcing Output
The current output from the DXN can also be configured to source current. With terminals 6 and 7 jumpered together.
15 V DC Supply (30 mA Max)
The DXN has a built in power supply that can be used to power current or voltage sensors external to the meter.
4-20 mA Supply (30 V DC Max)
RTD Connections
SUPPLY LINE
RTD A
RETURN LINE
RTD B
1000 Ω
1000 Ω
Figure 118: RTD Connections
