Fluid Page
Select Site from the Group bar at the top of the screen. When the site pages appear select the Fluid page to enter information
about the type of fluid to be used.
NOTE: N
This page is also used to start the entry of information about a custom fluid.
Site Name 0.00 GPM
1/16/2013
2:18 PM
Meter Adv Cal System Display Site Log I/O
Create Liner Transit Doppler Pipe Lookup Fluid
Water-Tap Fluid Material
Sound Speed (FPS) 4911
Specific Gravity 0.996
Viscosity (cp) 1.000

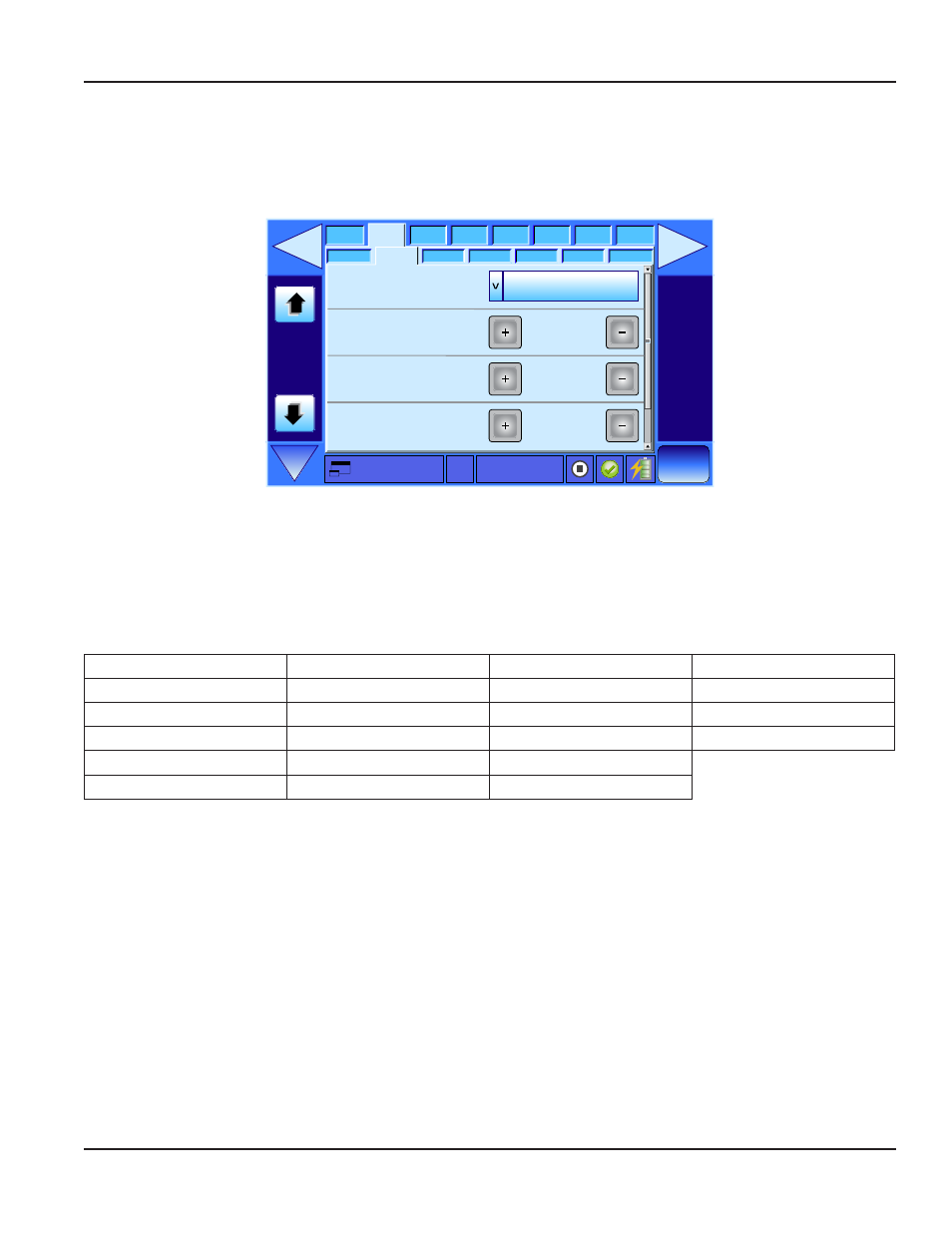

Figure 54: Water-Tap Fluid Setup
NOTE: N
Scroll bars to the right of the menu choices indicates there is more information than can be seen on one page alone.
Navigation in the fluid page is accomplished using either the Up/Down arrow keys located on the left hand side of the screen
or the scroll bar to the right of the decrement (–) buttons on the right.
Fluid Material
Choose the fluid material from the combo box drop-down.
Water - Tap Ethanol Methanol Stoddard Solvent
Water - Black Ethylene Glycol 100% Milk 4% Water Distilled
Acetone Gasoline Oil Diesel Water Sea
Ammonia Glycerin Oil Hydraulic (Petro) Custom
Benzene Isopropanol Oil Lubricating
Brine Kerosene Oil Motor (SAE 20/30)
Table 8: Fluid Material Choices
This list is provided as an example. Additional liquids are added periodically. Select the appropriate liquid from the list or
select Custom fluid if the liquid is not listed.
If a fluid material was chosen from the Fluid Material list, a nominal value for speed of sound, specific gravity, viscosity, and
specific heat capacity for that material will be automatically loaded. If actual values are known for the specific fluid system
and those values vary from the automatically loaded value, the value can be revised by selecting the Custom fluid choice and
entering the appropriate values.
