Shut Down Slider
The shutdown slider allows the DXN to be turned off without having to press and hold the physical On/Off button. To use the
shutdown slider first press the Down Arrow Button until the red Shutdown Slider appears. Touch and hold the red button on
the left side of the screen. Drag it to the right until it snaps to the right screen stop.
> > > Slide To Shut Down > > >
Drag Slider
With Finger

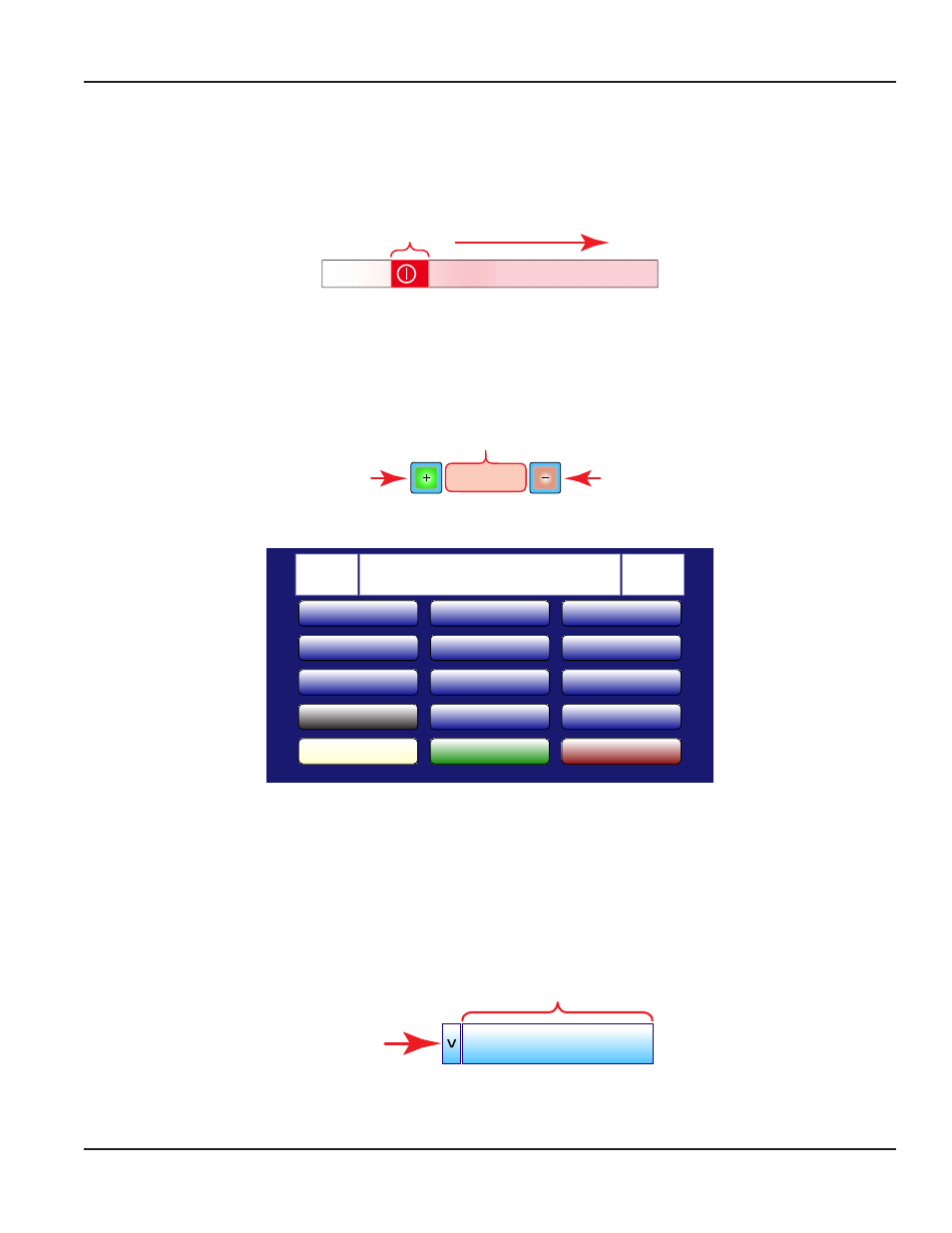

Figure 17: Shutdown Slider
Increment/Decrement Control
The + (Increment) and – (Decrement) buttons are used to enter numeric data, OR upon double-tapping the numerical value
area, a keypad will pop up allowing direct numeric data entry:
Value Display
and
Double Tap Area
Increment
(increase)
Decrement
(decrease)
625
Figure 18: Increment/Decrement Control
1
4
7
+/-
Clear
2
5
8
0
OK
3
6
9
.
Cancel
Min
0.25
Parameter Pipe OD Currently 2.375 Max
200.00
Figure 19: Numeric Input Control
Min, Max, and selected parameters are all shown. Clear starts over and cancel closes without changes. Click OK to store. The
keypad will disappear.
Combo Box
Combo boxes function as a list of alternate items that can be chosen during setup. The combo box presents as a bar with text
and a downward pointing arrow directly to the left indicating the control has a selection list.
Combo Box
Active Area
Combo Box
Indicator
Water-Distilled
Figure 20: Retracted Combo Box
When the combo box’s active area is touched the box will expand showing the available choices for that parameter.
