Master-Reset selection
Master reset performs all of the following functions:
z z Clears all ties
z z Clears all presets
z z Clears all video and audio mutes
z z Sets all input audio levels to unity gain (0 dB)
z z Sets all output volume levels to 100% (0 dB of attenuation)
NOTE: Master reset does not reset the Internet protocol (IP) settings.
Using Emulation Mode
Emulation mode allows you to set up the software without connecting the switcher. Use
emulation mode as follows:
1. Click Start > Programs > Extron Electronics > Matrix Switchers >
MATRIX Switcher + Control Pgm .
2. Choose Emulate , and click OK .
3. Choose an emulation file to open, and click OK . The file DEMO.MTX provides a sample
of a completed matrix setup. Selecting the file NEW.INI or clicking Cancel provides a
blank setup window to get you started.
4. Enter the file name under which you want to save any changes to the file, and click OK .
5. Select MPX 866 as the Matrix Model, 14 x 12 as the Video Planes; and 14 x 6 as the
Audio Planes (see figure 51). Click OK .

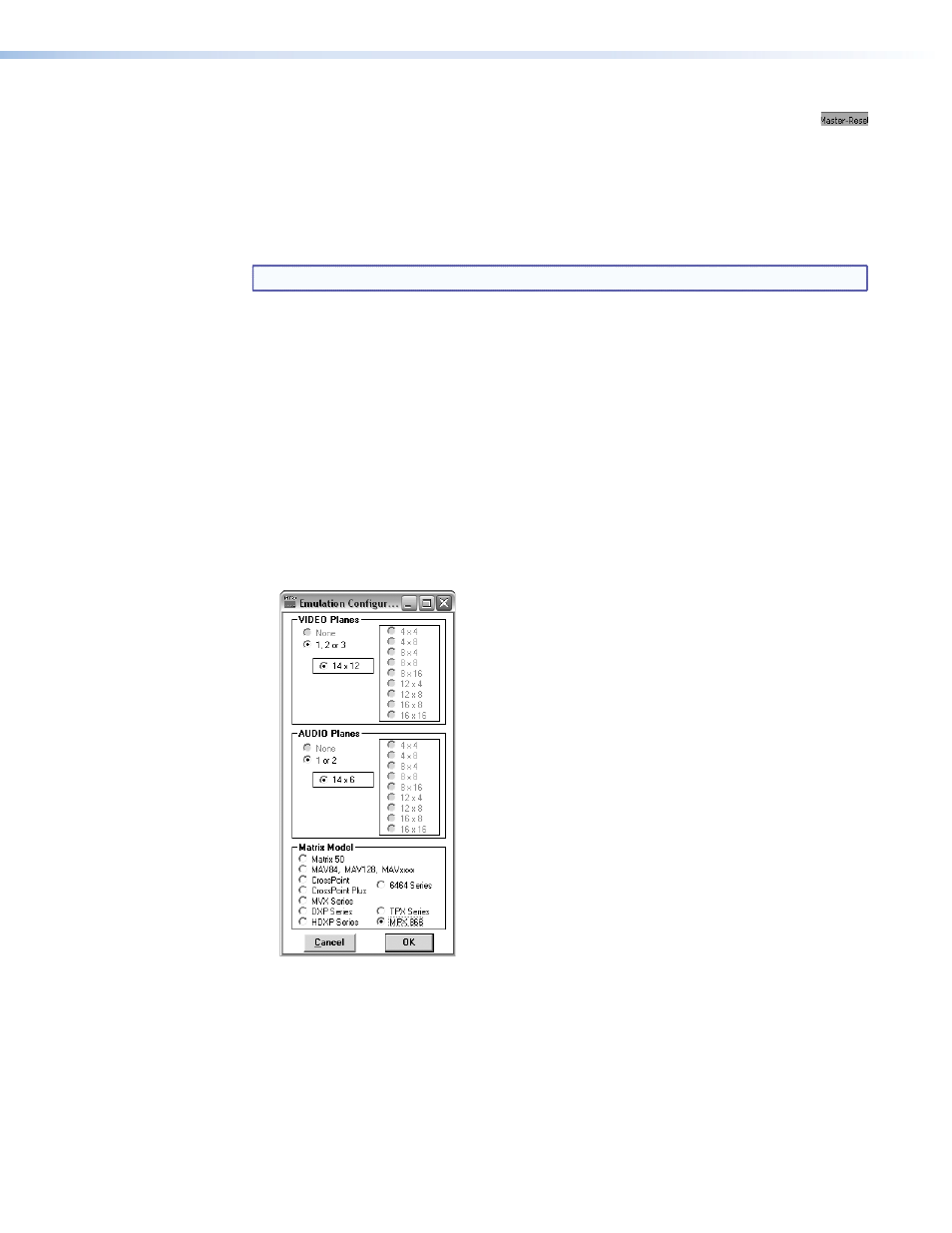

Figure 51. Emulate Configuration Dialog Box
6. Continue using the program as described on page 79 .
