Using the Matrix Switcher Control Software
Many items found in the Matrix Switchers Control Program are also accessible front panel
controls (see the“
Operation ” section) and under SIS control (see the “ Programming
Guide “ section). The Matrix Switcher + Help Program provides information on settings and
on how to use the control program, itself.
1. To run the Matrix Switchers Control Program, click Start > Programs > Extron
Electronics > Matrix Switchers > MATRIX Switcher + Control Pgm .
The Comm Port Selection window (see figure 32) appears.

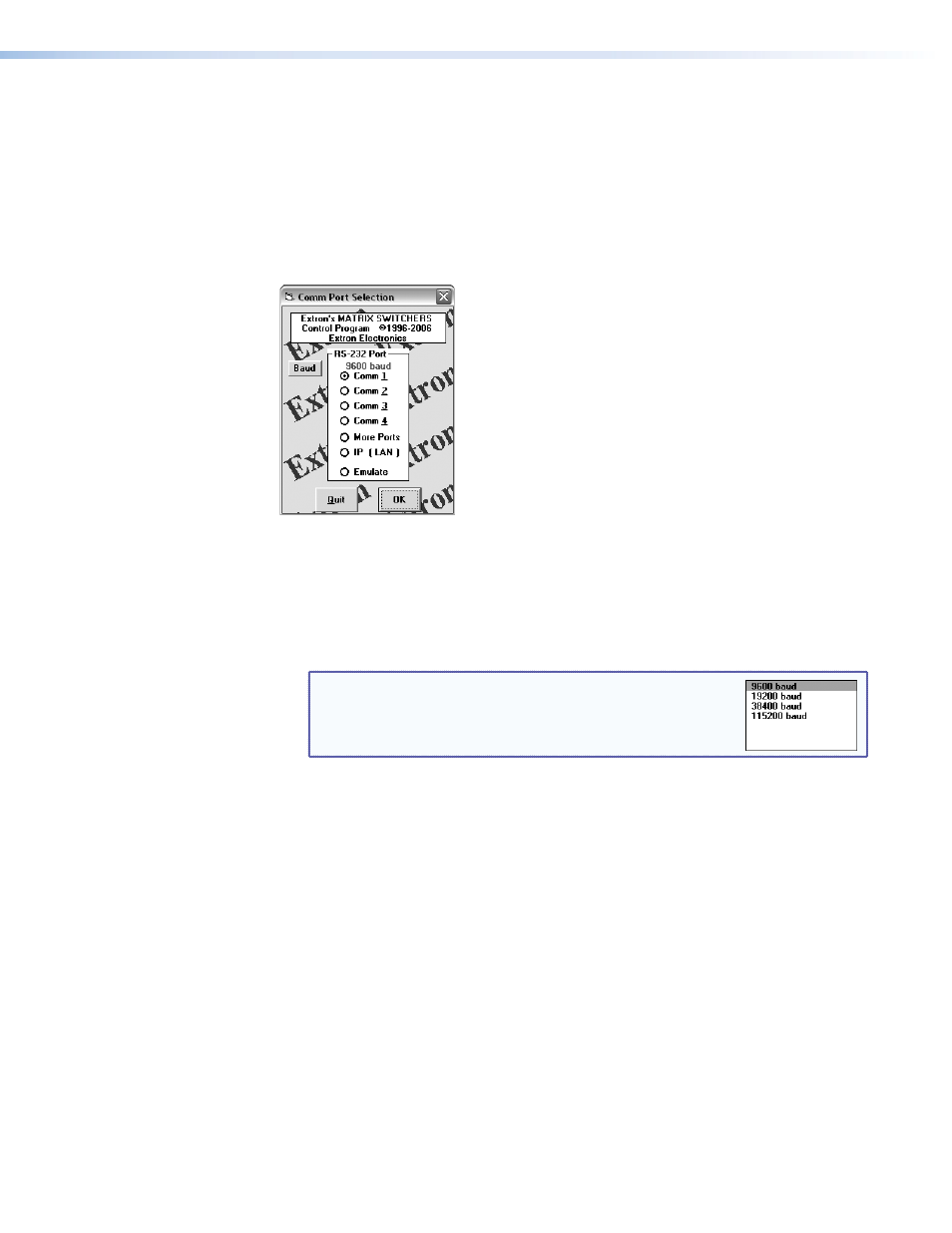

Figure 32. Comm Port Selection Window
2. Choose either the comm port that is connected to the RS-232 ports of the matrix
switcher,
IP [LAN] , or Emulate .
z z If you selected a comm port, check the baud rate displayed in the comm port
selection window. Available rates are 9600, 19200, 38400, and 115200. The
default is 9600.
NOTE: If you need to change the baud rate, click the Baud
button and double-click the desired baud rate.
Click OK . The Extron Matrix Switchers Control Program window
(see figure 34 and figure 35 ) appears, displaying the current configuration of the
attached matrix. Proceed to step 4.
z z If you selected IP [LAN] , click OK and proceed to step 3.
z z If you selected Emulate , click OK and see “ Using Emulation Mode ” on page 93.
