Example 5: Viewing video and audio, audio only, and video only ties
The following example shows the viewing of the video and audio, audio-only, and video-only
ties in the current configuration. The steps show the front panel indications that result from
your action.
NOTE: This example assumes that you have performed
,
, and
1.
Clear all selections: Press and release the Esc button. The button flashes once.
2.
Select View-only mode: Press and release the View button. The View button lights
red.
3.

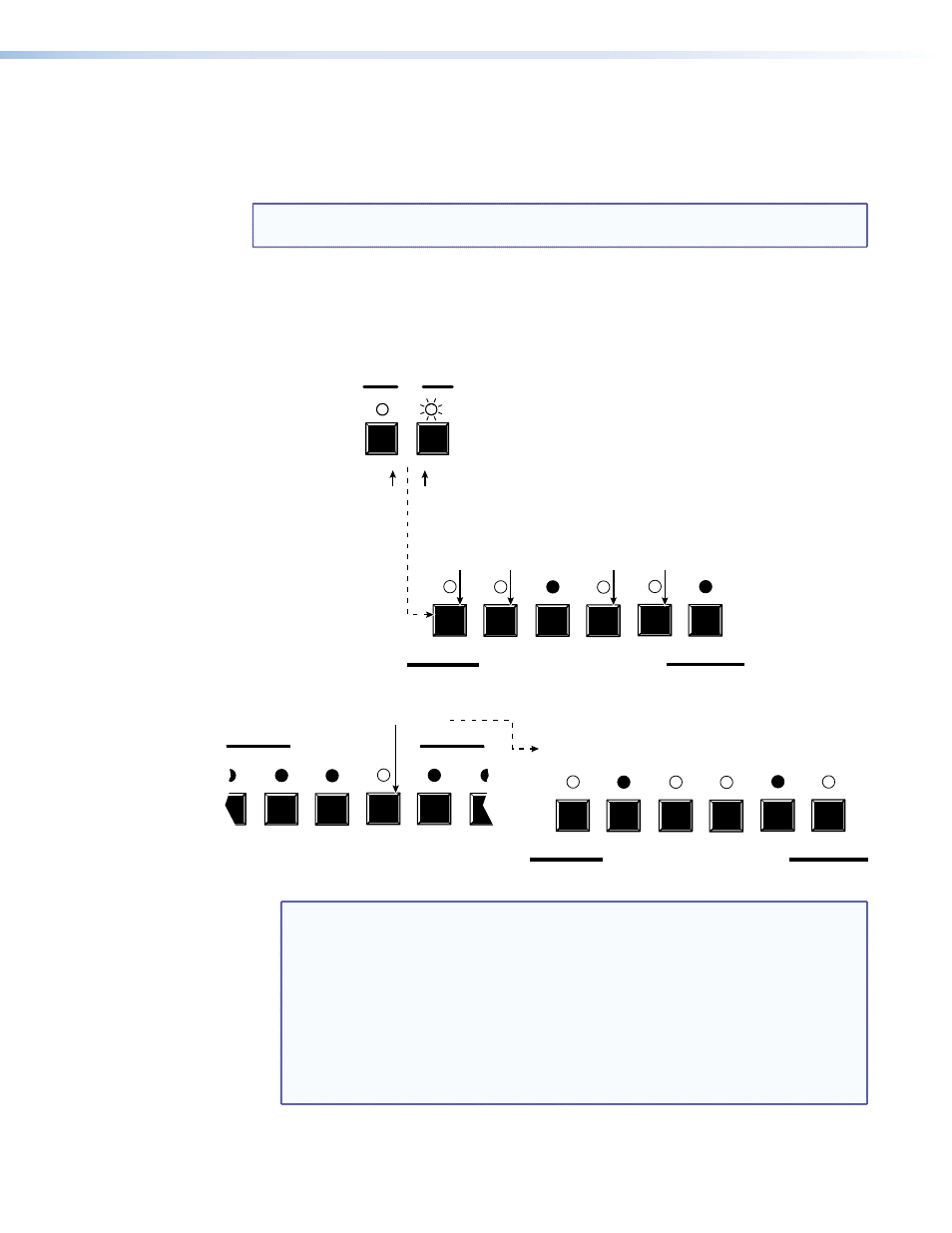

Select both video and audio for viewing: Press and release the Video button and the
Audio button.
VIDEO AUDIO
I/O
1
2
3
4
5
6
COMPUTER/AUDIO OUTPUTS
Until you select an input, the buttons for all untied outputs light.
Press the Audio button
to toggle on and off.
The LED lights or
blinks when selected.
In this example, the Audio LED blinks to indicate audio
breakaway (assuming you have performed example 1, 2, and 3).
Press the Video button to
toggle on and off.
The LED lights when
selected.
4.
Select an input: Press and release the input 5 button.
2
3
4
5
6
7
COMPUTER INPUTS
1
2
3
4
5
6
COMPUTER/AUDIO OUTPUTS
Press and release the Computer Input 5 button.
The LED lights.
The output buttons for outputs that are
not tied to input 5 are unlit.
The output buttons for outputs that
are tied to input 5 light.
NOTE: You can also view a set of ties by selecting a tied output. Demonstrate this
as follows:
1
. Note the number of a lit output button, and then press and release the
output button for an untied (unlit or background illumination) output.
2
. Observe that all of the untied outputs light.
3
. Then press the output button that you noted previously.
4
. Observe that the selected output button, the tied input button (input 5),
and the output buttons light for all of the outputs that are tied to the
input.
MPX 866 A Media Presentation Matrix Switcher • Operation
32
