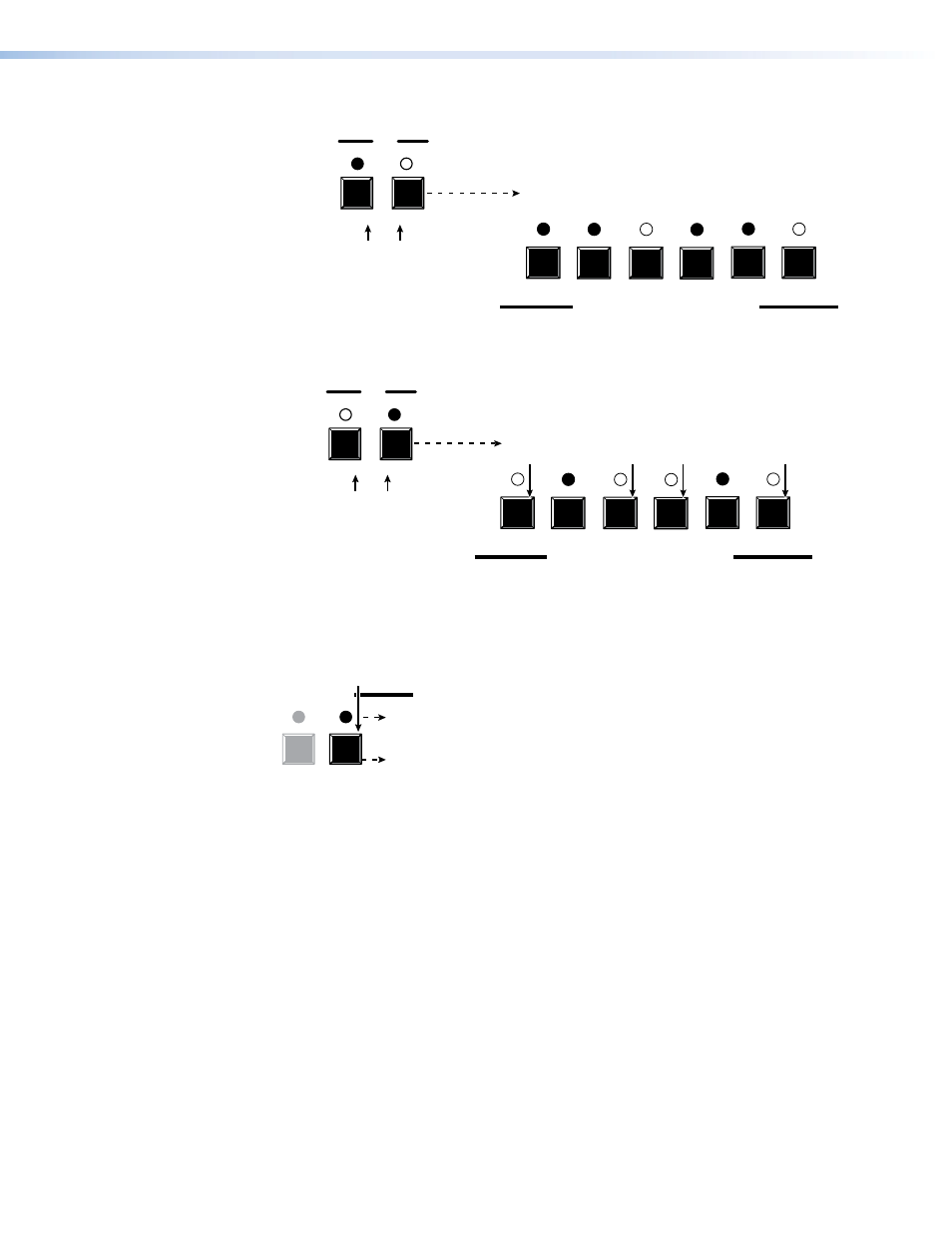

5. Deselect video: Press and release the Video button.
1 2 3 4 5 6
VIDEO AUDIO
I/O
COMPUTER/AUDIO OUTPUTS
The output buttons for audio outputs that are not tied to input 5 are unlit.
The output buttons for outputs that are tied to input 5 light to
indicate audio ties (audio breakaway).
The Audio LED remains
lit to indicate that only
audio is selected. Press the Video
button to delesect it.
The LED is unlit
when deselected.
6. Toggle the Video LED on and the Audio LED unlit: Press and release the Video
button and the Audio button.
VIDEO AUDIO
I/O
1 2 3 4 5 6
COMPUTER/AUDIO OUTPUTS
The output buttons for outputs that are not tied to input 5 are unlit.
The output buttons for outputs that are tied to input 5 light
to indicate computer video ties.
Press the Audio button
to deselect it.
The LED is unlit when
deselected. Press the Video
button to select it.
The LED lights
when selected.
If video ties are established for input 5, the output buttons for all video outputs tied to
input 5 light green. If no ties are established for input 5, all output LEDs return to unlit.
7. Exit View-only mode: Press and release the View button to exit View-only mode.
CONTROL
VIEW PRESET
Press the View button.
The View LED returns
to the unlit state.
All input LEDs and output
LEDs return to the unlit state.
MPX 866 A Media Presentation Matrix Switcher • Operation 33
