NOTE: Video format is protected when front panel Lock mode 2 is selected. You can
view the format in Lock mode 2 but you cannot change it from the front panel
(see “
Setting the Front Panel Locks (Executive Modes) ” on page 47).
If front panel Lock mode 2 is selected and you try to perform step 4, the actions
are ignored and the Enter, Video, and Audio buttons flash.

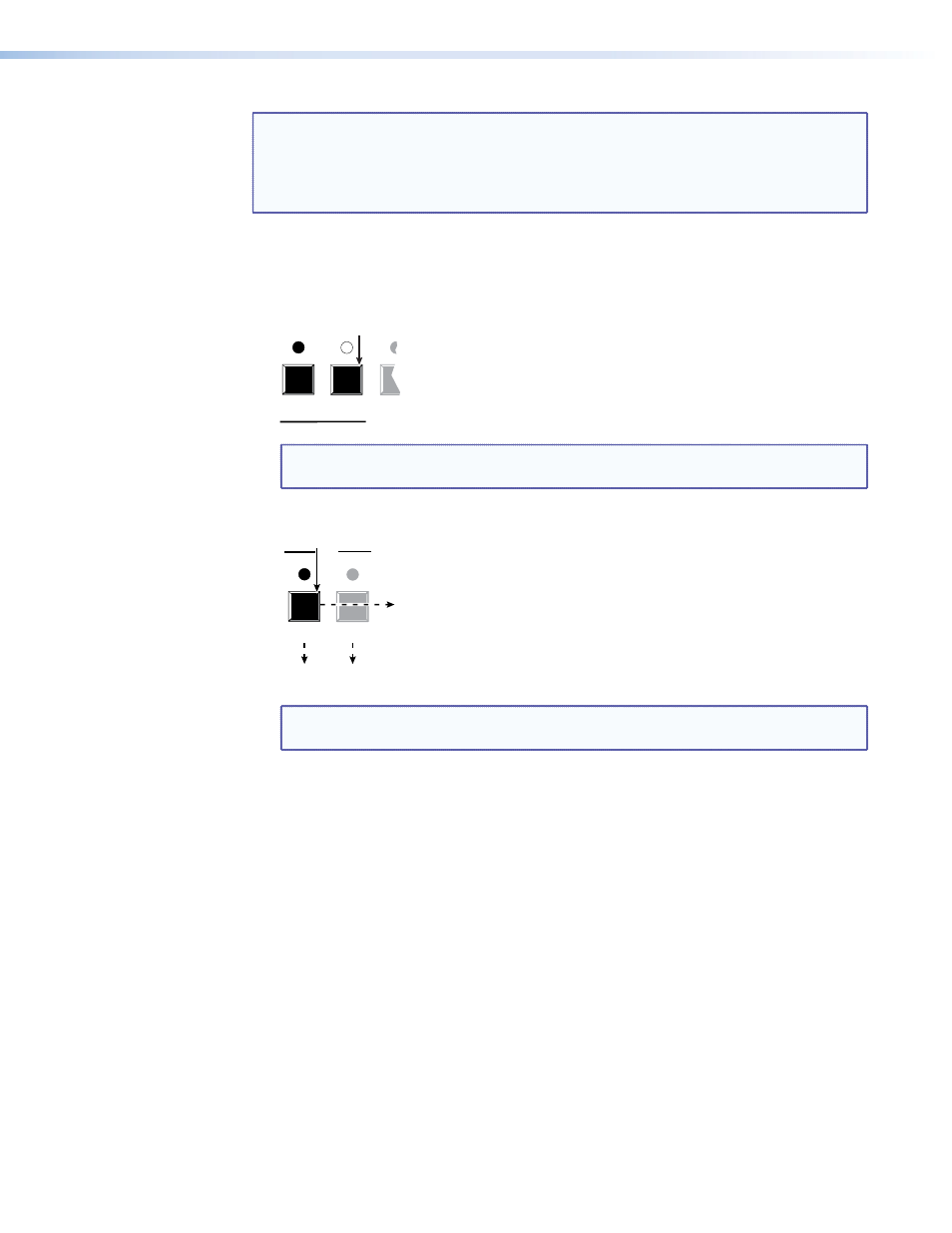

4. Change the format: Press and release the Video Output button, 7 or 8, for the desired
format.
7 8 9
VIDE
Press and release the Video Output button
to change the
video format as follows:
7 — Composite 8 — S-video
In this example, the input is set to S-video.
NOTE: If desired, select another of configurable video inputs 11 through 14 to view
or change the video format for that input.
5. Exit the Video mode: Press and release the Video button.
AUDIO VIDEO
I/O
The Video LED stops blinking and lights steadily.
The Audio button lights.
Press the Video button to exit Video mode.
All input LEDs and output LEDs
return to the unlit state.
NOTE: For the switcher to recognize the change and create a new configuration
map, you must create a new tie for the input whose format was changed.
MPX 866 A Media Presentation Matrix Switcher • Operation 40
