Selecting Lock mode 2 or toggling between mode 2 and mode 0
NOTES: • If the switcher is in Lock mode 0 or mode 1, this procedure selects mode 2.
• If the switcher is in Lock mode 2, this procedure selects mode 0 (unlocks the
switcher).
To toggle the lock on and off, press and hold the Enter button, the Video button, and the
Audio button for approximately 2 seconds (see figure 19).
VIDEO AUDIO ENTER VIDEO AUDIO ENTER
I/O
Press and hold the Enter, Video, and Audio
buttons simultaneously to turn on Lock mode 2
or to toggle between mode 2 and mode 0.
2 seconds
The Enter, Video, and
Audio LEDs blink
twice to
indicate the mode change.
Release the buttons.
I/O

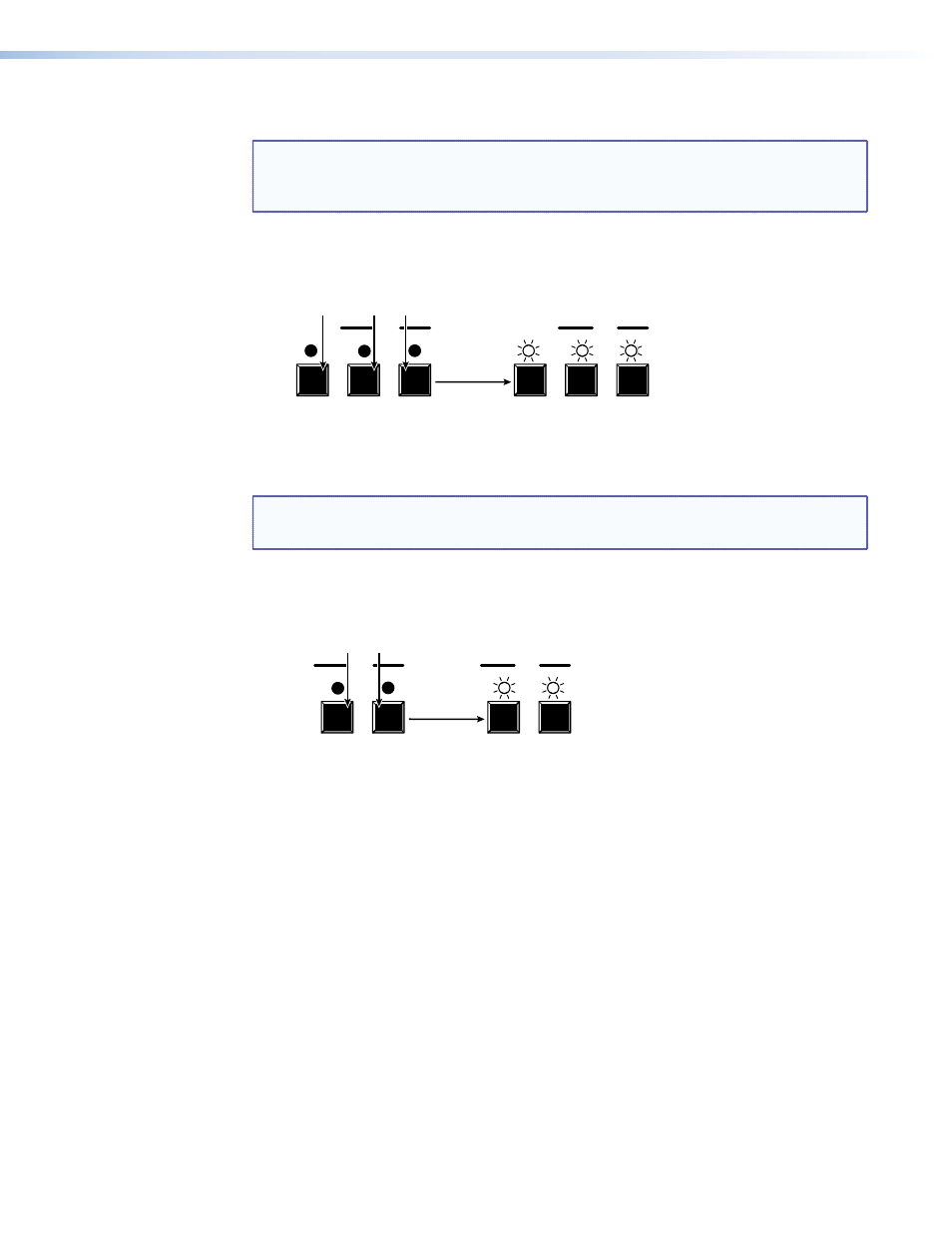

Figure 19. Toggle Front Panel Lock Between Mode 2 and Mode 0
Selecting Lock mode 2 or toggling between mode 2 and mode 1
NOTES: • If the switcher is in Lock mode 0 or mode 1, this procedure selects mode 2.
• If the switcher is in Lock mode 2, this procedure selects mode 1.
To toggle the lock on and off, press and hold the Video button and the Audio button for
approximately 2 seconds (see figure 20).
Press and hold the Video and Audio buttons
simultaneously to turn on Lock mode 2 or to
toggle between mode 1 and mode 2.
2 seconds
The Video and Audio
LEDs blink
twice to
indicate the mode change.
Release the buttons.
VIDEO AUDIO
I/O
VIDEO AUDIO
I/O
Figure 20. Toggle Front Panel Lock Between Mode 2 and Mode 1
MPX 866 A Media Presentation Matrix Switcher • Operation 48
