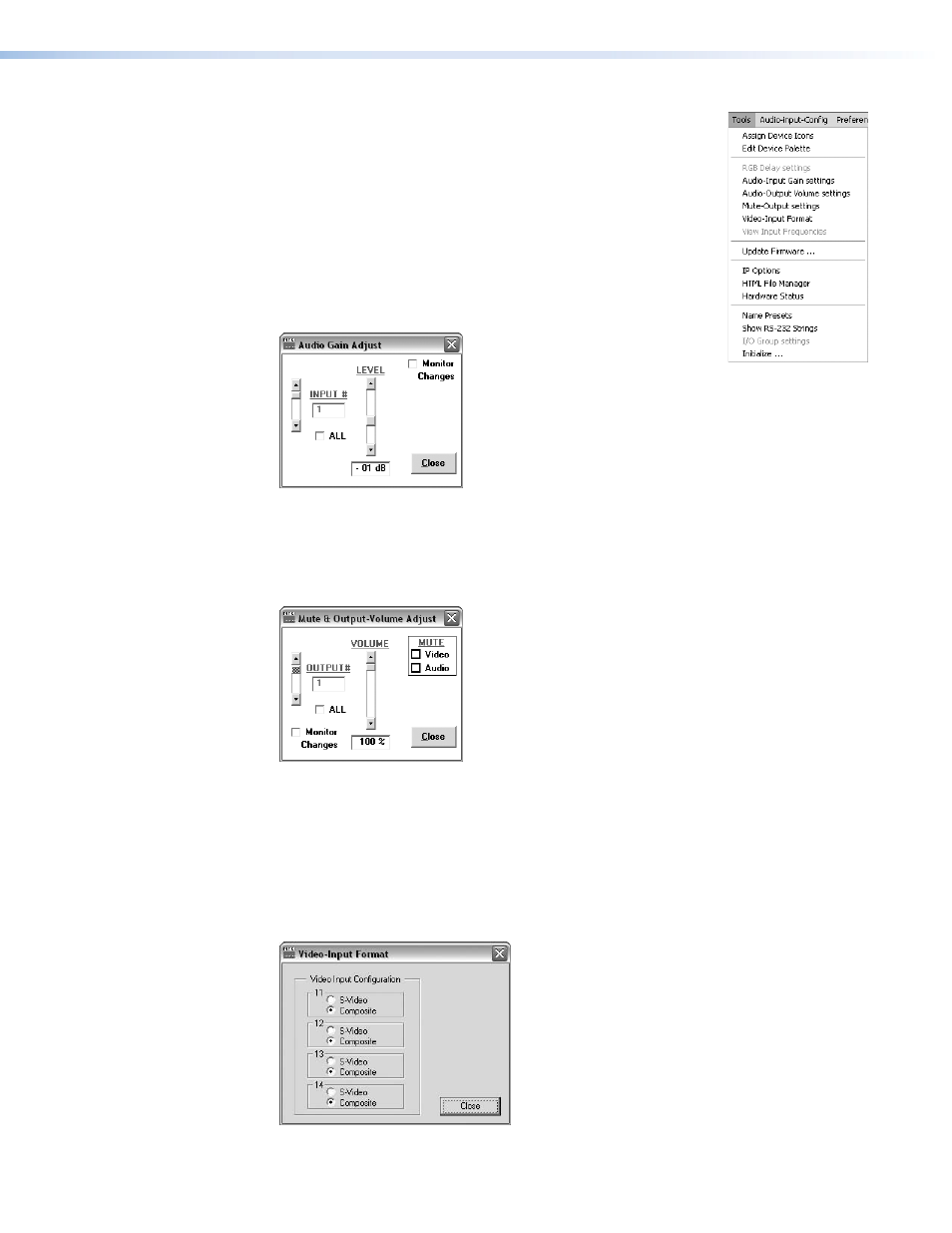

Tools menu
Assign Device Icons — Displays the complete set of input and
output device icons. You can drag any of these icons to the input
and output boxes.
Edit Device Palette — Allows you to add your own device icon
graphics.
Audio-Input gain settings — Displays the audio gain level
setting for a single input or for all inputs and allows you to
change it (see figure 44). The level is expressed as the magnitude
(number of decibels) and polarity (positive, gain; or negative,
attenuation) of the audio adjustment.
Figure 44. Audio Gain Adjust Dialog Box
Audio-Output volume settings — Displays the audio output level setting for a single
input or for all inputs and allows you to change it (see figure 45). The level is expressed
as a percentage of the input audio volume that is applied to the output; 0% is full
attenuation (audio is silent), 100% is full volume.
Figure 45. Mute and Output Volume Adjust Dialog Box
Mute-Outputs settings — Displays the Mute Adjust window (see figure 45), which
allows you to mute and unmute the video and audio output for a single output or for all
outputs. This window also displays the output volume level settings and allows you to
change them.
Video-Input Format — Displays the Mute and Output Volume window (see figure 46),
which allows you select the video format, S-video or composite video, for the four
configurable inputs in the low resolution video group, input 11 through input 14.
Figure 46. Video Input Format Dialog Box
MPX 866 A Media Presentation Matrix Switcher • HTML Operation 89
