4. Press the keyboard < Enter > key. The switcher checks to see if it is password protected.
If the switcher is not password protected, it checks and downloads the HTML pages
(proceed to step 7).
If the switcher is password protected, the switcher downloads the Enter Network
Password page (see figure 54).

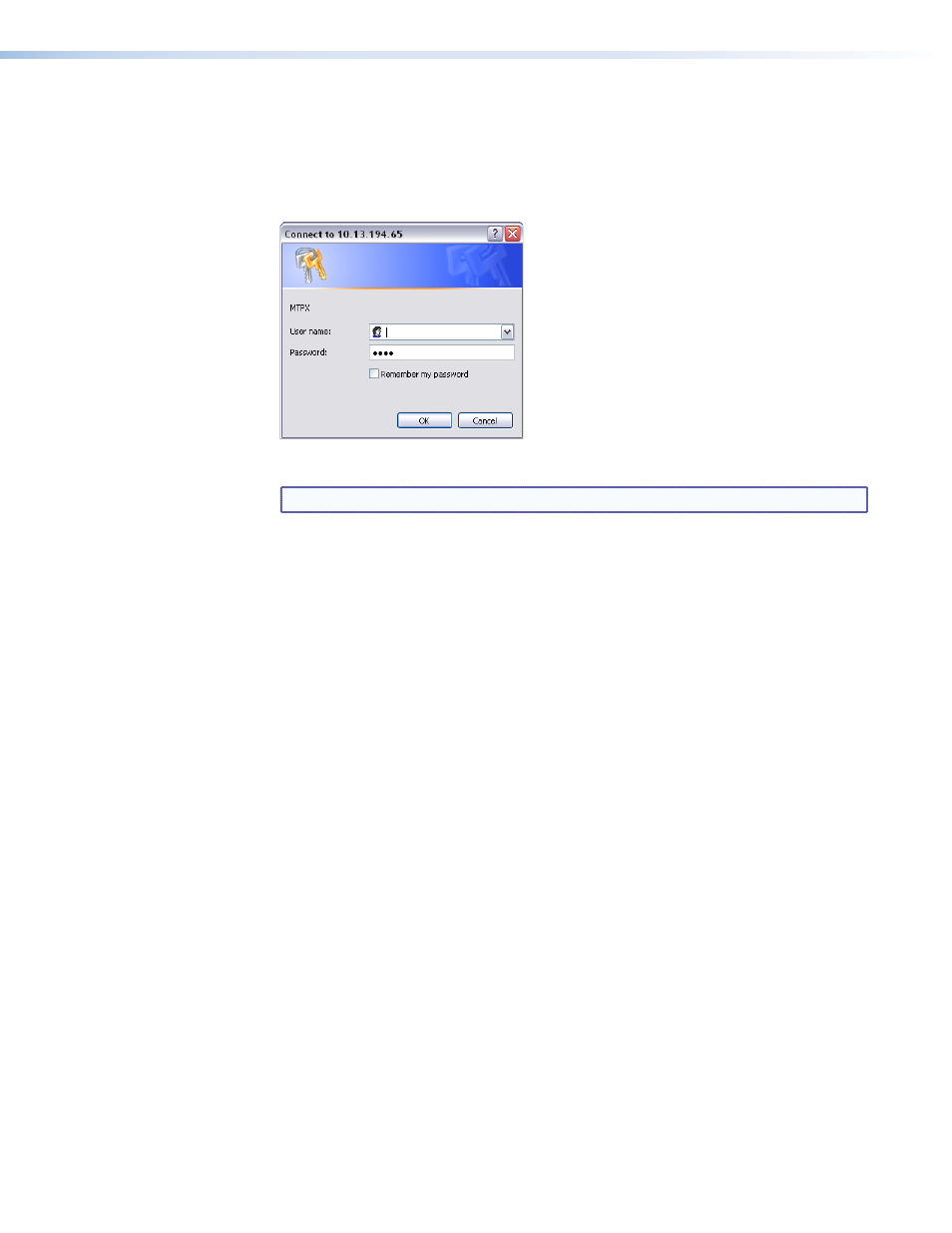

Figure 54. Enter Network Password Page
NOTE: A User name entry is not required.
5. Click in the Password field and type in the appropriate administrator or user password.
Click the
OK button.
6. The switcher checks several possibilities, in the following order, and then responds
accordingly:
z z Does the address include a specific file name, such as 10.13.156.10/file_name.html?
If so, the switcher downloads that HTML page.
z z Is there a file in the memory of the switcher that is named “index.html”?
If so, the switcher downloads “index.html” as the default startup page.
z z If neither of the above conditions is true, the switcher downloads the factory-
installed default startup page, “nortxe_index.html” (see figure 55), also known as
the System Status page.
MPX 866 A Media Presentation Matrix Switcher • HTML Operation 97
