Performing Soft System Resets (Modes 3, 4, and 5)
Perform a soft reset of the switcher as follows:
1.
Use an Extron Tweeker or other small screwdriver to press and hold the rear panel Reset
button (see figure 22) until the rear panel Reset LED and the front panel Preset and View
buttons blink once (events reset), twice (IP settings reset), or three times (absolute reset).
2.
Release the Reset button and then immediately press and release the Reset button
again. Nothing happens if the second momentary press does not occur within 1 second.
RESET
LAN
CT LINK
RESET
LAN
CT LINK
RESET
LAN
CT LINK
Events
Reset
Press and
hold
the Reset button.
Release, then
immediately
press and
hold.
3 seconds
Reset LED
flashes
once.
Release the
Reset button.
Reset LED
flashes
three
times.
IP Settings
Reset
Press and
hold
the Reset button.
Release, then
immediately
press and
hold.
6 seconds
Reset LED
flashes
twice.
Release the
Reset button.
Reset LED
flashes
three
times.
Absolute
Reset
Press and
hold
the Reset button.
Release, then
immediately
press and
hold.
9 seconds
Reset LED
flashes
three
times.
Release the
Reset button.
Reset LED
flashes
three
times.

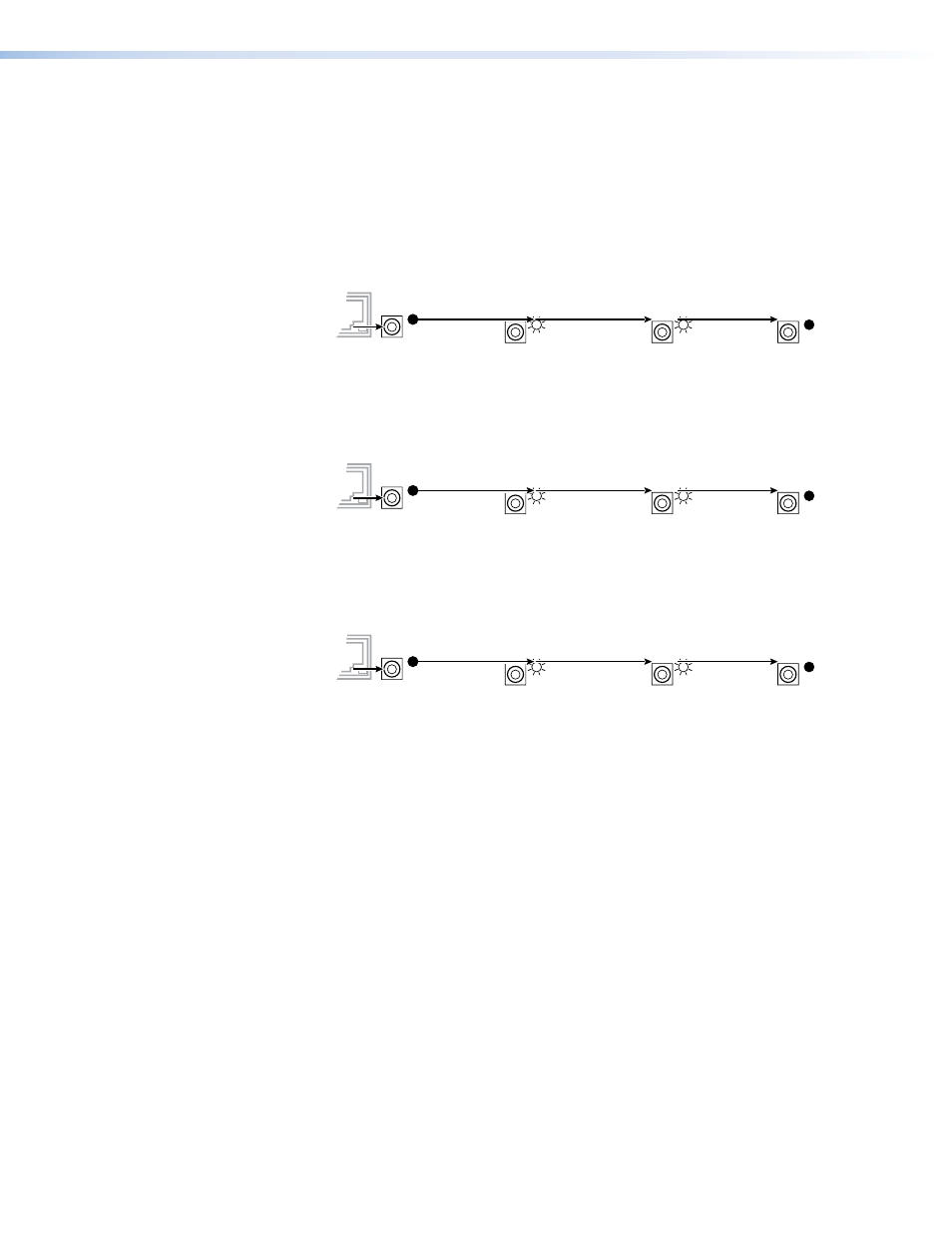

Figure 22.
Soft System Resets
MPX 866 A Media Presentation Matrix Switcher • Operation
