Audio Input Configuration selection
Displays the Configure Audio Options window, which allows you to make audio input gain
and attenuation adjustments to all inputs, either individually or all at once, from one window
(see figure 48).

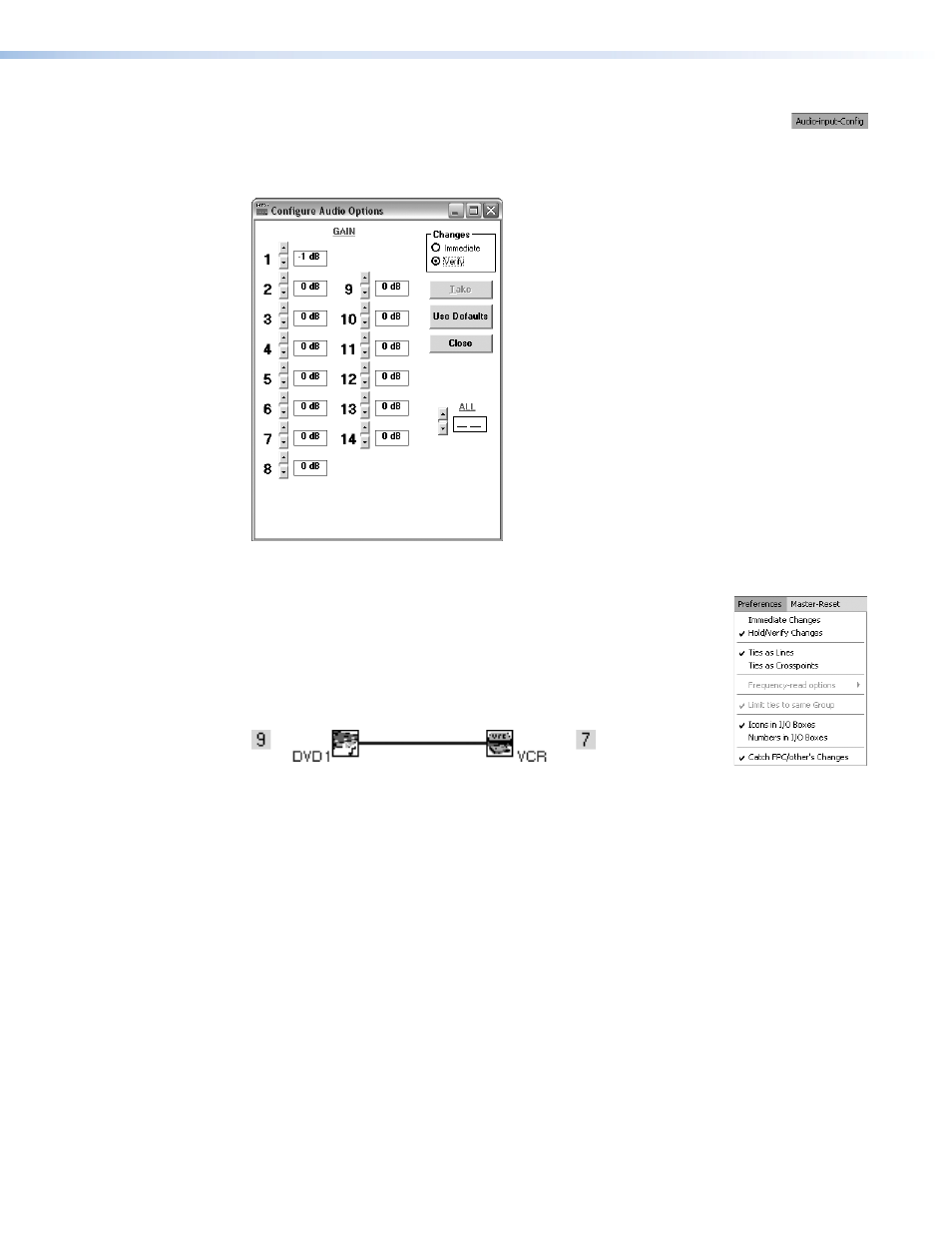

Figure 48. Configure Audio Options Dialog Box
Preferences menu
Immediate Changes — Causes configuration changes to take effect
immediately.
Hold/verify Changes — Delays implementation of configuration
changes until the Changes – Take button is pressed.
Ties as Lines — Displays ties as lines (see figure 49).
Figure 49. Ties Shown as Lines
MPX 866 A Media Presentation Matrix Switcher • HTML Operation 91
