OutnnVolxx]
The switcher initiates the
Vol message when a front panel output audio volume change has
occurred. nn is the input number and xx is the volume level.
Vmt
nn • x ]
The switcher initiates the Vmt message when a video output mute is toggled on or off from
the front panel. “nn” is the output number, • is a space, and “x” is the mute status: 1 = on,
0 = off.
Amtnn*x]
The switcher initiates the
Amt message when an audio or RS-232 output mute is toggled
on or off from the front panel. nn is the output number and x is the mute status: 1= on,
0 = off.
Exen]
The switcher initiates the
Exe message when the front panel Lock mode is changed from the
front panel. n is the Lock mode: 0, 1, or 2. See “ Setting the Front Panel Locks (Executive
Modes “ for Lock mode definitions.
Switcher Error Responses
When the switcher receives a valid SIS command, it executes the command and sends a
response to the host device. If the unit is unable to execute the command because the
command is invalid or it contains invalid parameters, the unit returns an error response to
the host. The error response codes are:
E01 — Invalid input channel number (too large)
E10 — Invalid command
E11 — Invalid preset number
E12 — Invalid output number (too large)
E13 — Invalid value (out of range)
E14 — Illegal command for this configuration
E17 — Timeout (caused only by direct write of global presets)
E24 — Privilege violation (Ethernet, Extron software only)
Using the Command and Response Tables
The command and response table begins on page 65 . Either uppercase or lower case letters
are acceptable in the command field except where indicated for the audio level (gain and
attenuation) commands. Symbols are used throughout the table to represent variables in the
command and response fields. Command and response examples are shown throughout the
table. The ASCII to HEX conversion table below is for use with the command and response
table.

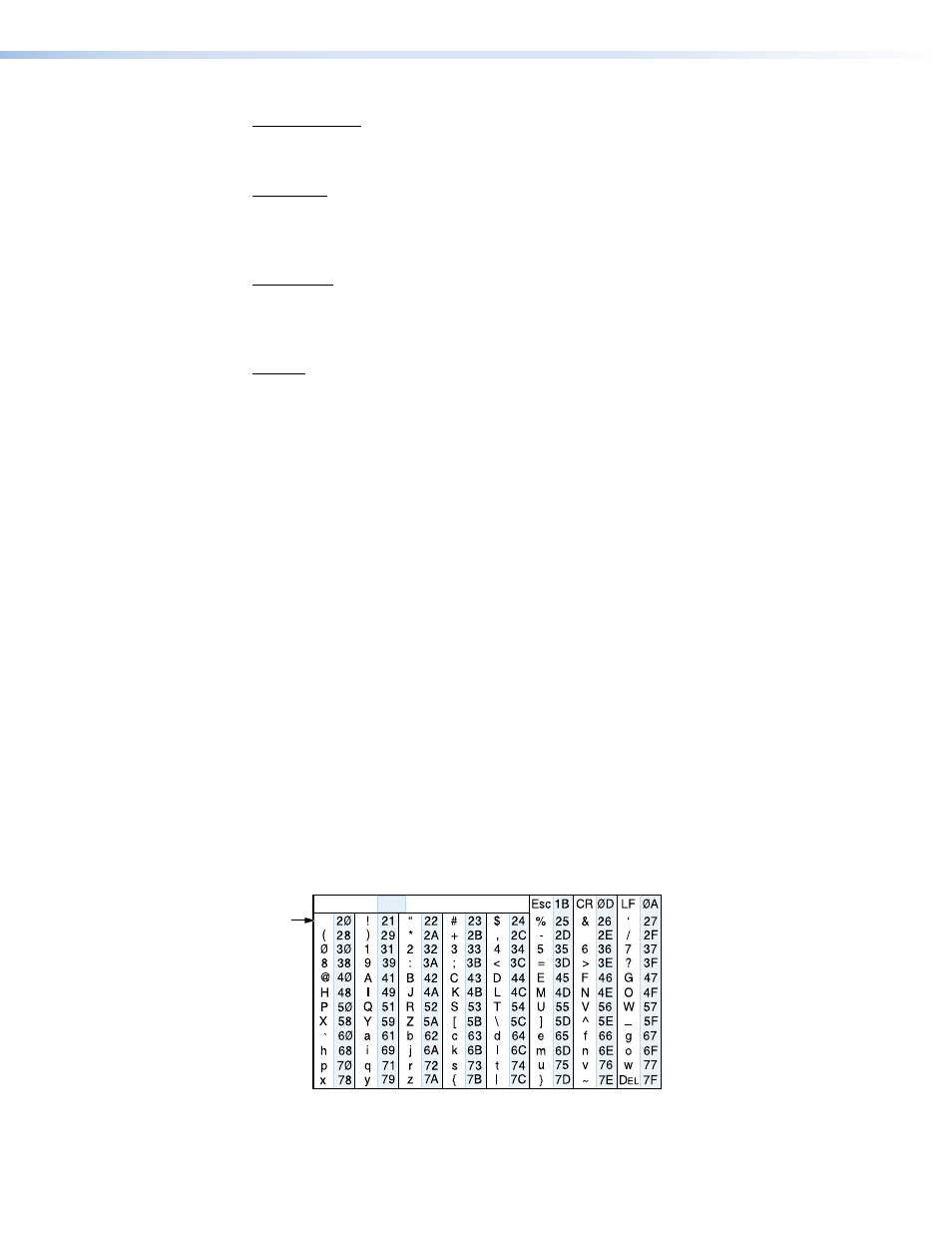

ASCII to Hex Conversion Table
•
Space
MPX 866 A Media Presentation Matrix Switcher • Programming Guide 63
