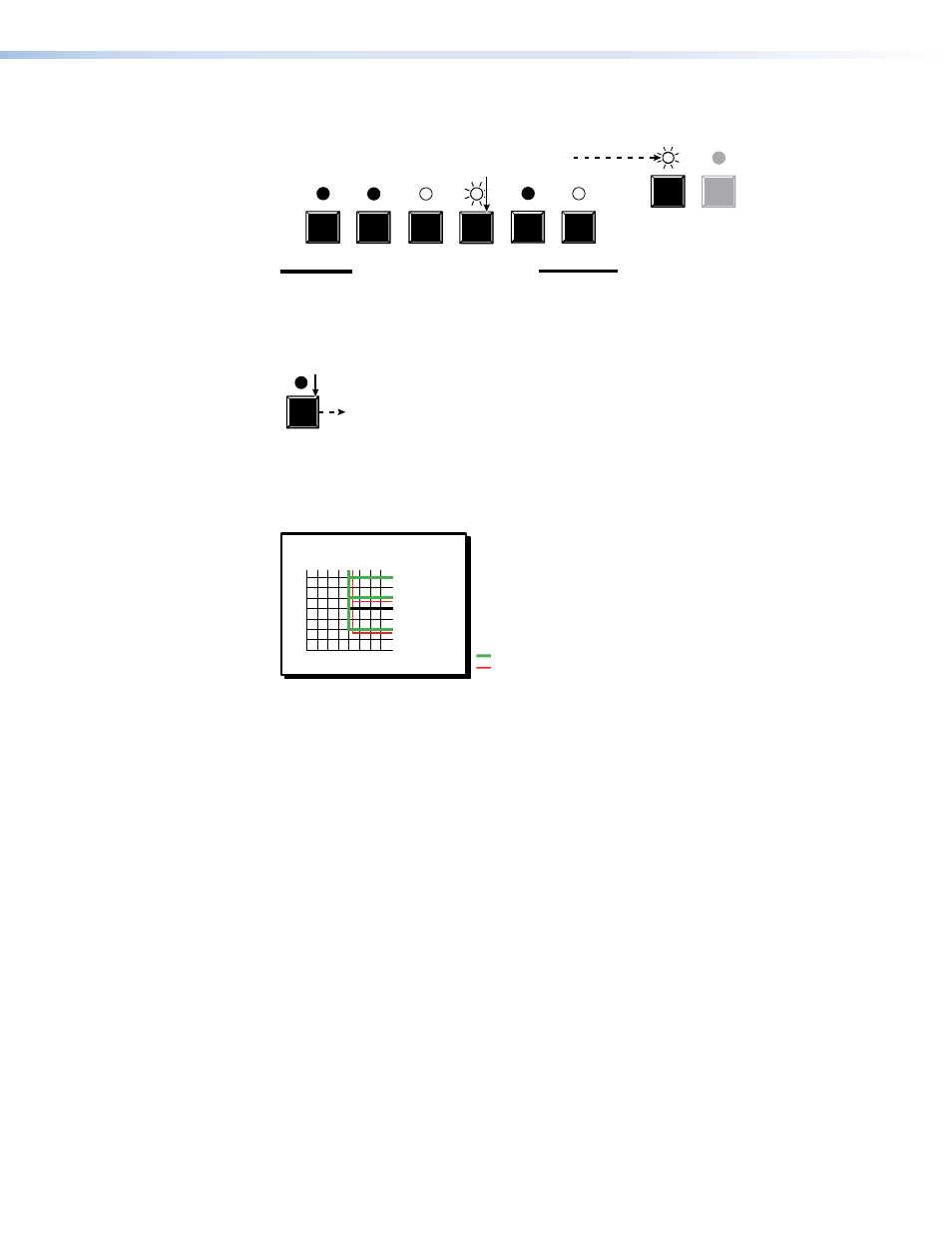

4. Select the output: Press and release the output 4 button.
1 2 3 4 5 6
COMPUTER/AUDIO OUTPUTS
ENTER PRESET
Press and release the Computer/Audio Output 4 button.
The LED blinks to indicate that the selected computer
video input will be untied.
The Enter LED blinks
to indicate the need to
confirm the change.
5. Confirm the change: Press and release the Enter button.
ENTER
The Enter LED and all input LEDs and
output LEDs return to the unlit state.
Press the Enter button to confirm
the configuration change.
The current configuration (see figure 14) is now:
z z
Video — Input 5 video tied to output 1, output 3, output 4, and output 6
z z
Audio — Input 5 audio tied to output 3 and output 6
Input
Output
1
3
4
6
5
Video
Audio
Figure 14. Example 3, final configuration, audio switcher
MPX 866 A Media Presentation Matrix Switcher • Operation 28
