Video Input Settings Page
Access the Video Input Settings page (figure 58) by clicking the Video Input Settings
link on the System Settings page.
Low resolution video inputs 11 through 14 are individually configurable as either composite
video or S-video. View and change this variable by clicking in the desired radio button for
the input that needs to be changed.
Select Passwords
Refresh
System Settings
Select Firmware Upgrade

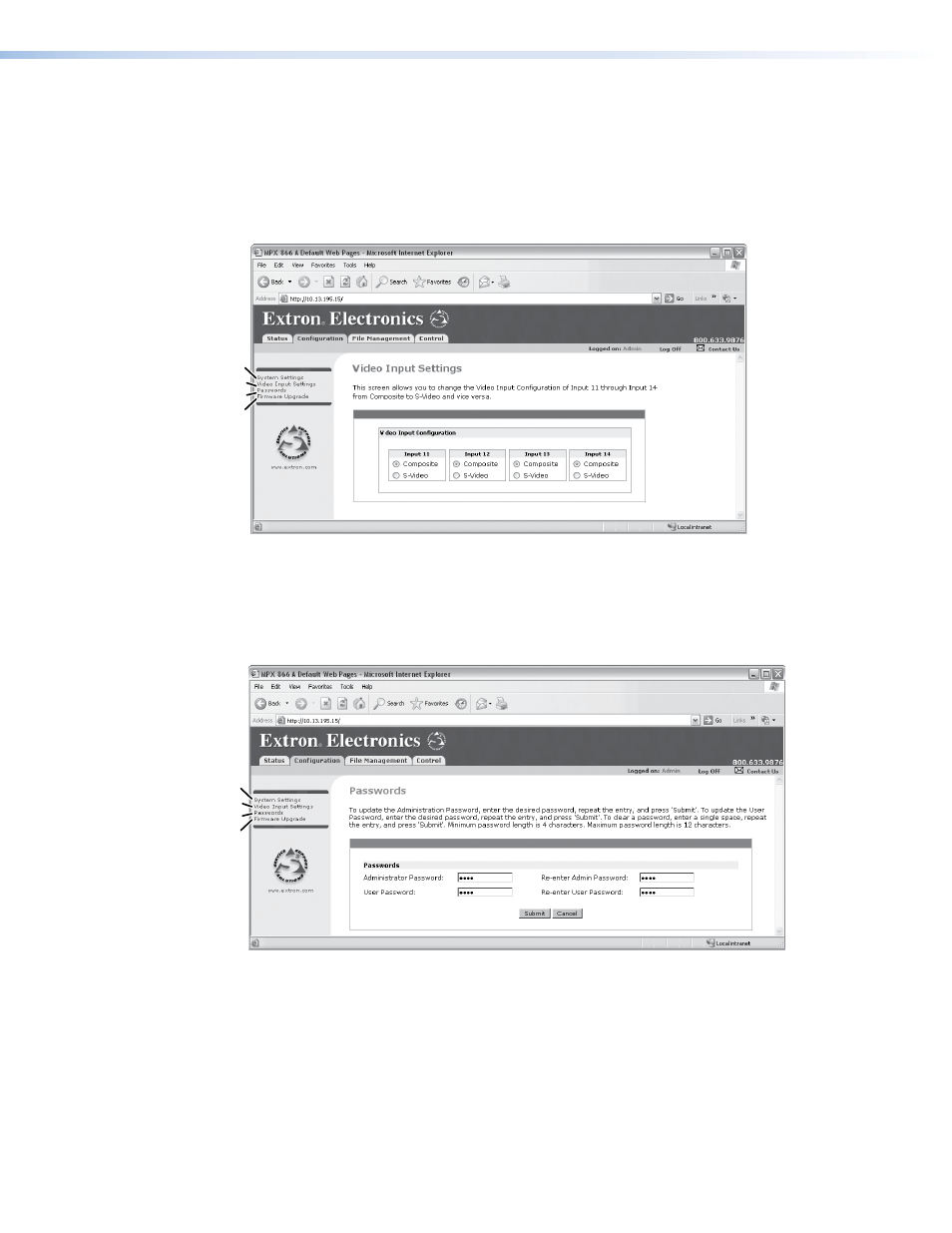

Figure 58. Video Input Settings Page
Passwords Page
Access the Passwords page (see figure 59) by clicking the Passwords link on the System
Settings page.
Refresh
Video Input Settings
System Settings
Select Firmware Upgrade
Figure 59. Passwords Page
The fields on the Passwords page are for entering and verifying administrator and user
passwords. Passwords are case sensitive and are limited to 12 upper-case and lower-case
alphanumeric characters. Each password must be entered twice: once in the
Password
field and then again in the Re-enter Password field. Characters in these fields are
masked by asterisks (*****). If you do not want to password protect an access level, leave
the
Password field and the Re-Enter Password field blank. After entering the desired
password in both fields, click the Submit button.
