Control Tab
Set and View Ties Page
You can create ties on the Set and View Ties page (see figure 63). Access the Set and View
Ties page by clicking the
Control tab.
Global Presets
Video & Audio Settings
Refresh

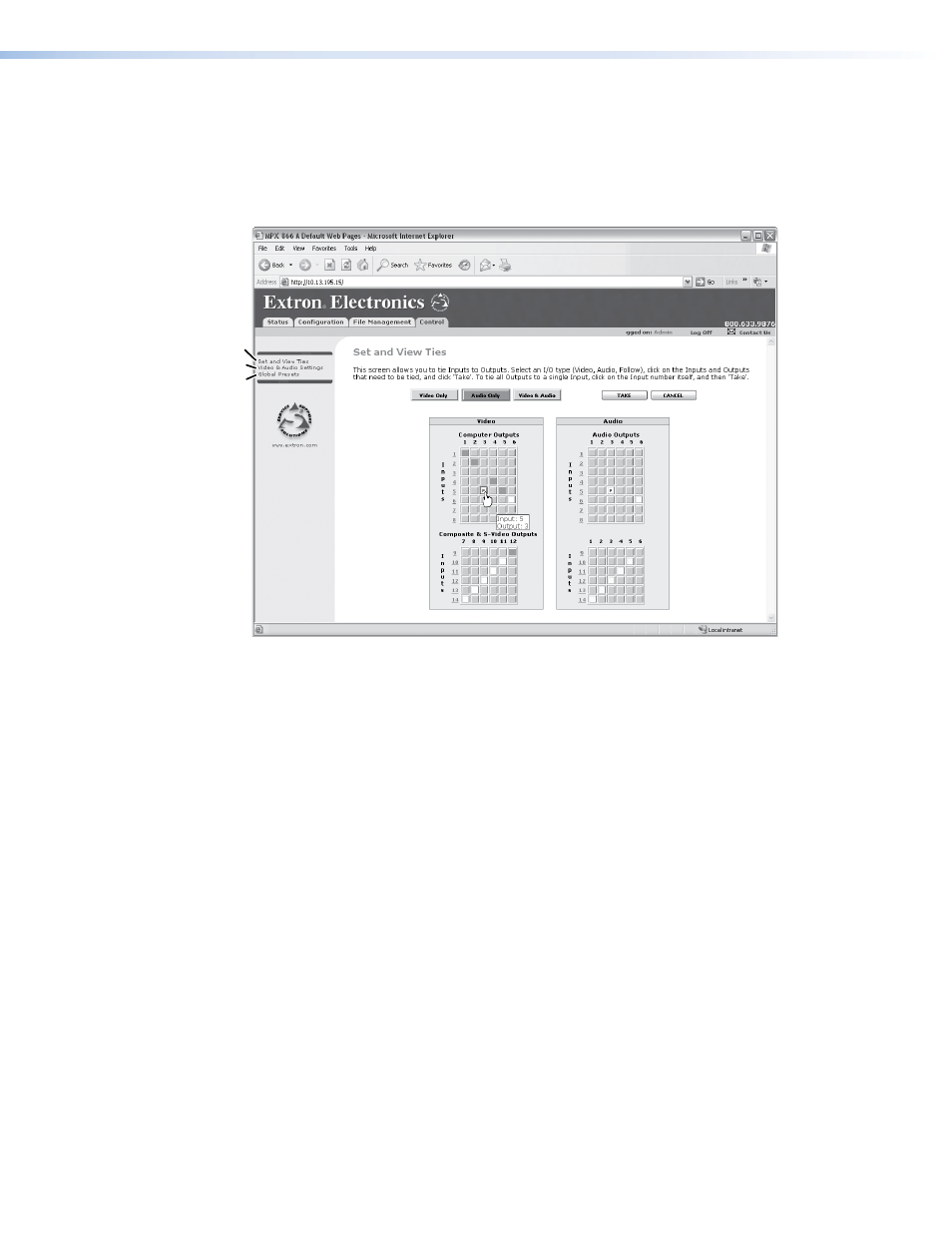

Figure 63. Set and View Ties Page
The page consists of a matrix of input (rows) and output (columns) selection buttons of four
different colors:
z z The amber buttons indicate video and audio ties.
z z The green buttons indicate video only ties.
z z The red buttons indicate audio only ties.
z z The gray buttons indicate no ties.
MPX 866 A Media Presentation Matrix Switcher • HTML Operation 106
