Ties as Crosspoints
— Displays ties as a matrix of inputs and outputs (see figure 50).
Ties that have been made are indicated as amber or green boxes. Ties that will take
effect when you click the
Take
button are indicated by +. Ties that will be broken when
you click the
Take
button are indicated by –.

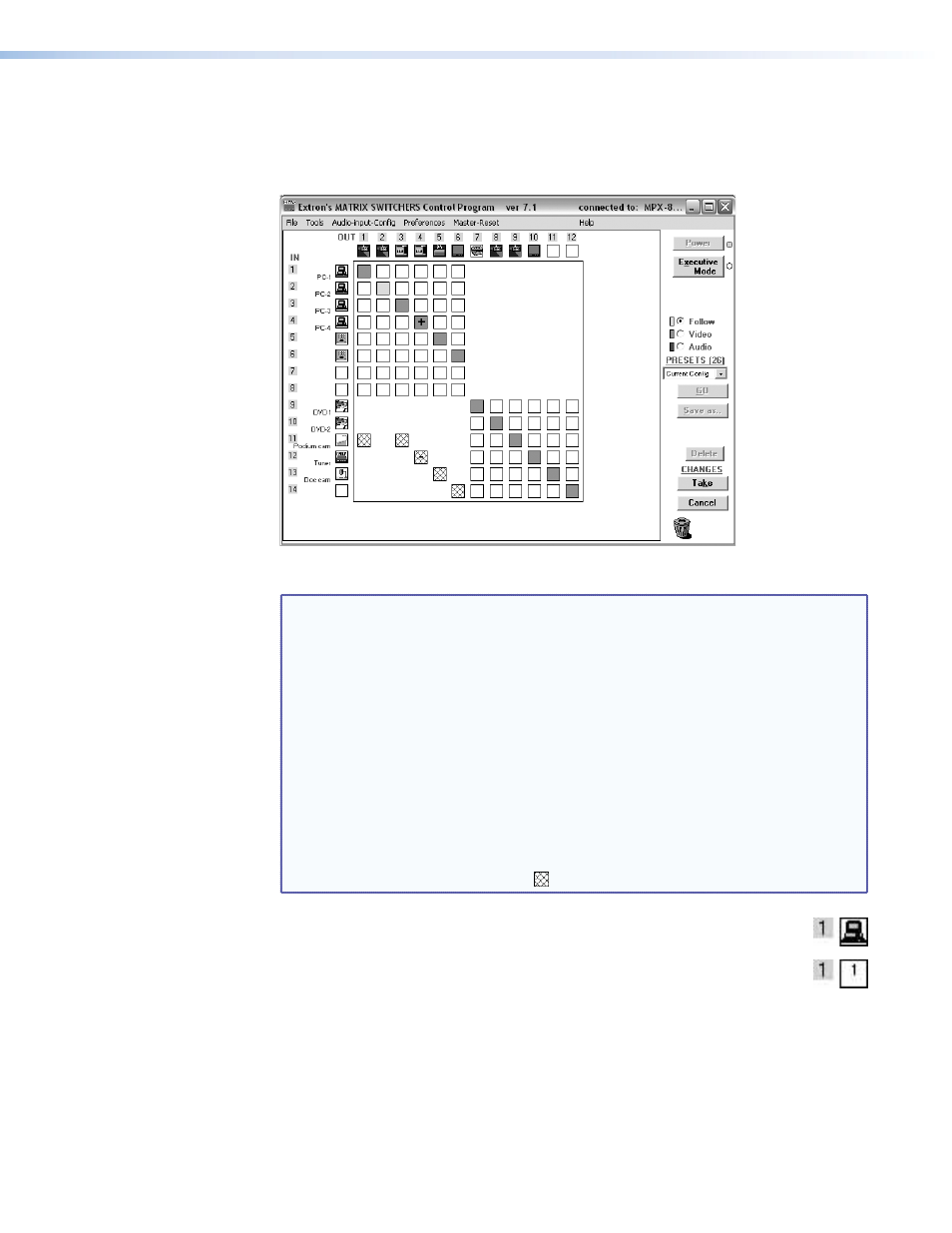

Figure 50.
Ties Shown as Crosspoints
NOTES:
•
Video ties can only be made within the following groups, never
between the groups:
•
z
The computer video group (inputs 1 through 8 and outputs 1
through 6)
•
z
The low resolution video group (inputs 9 through 14 and outputs 7
through 12)
• Audio can be tied only to outputs 1 through 6. If you make a video and
audio tie from the low resolution video group (inputs 9 through 14),
audio is automatically redirected to tie it and output in the computer
subgroup (outputs 1 through 6).
• See “
,” on page 24 to identify the outputs to
which audio inputs are tied.
• When audio is broken away between groups, the audio tie is shown in
crosshatched red boxes ( ).
Icons in I/O Boxes
— Erases any numbers in the I/O boxes in the
Control
Program
window (see
). You can place icons in the boxes.
Numbers in I/O Boxes
— Erases any icons in the I/O boxes in the Control
Program window and fills each box with the associated input or output
number.
Catch FPC/others changes
— When checked, sets the switcher to report all
configuration and setting changes to the serial port or Ethernet connection that turned
this selection on. These reports allow the Matrix Switchers Control Program to track
the changes that occur in the configuration and settings of the switcher, whether
commanded via the front panel, either serial port, or the Ethernet port.
