Performing a System Reset from the Front Panel

The front panel reset is identical to the

EZXXX}

SIS command described in the

Programming Guide section. A system reset:

Clears all ties and presets

Clears all video and audio mutes

Sets all input audio levels to unity gain (+0 dB)

Sets all output volume levels to 100% (0 dB of attenuation).

Reset the switcher to the factory default settings by pressing and holding the Video button
and Audio button while you apply AC power to the switcher (see figure 21).

NOTE: System reset does not reset the Internet protocol (IP) settings or replace user-

installed firmware.

Power

AUDIO

VIDEO

I/O

Press and

hold the Video and Audio buttons

while you apply power to the switcher.

The switcher’s LEDs and then go dark.
Continue to hold the Video and Audio buttons until all input and output
LEDs return to the unlit state and the Video and Audio LEDs turn on.

Release the Video and Audio buttons.

— and —

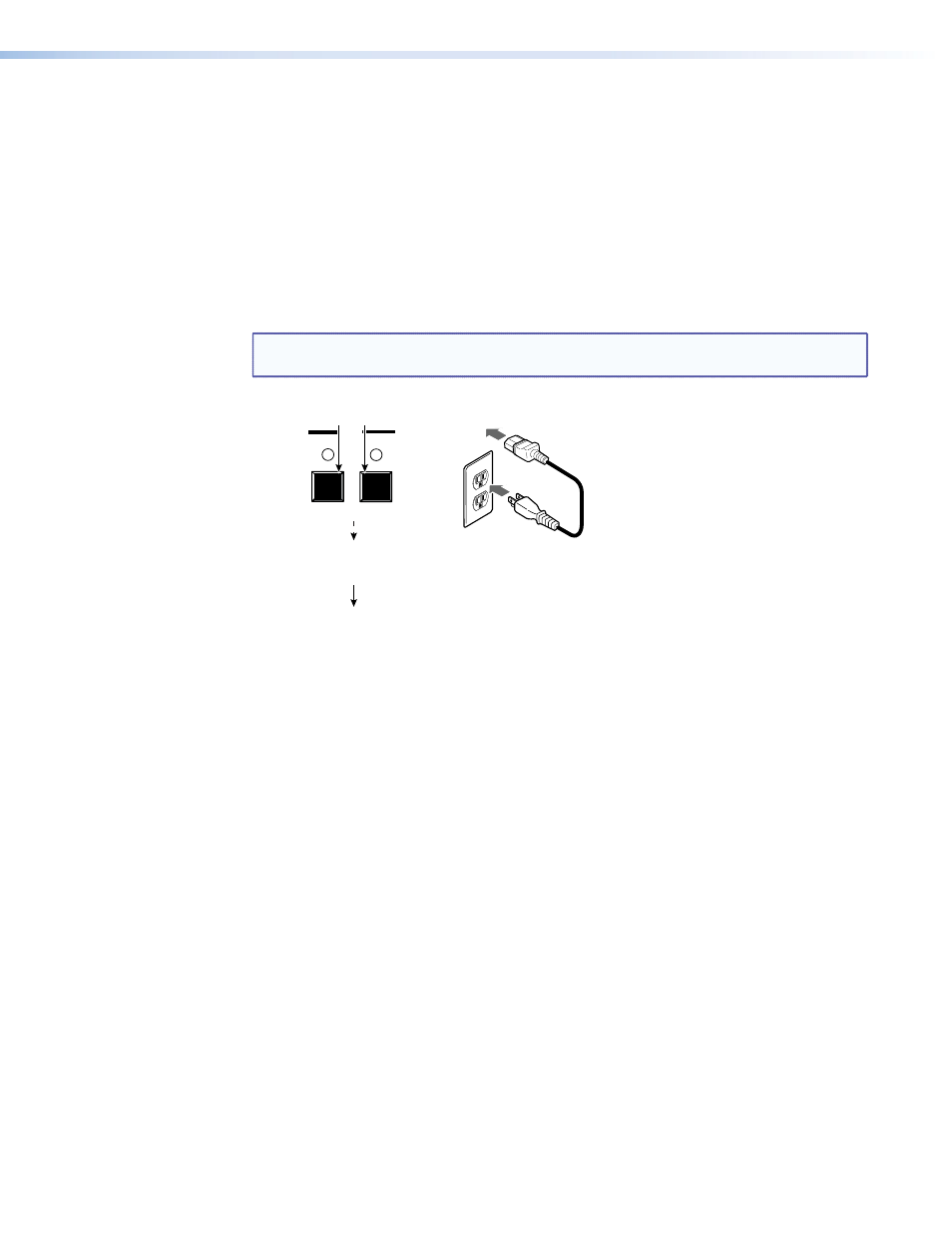

Figure 21.

System Reset
