RGB and Audio Settings Page
The RGB and Audio Settings page provides a way to set the input audio gain and
attenuation, set the output volume, and mute and unmute all video and audio outputs.
Access the RGB and Audio Settings page (see figure 64) by clicking the RGB & Audio
Settings link on the Control page.
Global Presets
Refresh
Set & View Ties

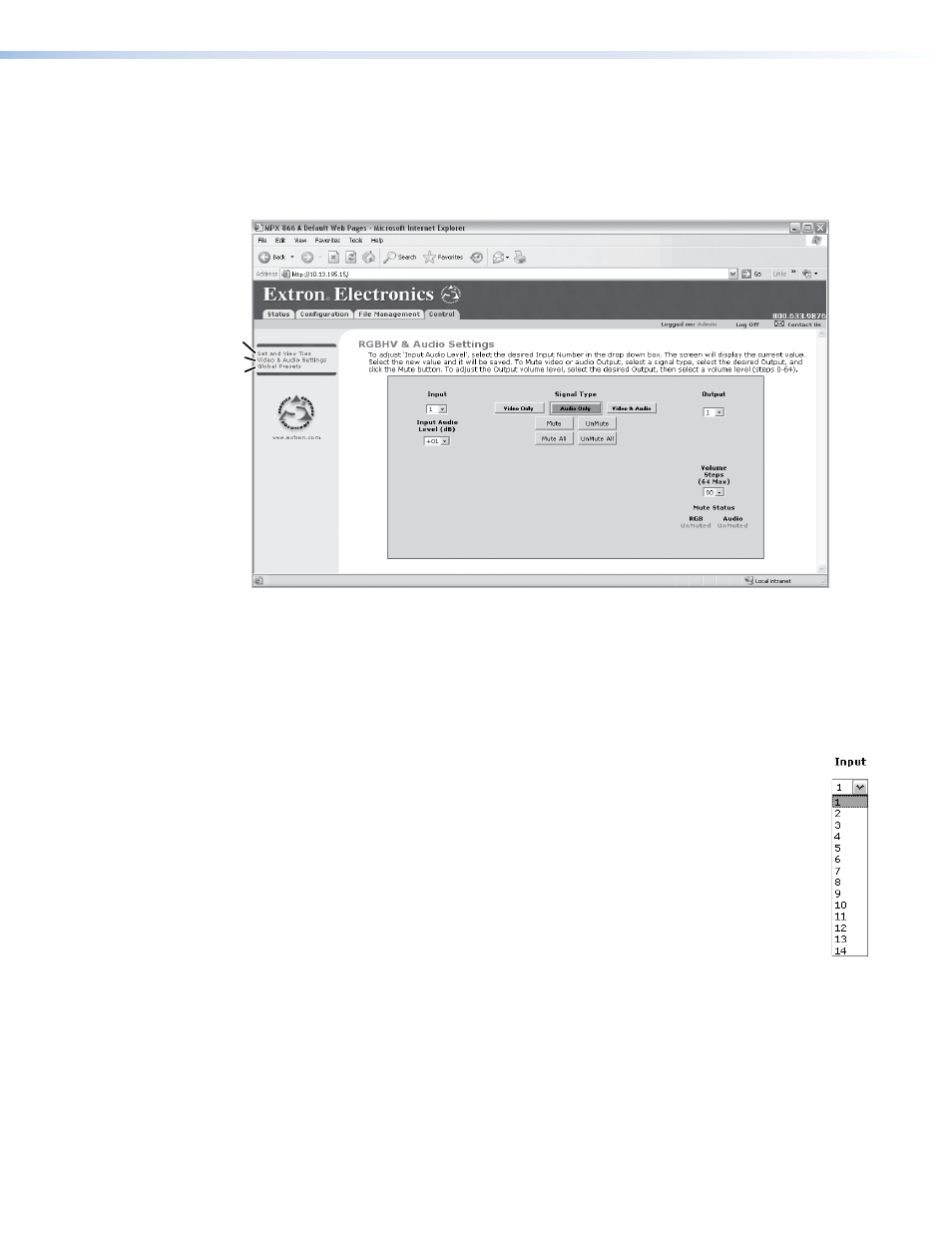

Figure 64. RGB and Audio Settings Page
Change the input gain and attenuation
Users can set the level of audio gain or attenuation (-18 dB to +24 dB) for each input from
the RGB and Audio Settings page. Audio levels can be adjusted so there are no noticeable
volume differences between sources.
Change an audio level setting as follows:
1. Click the Input drop box. A drop down scroll box appears).
2. Click the desired input.
