Global Presets Page
You can save and recall global presets from the Global presets page (see figure 68). Access
the Global presets page by clicking the
Global Presets link on the left of the Control
page.
Refresh
Video & Audio Settings
Set and View Ties

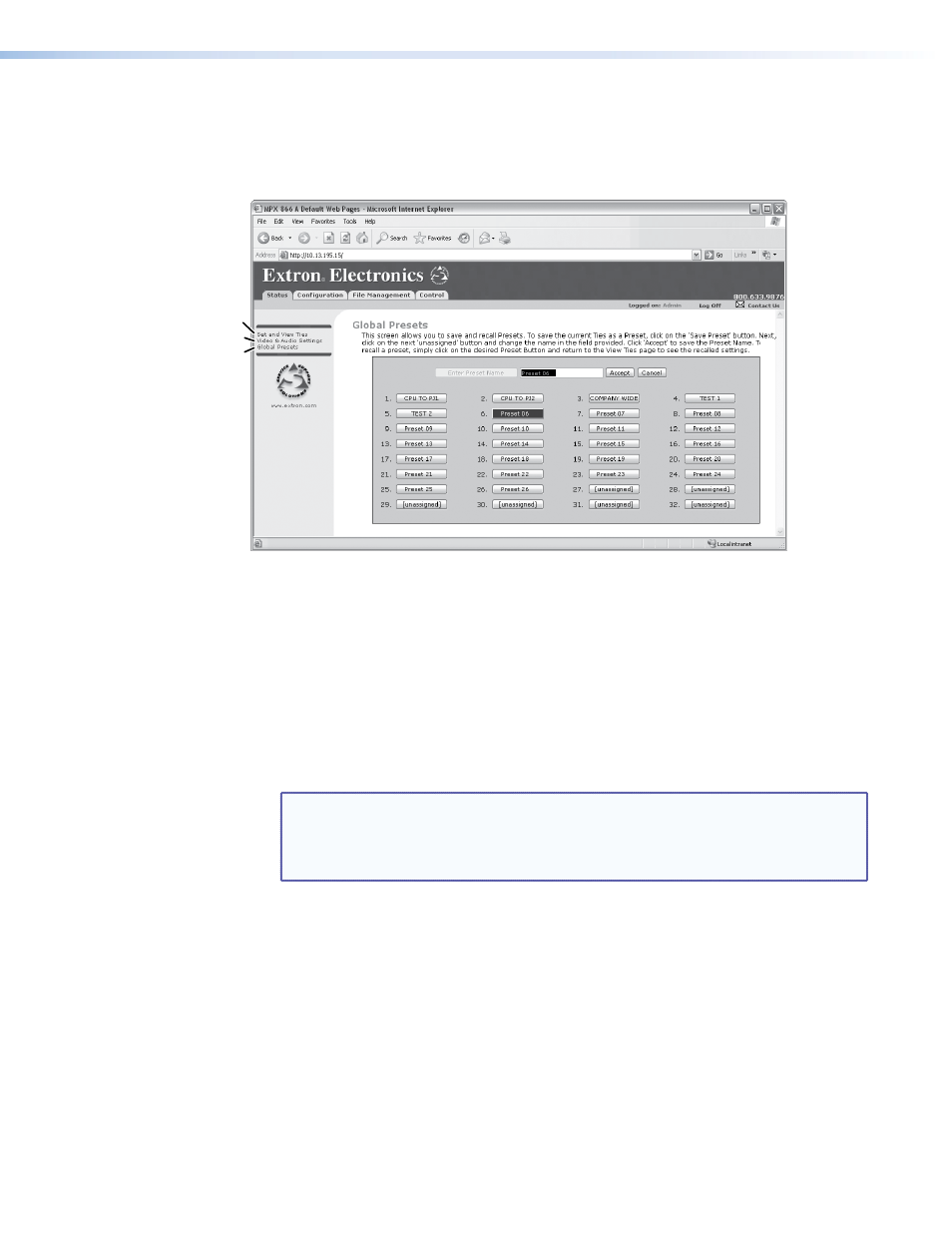

Figure 68. Global Presets Page
Saving a preset
Save the current configuration (configuration 0) as a preset as follows:
1. Click the Save Preset button.
2. Select the desired preset by clicking on one of the presets listed. To create a new preset,
click one of the [unassigned] buttons. Clicking a button for an already-assigned preset
overwrites the previous preset.
3. If desired, rename the preset by typing over the current name in the box adjacent to the
Save Preset button.
NOTES: • Preset names are limited to up to 12 upper and lower case alphanumeric
characters.
• The following characters are invalid or not recommended in preset names:
+ ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.
If you do not rename an unassigned button, the MPX 866 A matrix switcher names the
preset as Preset
{the selected preset number} , “Preset 08” for example.
If you do not rename an existing preset when it is overwritten, the MPX 866 A matrix
switcher retains the same name.
4. Click the Accept button.
Recalling a preset
To recall a global preset to be the current configuration, click the button associated with the
desired preset.
MPX 866 A Media Presentation Matrix Switcher • HTML Operation 111
