A Series ® Lighting Controller Programmer
Chapter 3 – Menu Structure
4

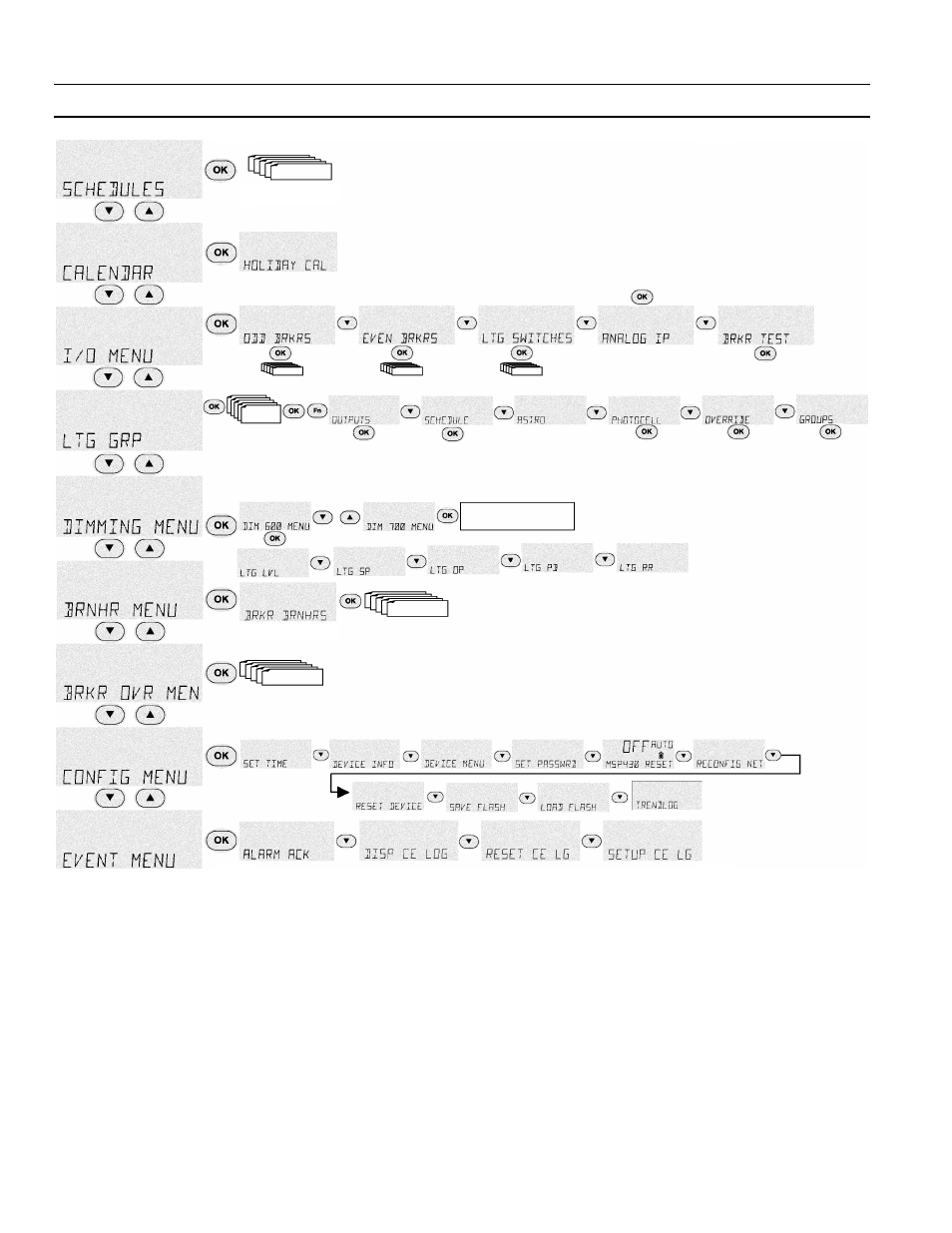

Figure 4. Menu structure of lighting controller, editor mode.
Menu Descriptions
Following are brief descriptions of the menus and the
functions they provide.
Schedules
This function views or edits Zn 1–16 schedules and turns
them on or off manually. Up to eight turn on and off
times can be scheduled per day for each day of the week
and two calendar references.
Calendar
This function views or edits the Calendar reference, which
is used to select days of the year. Calendar is referenced in
the schedule object and when the controller date matches
the calendar date, the schedule follows the calendar on
and off times.
I/O Menu
These menu items view and/or edit the inputs and
outputs.
Schedules 1–16
Lighting Grps 1–16
Same as DIM 600
Brkr BrnHrs 1–66
Brkr Ovrd 1–66
Odd Brkrs 01–65 Even Brkrs 02–66 Ltg Switches 01–502
Analog IP 01–03
LTG LVL 601–608
LTG LVL 701–708
BO 1–66
Ltg Grps 1–16
SCH 1–66
MI101–512
BV2001–2066
AI 1–3,
601–608,
701–708
MI101–512
BV2001–2066
MI101–512
BV2001–2066
Ltg Grps
1–16
