A Series

Lighting Controller Programmer

Chapter 9 – Dimming Menu

Press the

A/M

key to switch to manual mode:

Use the numeric keys to set the desired value; in
this example, from 200 to 100.

Press

to accept the change. Press

again,

followed by the

A/M

key to return to auto mode:

Press

key to make the switch to auto mode:

Note that unless you are familiar with the feedback
loop, it is advisable to not change the default
value.

Press down arrow key to go to the LTG RR object.

Setting Lighting Feedback Loop Rest Rate

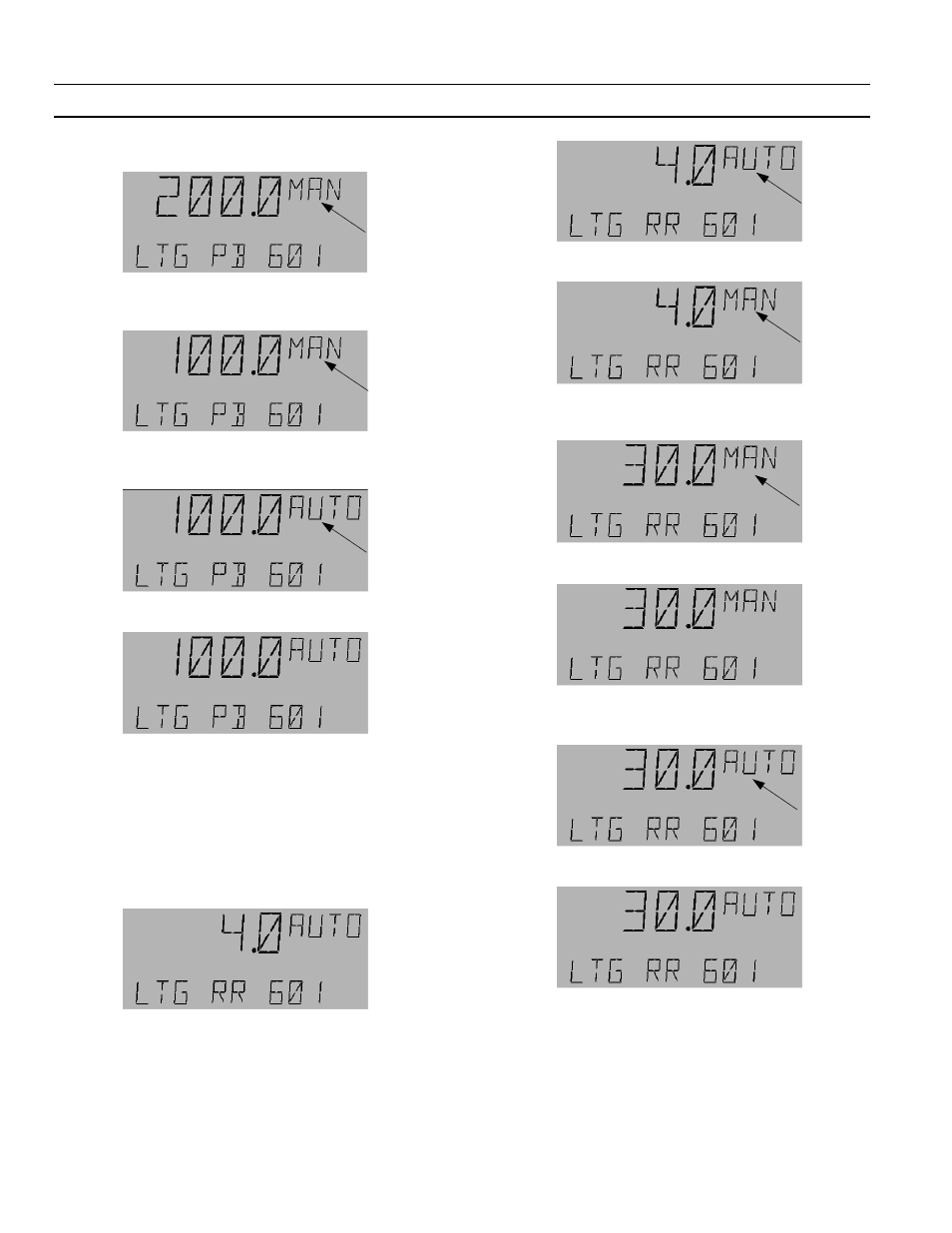

Scroll to the LTG RR object; the display will be
similar to the following:

Press

to edit the settings:

Press the

A/M

key to switch to mode.

Press the numeric keys to set the desired value; in
this example, from 4 to 30:

Press

to accept the change.

Press

again, followed by the

A/M

key to return

to auto mode:

Press

to make the switch to auto mode.

Note that unless you are familiar with the feedback
loop, it is advisable to not change the setting of the RR
object.

Flashing
