A Series

Lighting Controller Programmer

Chapter 7 – I/O Menu

switch can be configured in the maintained (tristate)
or momentary configuration. If the expansion board is
not connected to the system, a

symbol appears on

the display to indicate that the input is not physically
present in the system.

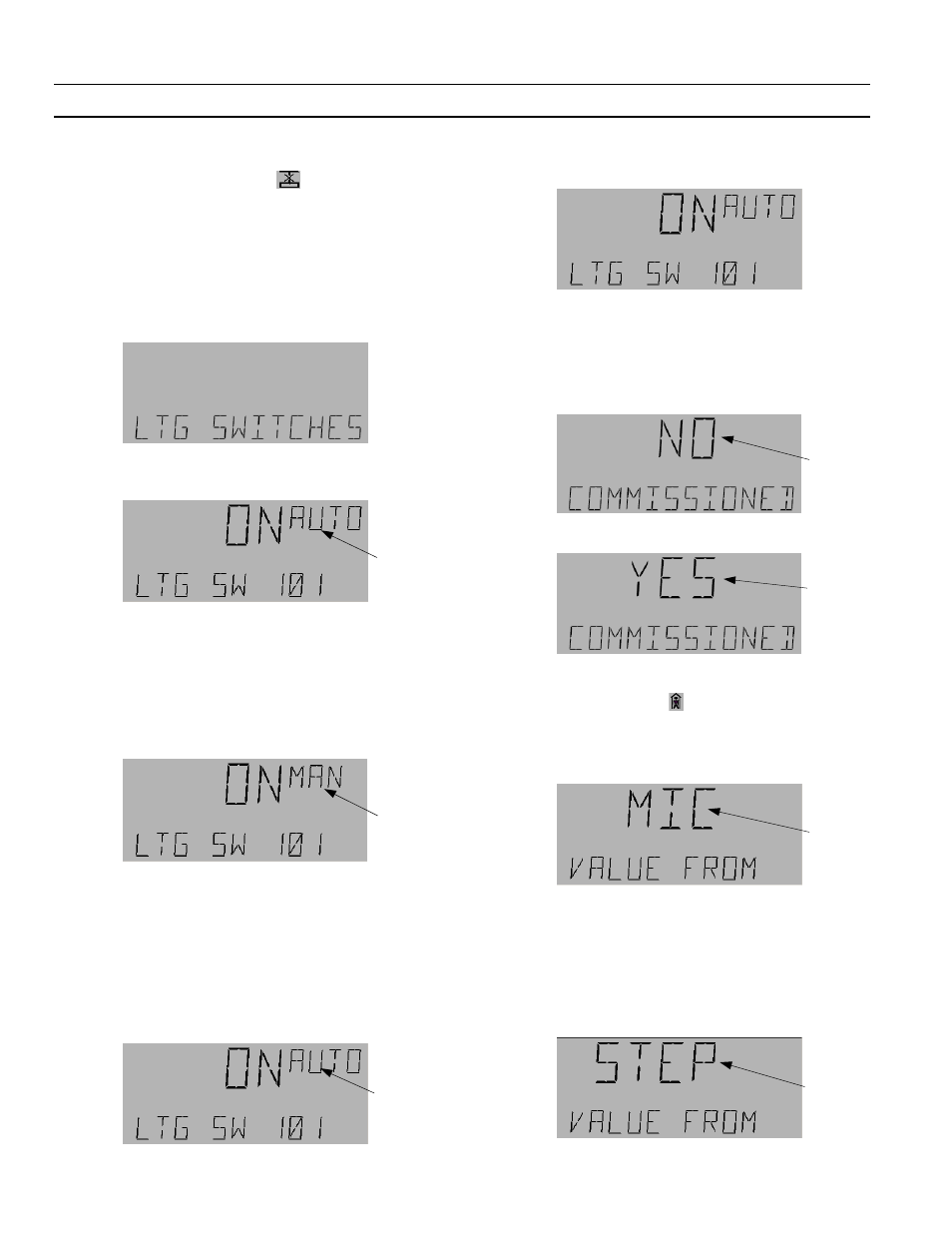

Editing Multistate Inputs

Use the following procedure to edit a multistate input:

Navigate to the Lighting Switches menu and press

Use the arrow keys to scroll to the desired MI and
then press

to edit.

Do one of the following:

• Press the

A/M

key to change the switch to

manual mode; continue with step 3.

• Press the

key to access the special functions;

jump to step 7.

If the

A/M

key is pressed, MAN and the value flash

on the display:

Use the arrow keys to adjust the value to OFF/ON
or N/A. (Note that, in manual mode, the items
displayed depend on the type of switch. If the
switch is the toggle type, it will display only ON
and OFF. If the switch is the maintained type, it
will indicate OFF, ON and N/A.) Press

accept the changes.

Press

again, followed by the

A/M

key to return

to auto mode.

Press

O K

to accept the change; auto mode the

switch is indicated. Go to step 12.

If the Fn key is pressed, COMMISSIONED with NO
or YES flashing displays on the LCD screen. When
an object is not commissioned, then no events or
alarms are logged. When an object is
commissioned, events and alarms are logged as
selected.

Press the arrow keys to adjust the Commissioned
status to YES or NO. If the switch is not
commissioned, the

symbol appears on the

display.

Press

to accept the changes. The following

screen appears:

This option (MIC) configures the switch as a
multistate maintained switch. Do either of the
following:

• Press

to accept the switch as a multistate

maintained switch.

• Press up the arrow key twice to move to the

next option:

Flashing
