A Series ® Lighting Controller Programmer
Chapter 8 – Lighting Group Menu
30
1 4 . Use the Arrow keys to scroll and review the
changes or press
ESC to return to the Photocell
submenu.
Override
The Override function is used to command a Lighting
Group On from the Off condition for a set time, and
then to command it Off by relinquishing control.
Override references can be BV, MI, BI, MV, both local
and remote. Any reference to BI and MV should be ignored.
The Override time can be set from 1 to 240 minutes.
The default value is 120 minutes.

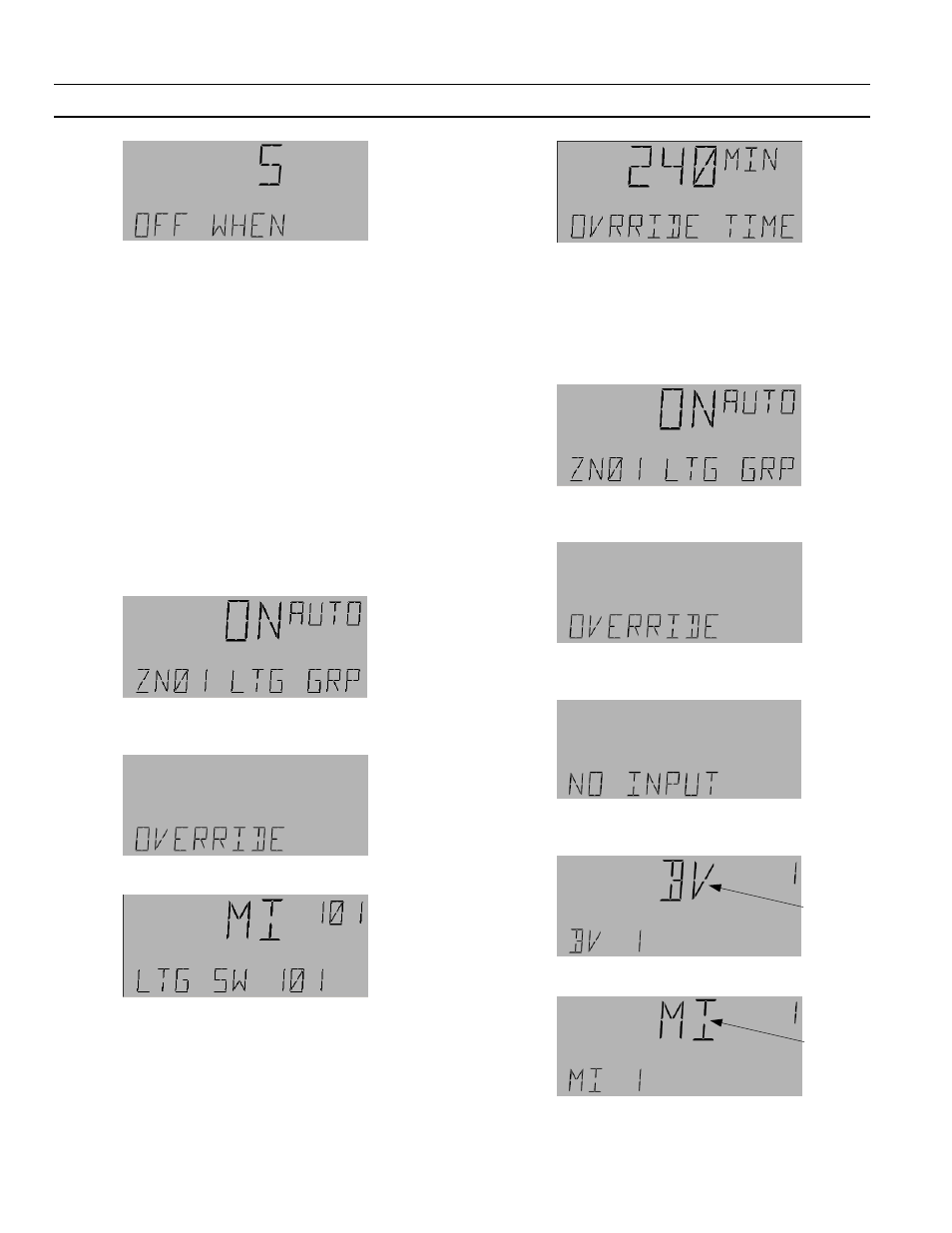

Viewing Override
Use the following procedure to view override times:
1. Navigate to the desired lighting group and press
OK .
2. Press the Fn key and use the arrow keys to navigate
to the Override menu:
3. Press OK to display the Override input:
4. Press the arrow keys to view the Override time
(1–240 minutes):
5. Press ESC to return to the Override submenu.
Adding an Override Input
Use the following procedure to add an Override input:
1. Navigate to the desired lighting group and press
OK .
2. Press the Fn key and use the arrow keys to navigate
to the Override menu:
3. If there are currently no inputs, the following
display appears:
4. Press OK and then use the arrow keys to select the
object type (BV, MI).
or
5. Press the Fn key to edit the panel number. Press
the numeric keys to change the panel number (if a
Flashing
Flashing
