2.1.6 Quick Menu Key Functions
Pres [Quick Menus] to see a list of different areas
contained in the Quick menu.

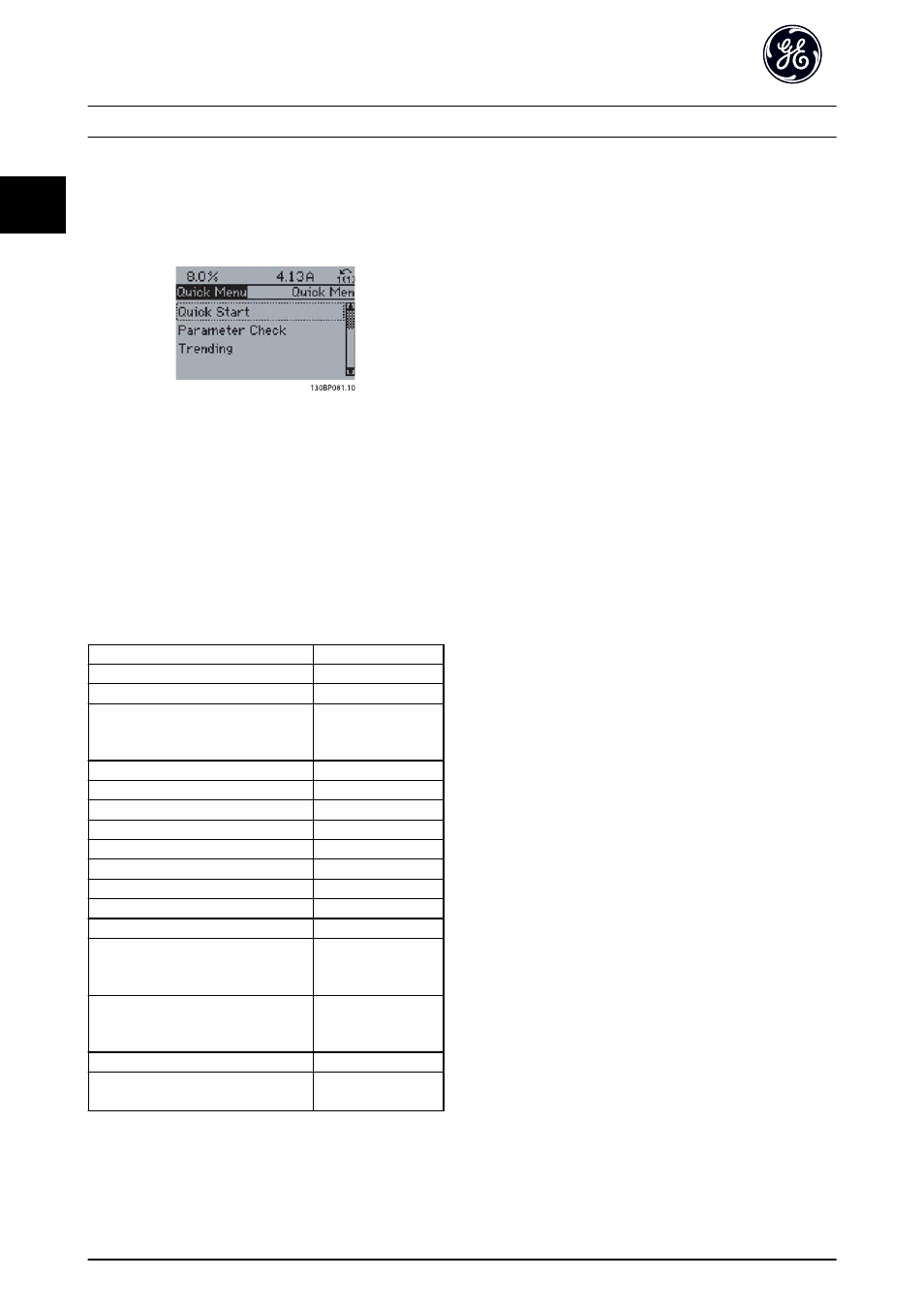

Illustration 2.13 Quick Menus
Select Quick Start to go through a limited amount of
parameters to get the motor running almost optimally. The
default setting for the other parameters considers the
desired control functions and the configuration of signal
inputs/outputs (control terminals).
The selection of parameter is effected by means of the
arrow keys. The parameters in the following table are
accessible.
Parameter Setting
K-01 Language
K-02 Motor Speed Unit
P-02 Motor Power [HP]
or
P-07 Motor Power [kW] [kW]
F-05 Motor Rated Voltage [V]
P-03 Motor Current [A]
F-04 Base Frequency [Hz]
P-06 Base Speed [rpm]
F-01 Frequency Setting 1
F-02 Operation Method
F-07 Accel Time 1 [sec]
F-08 Decel Time 1 [sec]
F-10 Electronic Overload
F-17 Motor Speed High Limit [RPM]
or
F-15 Motor Speed High Limit [Hz]
F-18 Motor Speed Low Limit [RPM]
or
F-16 Motor Speed Low Limit [Hz]
H-08 Reverse Lock
P-04 Auto Tune [1] Enable complete
Auto Tune
Table 2.2
Select Parameter Data Check to get information about:
•
the last 10 changes. Use the [
▲
] [
▼
] navigation
keys to scroll between the last 10 changed
parameters.
• the changes made since default setting.
Select Trendings to get information about the display line
read-outs. The information is shown as graphs.
Only display parameters selected in K-20 Display Line 1.1
Small and K-24 Display Line 3 Large can be viewed. It is
possible to store up to 120 samples in the memory for
later reference.
