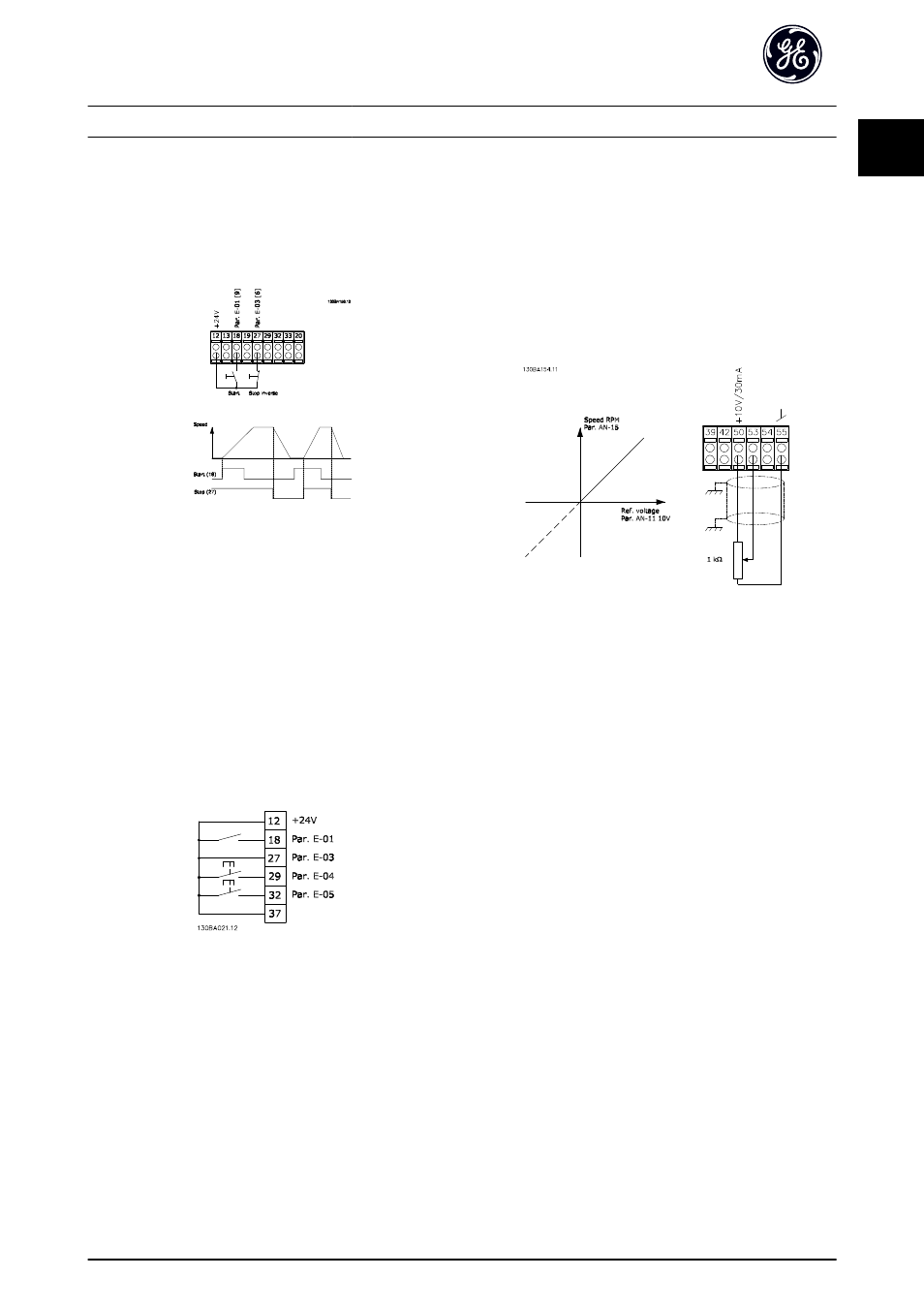

1.6.3 Pulse Start/Stop

Terminal 18 = E-01 Terminal 18 Digital Input Latched start,
[9]
Terminal 27= E-03 Terminal 27 Digital Input Stop inverse, [6]
Terminal 37 = Safe stop (where available)

Illustration 1.7 Pulse Start/Stop

1.6.4 Speed Up/Down

Terminals 29/32 = Speed up/down

Terminal 18 = E-01 Terminal 18 Digital Input Start
[9] (default)

Terminal 27 = E-03 Terminal 27 Digital Input
Freeze reference [19]

Terminal 29 = E-04 Terminal 29 Digital Input
Speed up [21]

Terminal 32 = E-05 Terminal 32 Digital Input
Speed down [22]

Illustration 1.8 Speed Up/Down

1.6.5 Potentiometer Reference

Voltage reference via a potentiometer

Reference Source 1 = [1] Analog input 53 (default)

Terminal 53, Low Voltage = 0 V

Terminal 53, High Voltage = 10 V

Terminal 53, Low Ref./Feedback = 0 RPM

Terminal 53, High Ref./Feedback = 1500 RPM

Switch S201 = OFF (U)

Illustration 1.9 Potentiometer Reference
