2 How to Program
2.1 The
Keypad
The easiest programming of the frequency converter is
performed by the keypad.
The keypad is divided into four functional groups
1.
Graphical display with Status lines.
2.
Menu keys and indicator lights - changing
parameters and switching between display
functions.
3.
Navigation keys and indicator lights (LEDs).
4.
Operation keys and indicator lights (LEDs).
All data is displayed in the display, which can show up to
five items of operating data while displaying [Status].
Display lines
a.
Status line: Status messages displaying icons and
graphic.
b.
Line 1-2: Operator data lines displaying data
defined or chosen by the user. By pressing
[Status], up to one extra line can be added.
c.
Status line: Status messages displaying text.

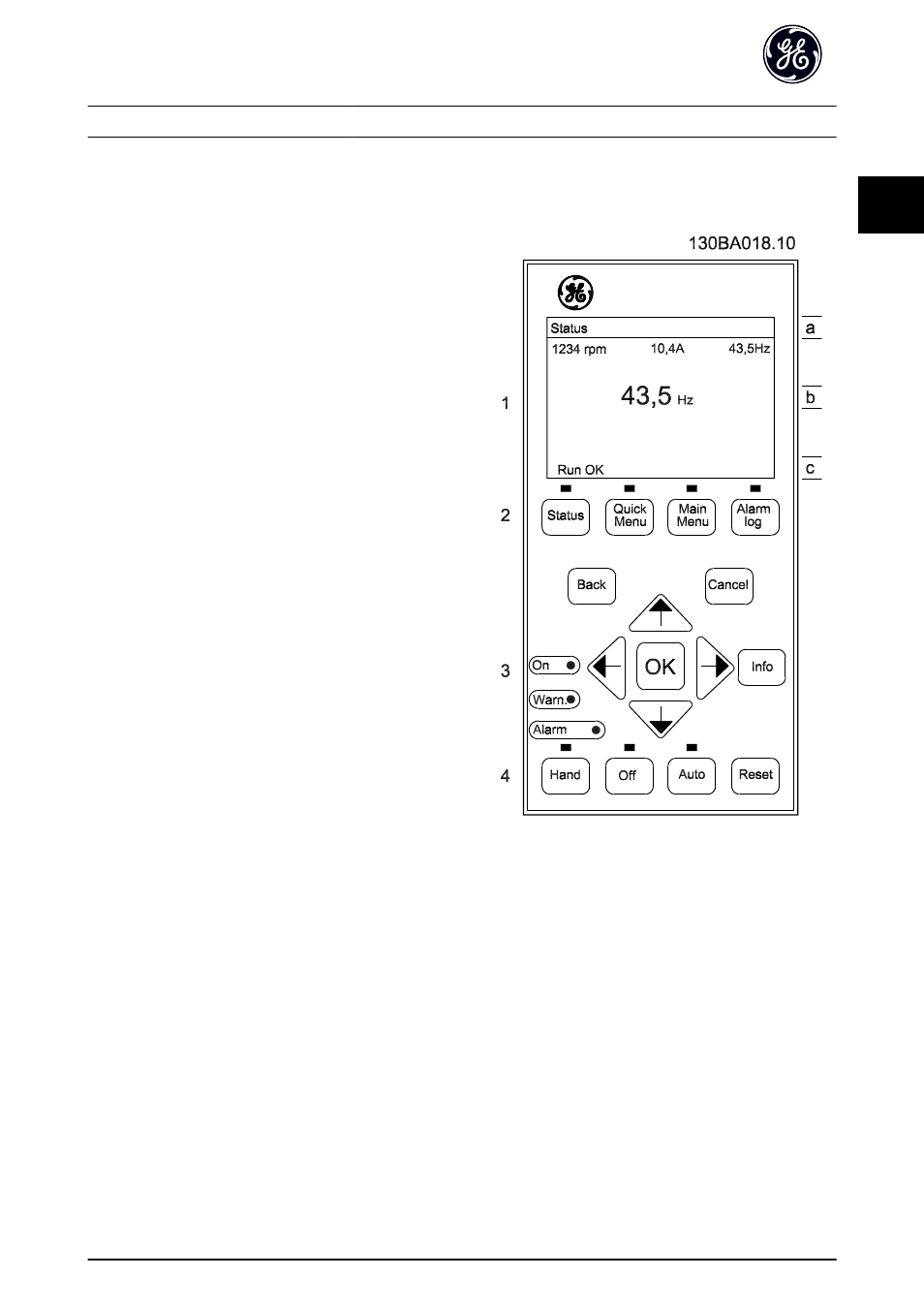

Illustration 2.1 Keypad
