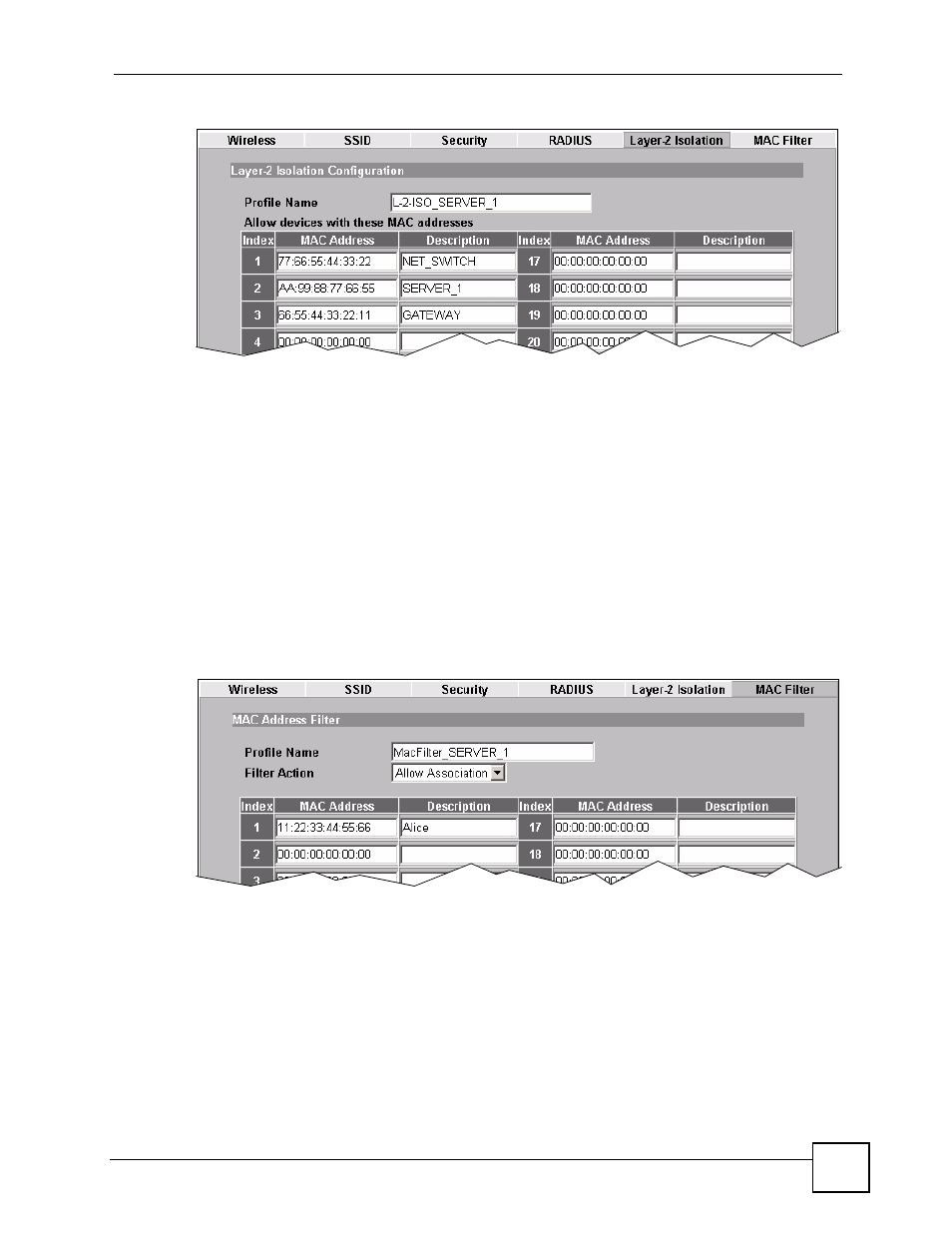

Figure 42 Tutorial: Layer-2 Isolation Edit
Enter the network switch’s MAC Address and add a Description (“NET_SWITCH” in
this case) in Set 1’s entry.
Enter server 1’s MAC Address and add a Description (“SERVER_1” in this case) in
Set 2’s entry.
Change the Profile Name to “L-2-ISO_SERVER_1” and click Apply. You have
restricted users on the SERVER_1 network to access only the devices with the MAC
addresses you entered.
4 Click the MAC Filter tab. When the MAC Filter screen appears, select macfilter03’s
entry and click Edit.
Enter the MAC address of the device Alice uses to connect to the network in Index 1’s
MAC Address field and enter her name in the Description field, as shown in the
following figure. Change the Profile Name to “MacFilter_SERVER_1”. Select Allow
Association from the Filter Action field and click Apply.
Figure 43 Tutorial: MAC Filter Edit (SERVER_1)
You have restricted access to the SERVER_1 network to only the networking device whose
MAC address you entered. The SERVER_1 network is now configured.
5.4.5 Configure the SERVER_2 Network
Next, you will configure the SERVER_2 network that allows Bob to access secure server 2
and the Internet.
