Chapter 5 Tutorial
NWA3550 User’s Guide
62

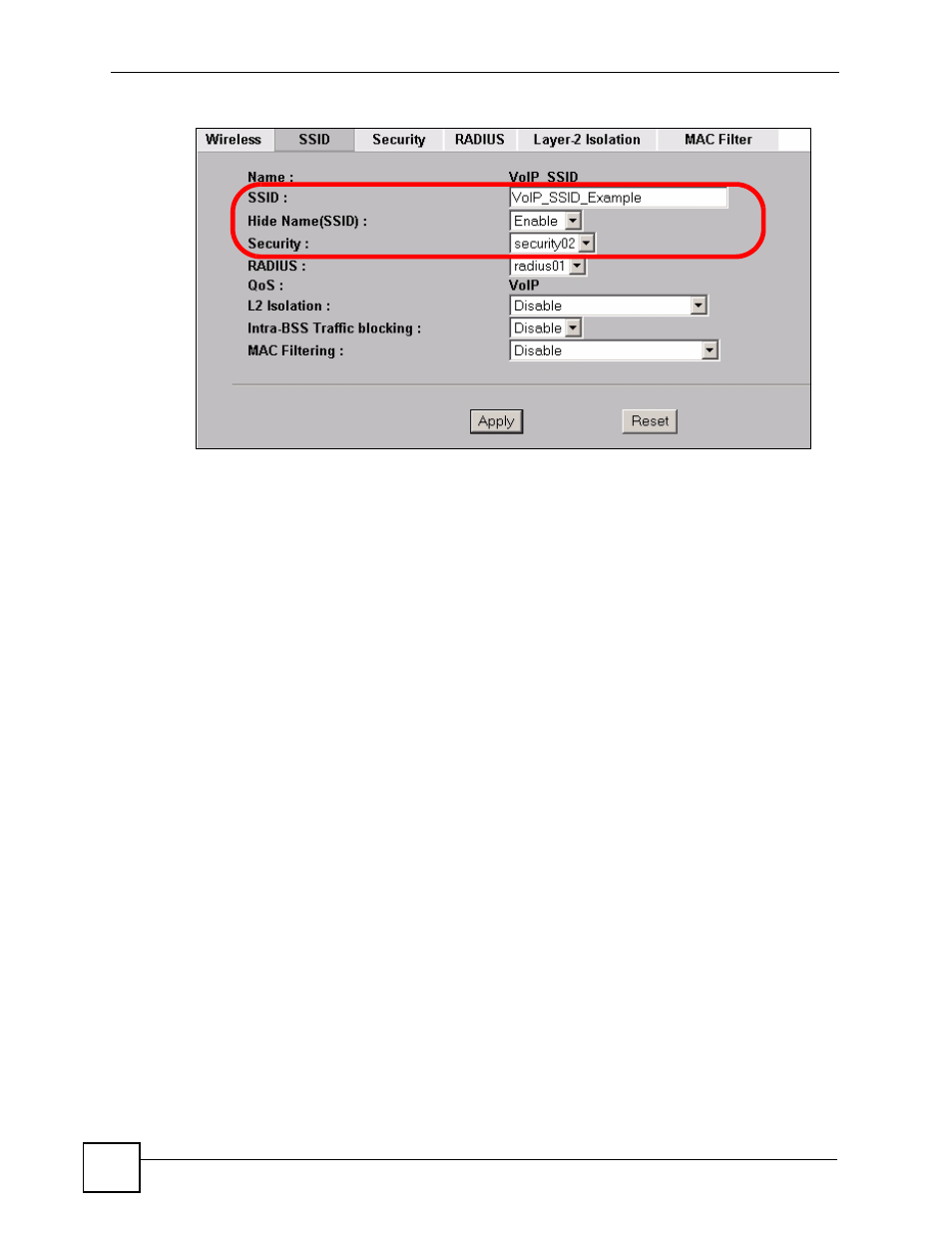

Figure 20 Tutorial: VoIP SSID Profile Edit
• Choose a new SSID for the VoIP network. In this example, enter VOIP_SSID_Example.
Note that although the SSID changes, the SSID profile name (VoIP_SSID) remains the
same as before.
• Select Enable from the Hide Name (SSID) list box. You want only authorized company
employees to use this network, so there is no need to broadcast the SSID to wireless
clients scanning the area.
• The standard network (SSID04) is currently using the security01 profile, so use a
different profile for the VoIP network. If you used the security01 profile, anyone who
could access the standard network could access the VoIP wireless network. Select
security02 from the Security field.
• Leave all the other fields at their defaults and click Apply.
5.2.2.1 Set Up Security for the VoIP Profile
Now you need to configure the security settings to use on the VoIP wireless network. Click the
Security tab.
