Chapter 10 Other Wireless Configuration
NWA3550 User’s Guide
133
10.3.1 Layer-2 Isolation Examples
The following section shows you example layer-2 isolation configurations on the ZyXEL
Device (A).
"
When configuring, remember to select the correct layer-2 isolation profile in
the WIRELESS > SSID > Edit screen of the relevant SSID profile.

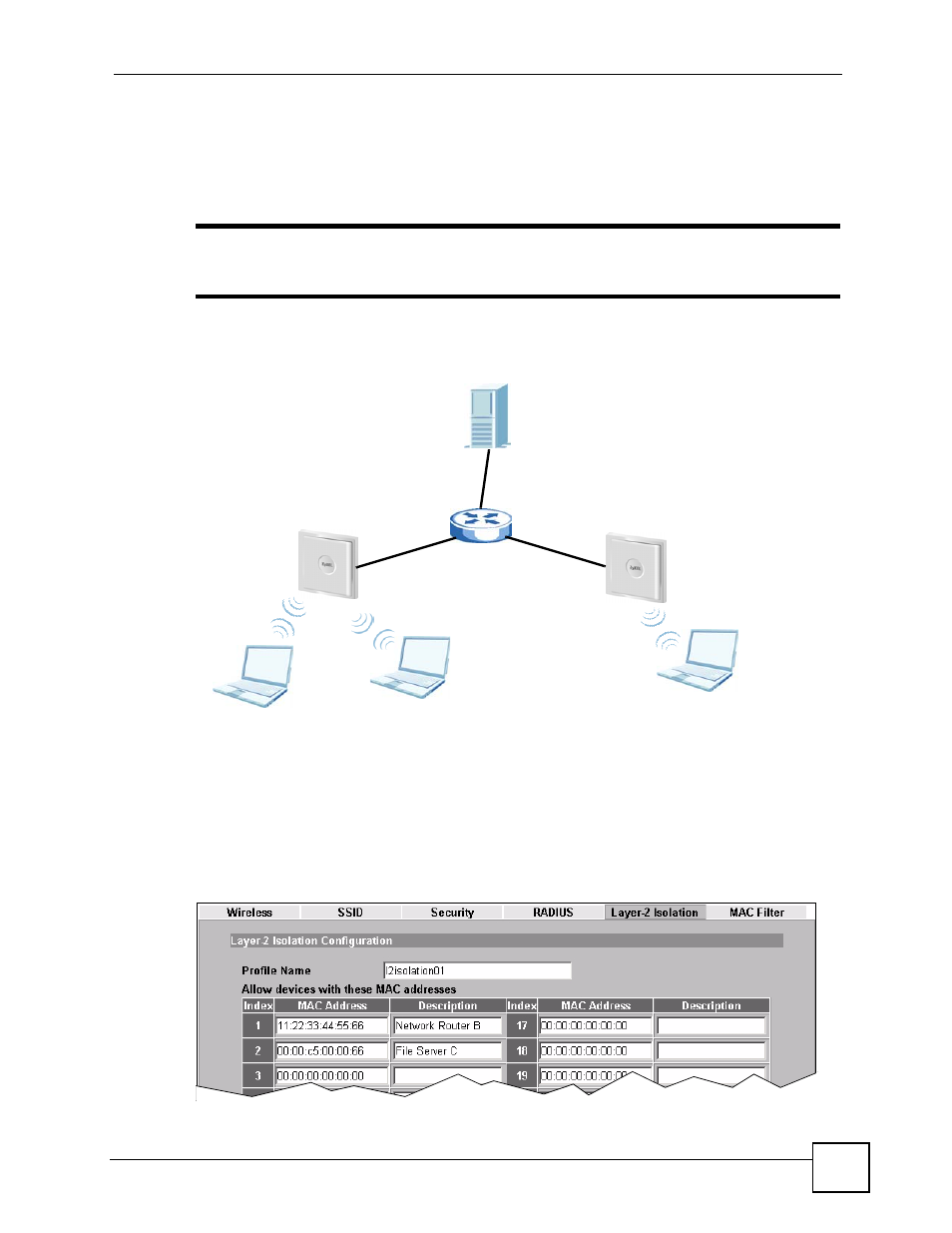

Figure 72 Layer-2 Isolation Example Configuration
10.3.1.1 Layer-2 Isolation Example 1
In the following example wireless clients 1 and 2 can communicate with network router B and
file server C, but not access point D or wireless client 3.
• Enter B’s MAC address in the MAC Address field, and enter “Network Router B” in B’s
Description field. Enter C’s MAC address in the MAC Address field, and enter “File
Server C” in C’s Description field.
Figure 73 Layer-2 Isolation Example 1
1
2
3
A
B
00:00:c5:00:00:cc
00:00:c5:00:00:66
11:22:33:44:55:66
C
D
