Chapter 17 VLAN
NWA3550 User’s Guide
208

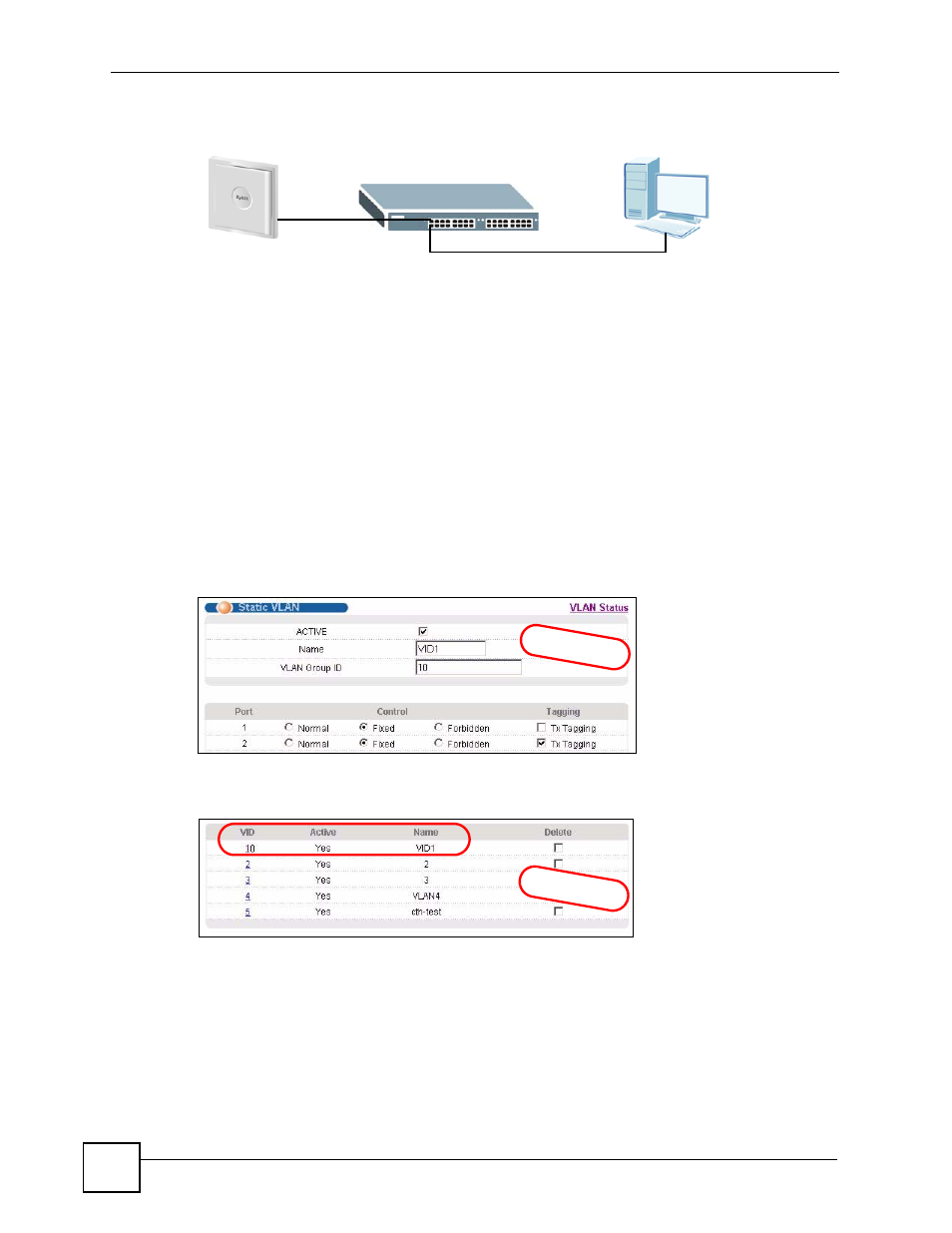

Figure 117 Management VLAN Configuration Example
Perform the following steps in the switch web configurator. This example uses the ZyXEL
switch screenshots.
1 Click VLAN under Advanced Application.
2 Click Static VLAN.
3 Select the ACTIVE check box.
4 Type a Name for the VLAN ID.
5 Type a VLAN Group ID. This should be the same as the management VLAN ID on the
ZyXEL Device.
6 Enable Tx Tagging on the port which you want to connect to the ZyXEL Device.
Disable Tx Tagging on the port you are using to connect to your computer.
7 Under Control, select Fixed to set the ports (1 and 2 in this example) as a member of the
VLAN.
Figure 118 VLAN-Aware Switch - Static VLAN
8 Click Apply. The following screen displays.
Figure 119 VLAN-Aware Switch
9 Click VLAN Status to display the following screen.
Port 1
Port 2
MVID = 10
EXAMPLE
EXAMPLE
