Page 68
Chapter 5 Tutorial
NWA3550 User’s Guide
68

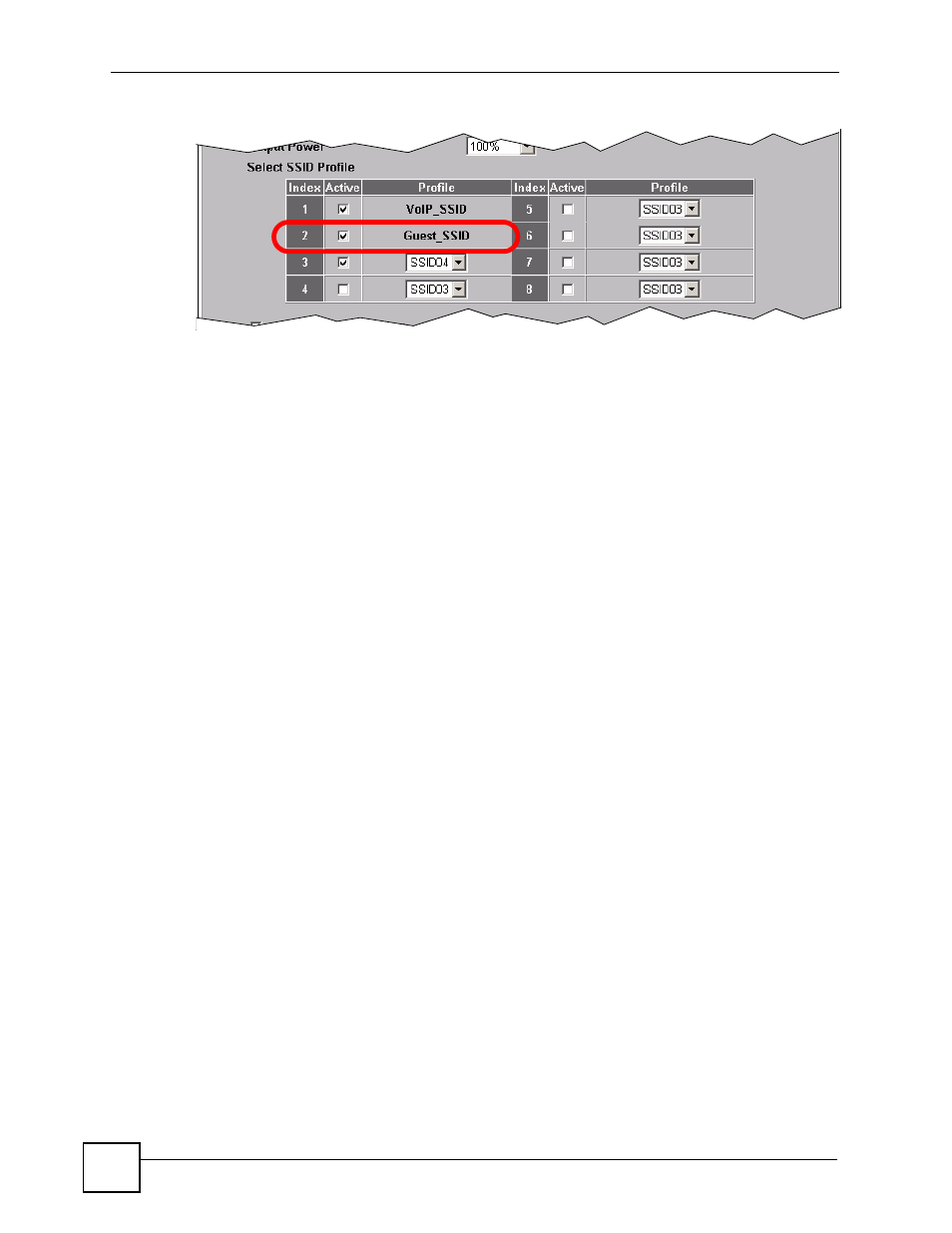

Figure 30 Tutorial: Activate Guest Profile
Your guest wireless network is now ready to use.
5.2.4 Testing the Wireless Networks
To make sure that the three networks are correctly configured, do the following.
• On a computer with a wireless client, scan for access points. You should see the
Guest_SSID network, but not the VoIP_SSID network. If you can see the VoIP_SSID
network, go to its SSID Edit screen and make sure Hide Name (SSID) is set to Enable.
Whether or not you see the standard network’s SSID (SSID04) depends on whether “hide
SSID” is enabled.
• Try to access each network using the correct security settings, and then using incorrect
security settings, such as the WPA-PSK for another active network. If the behavior is
different from expected (for example, if you can access the VoIP wireless network using
the security settings for the Guest_SSID wireless network) check that the SSID profile is
set to use the correct security profile, and that the settings of the security profile are
correct.
• Access the Guest_SSID network and try to access other resources than those specified in
the Layer 2 Isolation (l2isolation01) profile screen.
You can use the ping utility to do this. Click Start > Run... and enter “cmd” in the Open:
field. Click OK. At the c:\> prompt, enter “ping 192.168.1.10” (substitute the IP address
of a real device on your network that is not on the layer 2 isolation list). If you receive a
reply, check the settings in the WIRELESS > Layer-2 Isolation > Edit screen, and
ensure that the correct layer 2 isolation profile is enabled in the Guest_SSID profile
screen.
5.3 How to Set Up and Use Rogue AP Detection
This example shows you how to configure the rogue AP detection feature on the ZyXEL
Device.
A rogue AP is a wireless access point operating in a network’s coverage area that is not a
sanctioned part of that network. The example also shows how to set the ZyXEL Device to send
out e-mail alerts whenever it detects a rogue wireless access point. See
for background information on the rogue AP function and security considerations.
In this example, you want to ensure that your company’s data is not accessible to an attacker
gaining entry to your wireless network through a rogue AP.
