Chapter 7 VLAN
VES-1616F-3x Series User’s Guide
91
7.5.2 Configure a Static VLAN
To configure a static VLAN, click Static VLAN in the VLAN Status screen to display the
screen as shown next.
Use a static VLAN to decide whether an incoming frame on a port should be
• sent to a VLAN group as normal depends on its VLAN tag.
• sent to a group whether it has a VLAN tag or not.
• blocked from a VLAN group regardless of its VLAN tag.
You can also tag all outgoing frames (that were previously untagged) from a port with the
specified VID. Refer to
Section 7.1 on page 87 for background information.

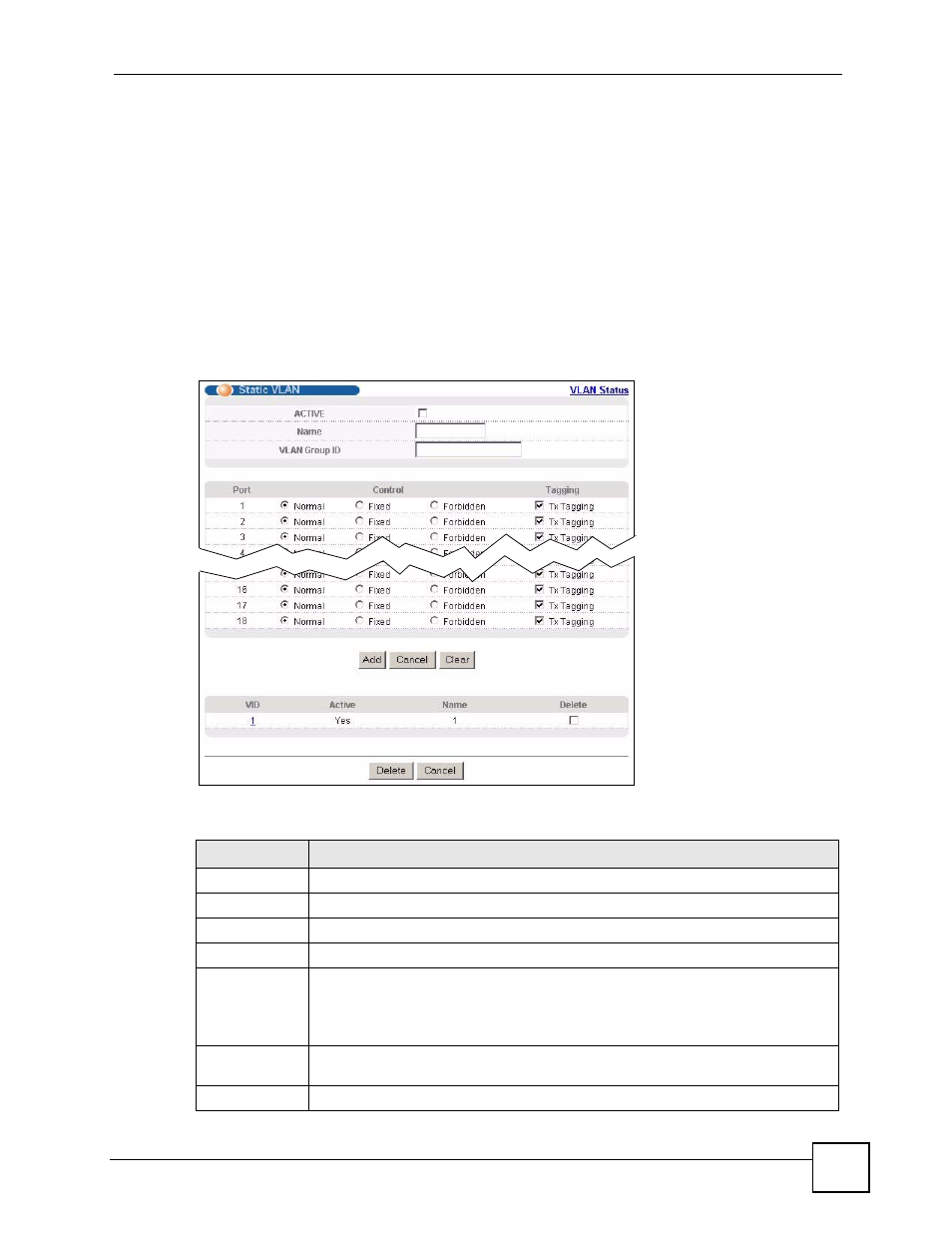

Figure 31 VLAN > Static VLAN
The following table describes the related labels in this screen.
Table 19 VLAN > Static VLAN
LABEL DESCRIPTION
ACTIVE Select this check box to activate the VLAN settings.
Name Enter a descriptive name for the VLAN group for identification purposes.
VLAN Group ID Enter the VLAN ID for this static VLAN; the valid range is between 1 and 4094.
Port The port number identifies the port you are configuring.
Control Select Normal for the port to dynamically join this VLAN group using GVRP. This is
the default selection.
Select Fixed for the port to be a permanent member of this VLAN group.
Select Forbidden if you want to prohibit the port from joining this VLAN group.
Tagging Select TX Tagging if you want the port to tag all outgoing frames (that were
previously untagged) transmitted with this VLAN Group ID.
Add Click Add to add the settings as a new entry in the summary table below.
