Chapter 11 Bandwidth Control
VES-1616F-3x Series User’s Guide
108

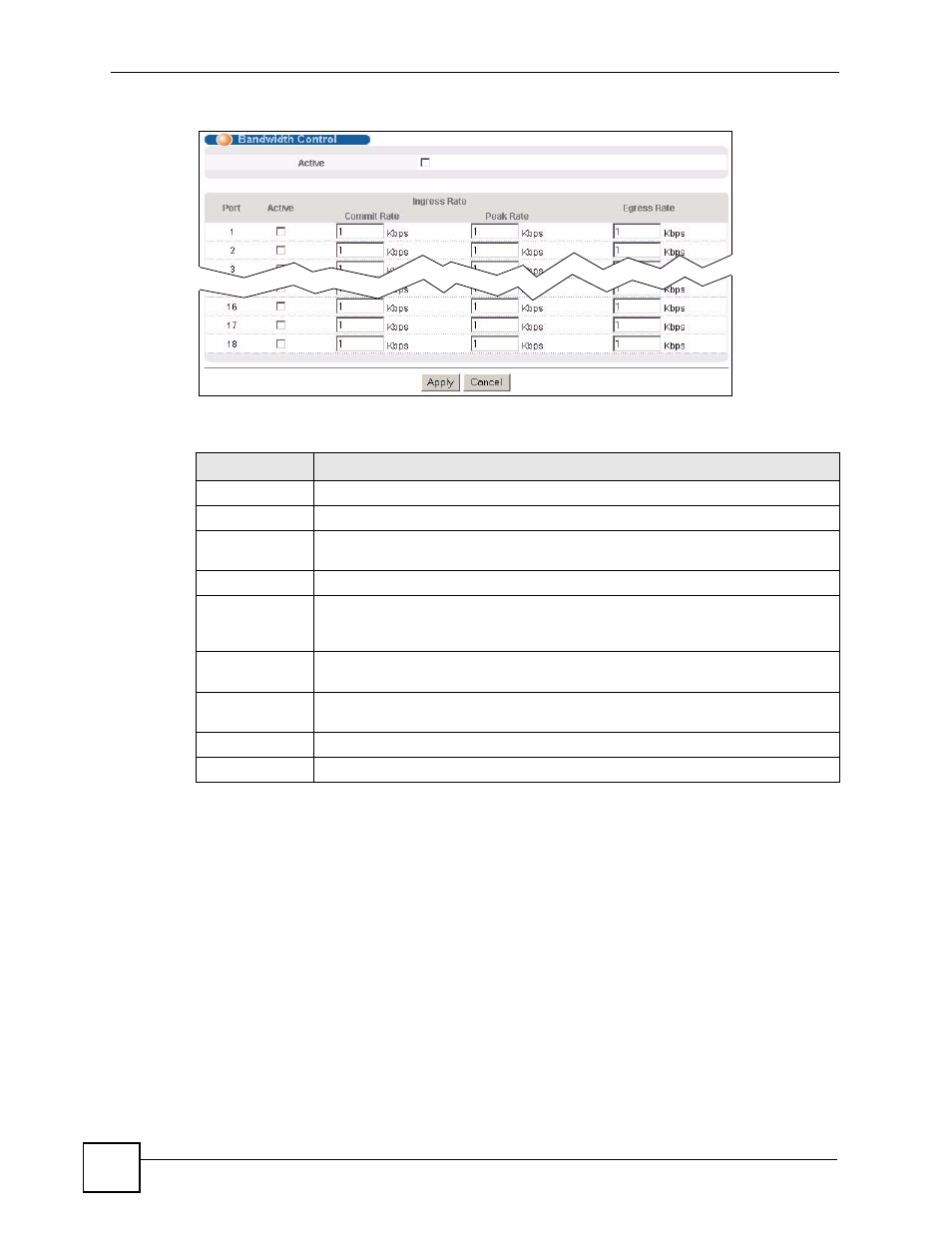

Figure 39 Bandwidth Control
The following table describes the related labels in this screen.
Table 28 Bandwidth Control
LABEL DESCRIPTION
Active Select this check box to enable bandwidth control on the switch.
Port This field displays the port number.
Active Make sure to select this check box to activate your rule. You may temporarily
deactivate a rule without deleting it by deselecting this check box.
Ingress Rate
Commit Rate Specify the guaranteed bandwidth allowed in kilobits per second (Kbps) for the
incoming traffic flow on a port. The commit rate should be less than the peak rate.
The sum of commit rates cannot be greater than or equal to the uplink bandwidth.
Peak Rate Specify the maximum bandwidth allowed in kilobits per second (Kbps) for the
incoming traffic flow on a port.
Egress Rate Specify the maximum bandwidth allowed in kilobits per second (Kbps) for the out-
going traffic flow on a port. Enter a number between 1000 and 1000 000.
Apply Click Apply to save the settings.
Cancel Click Cancel to reset the fields to your previous configuration.
