14.3 Link Aggregation Setup
Click Configuration in the Link Aggregation Control Protocol Status screen to display the
screen shown next.
See
Section 14.1 on page 113 for background information.

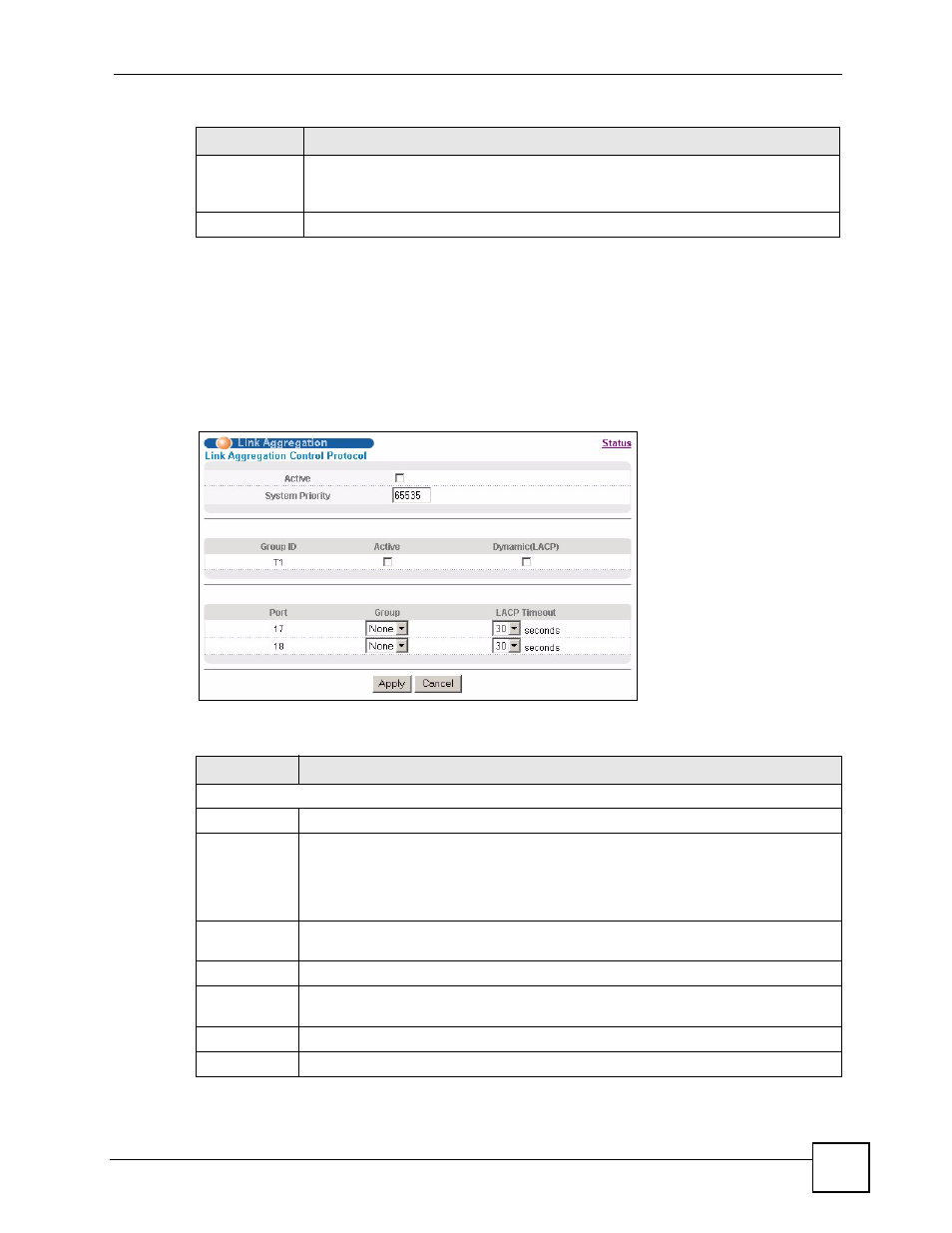

Figure 43 Link Aggregation Control Protocol > Configuration
The following table describes the labels in this screen.
Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change
the refresh interval by typing a new number in the text box and then clicking Set
Interval.
Stop Click Stop to halt statistic polling.
Table 33 Link Aggregation Control Protocol Status (continued)
LABEL DESCRIPTION
Table 34 Link Aggregation Control Protocol > Configuration
LABEL DESCRIPTION
Link Aggregation Control Protocol
Active Select this checkbox to enable Link Aggregation Control Protocol (LACP).
System
Priority
LACP system priority is a number between 1 and 65,355. The switch with the lowest
system priority (and lowest port number if system priority is the same) becomes the
LACP “server”. The LACP “server” controls the operation of LACP setup. Enter a
number to set the priority of an active port using Link Aggregate Control Protocol
(LACP). The smaller the number, the higher the priority level.
Group ID The field identifies the link aggregation group, that is, one logical link containing
multiple ports
Active Select this option to activate a trunk group.
Dynamic
(LACP)
Select this check box to enable LACP for a trunk.
Port This field displays the port number.
Group Select the trunk group to which a port belongs.
