Chapter 3 Hardware Overview

VES-1616F-3x Series User’s Guide

39

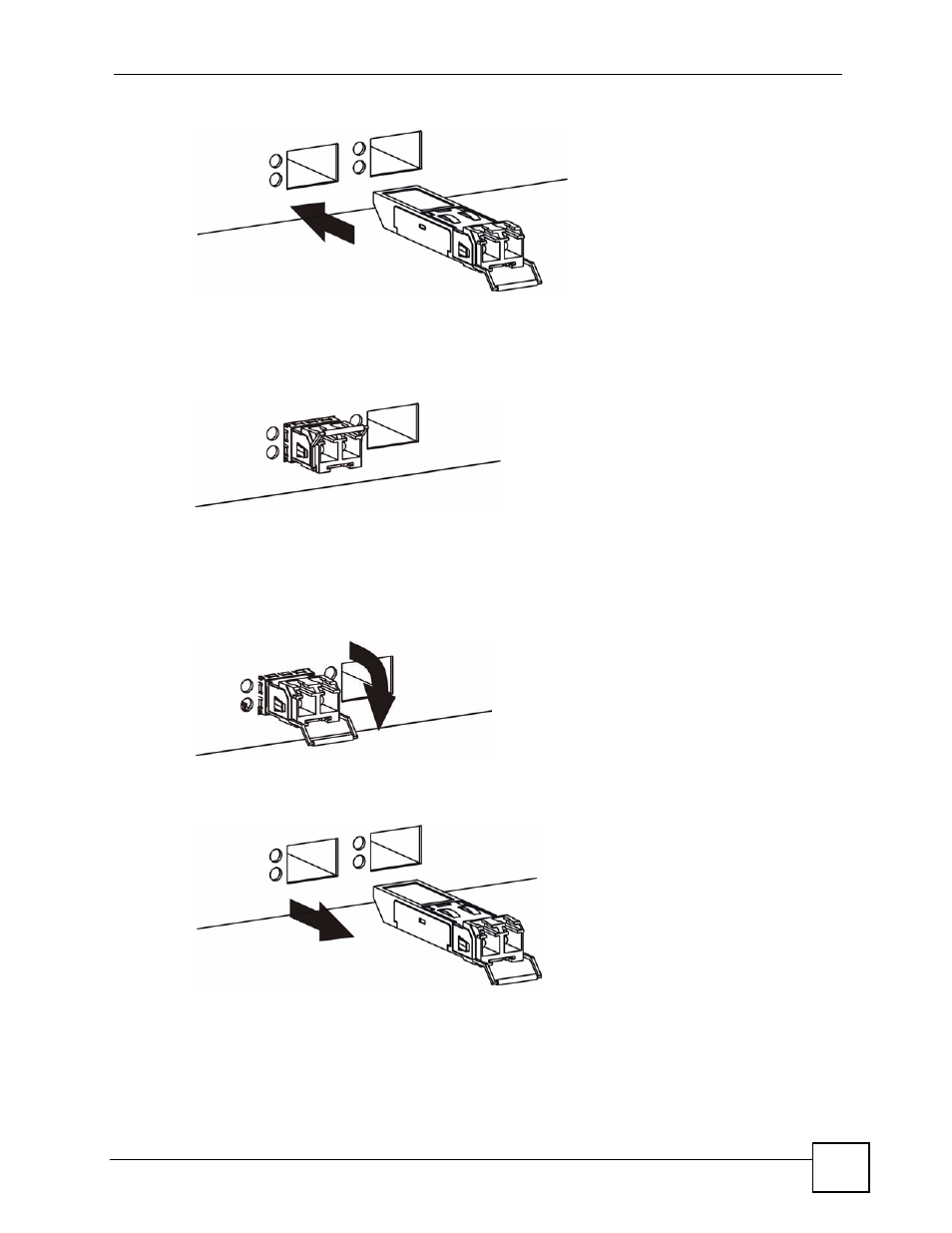

Figure 6 Transceiver Installation Example

2 Press the transceiver firmly until it clicks into place.
3 The switch automatically detects the installed transceiver. Check the LEDs to verify that

it is functioning properly.

Figure 7 Installed Transceiver

3.1.3.2 Transceiver Removal

Use the following steps to remove a mini GBIC transceiver (SFP module).

1 Open the transceiver’s latch (latch styles vary).

Figure 8 Opening the Transceiver’s Latch Example

2 Pull the transceiver out of the slot.

Figure 9 Transceiver Removal Example

3.1.4 Console Port

For local management, you can use a computer with terminal emulation software configured
to the following parameters:
