Chapter 14 Link Aggregation
VES-1616F-3x Series User’s Guide
114
14.1.2 Link Aggregation ID
LACP aggregation ID consists of the following information
1
:
14.2 Link Aggregation Status
Click Advanced Application > Link Aggregation in the navigation panel. The Link
Aggregation Control Protocol Status screen displays by default.
This screen displays LACP group aggregator ID, member port number(s) and the group status.

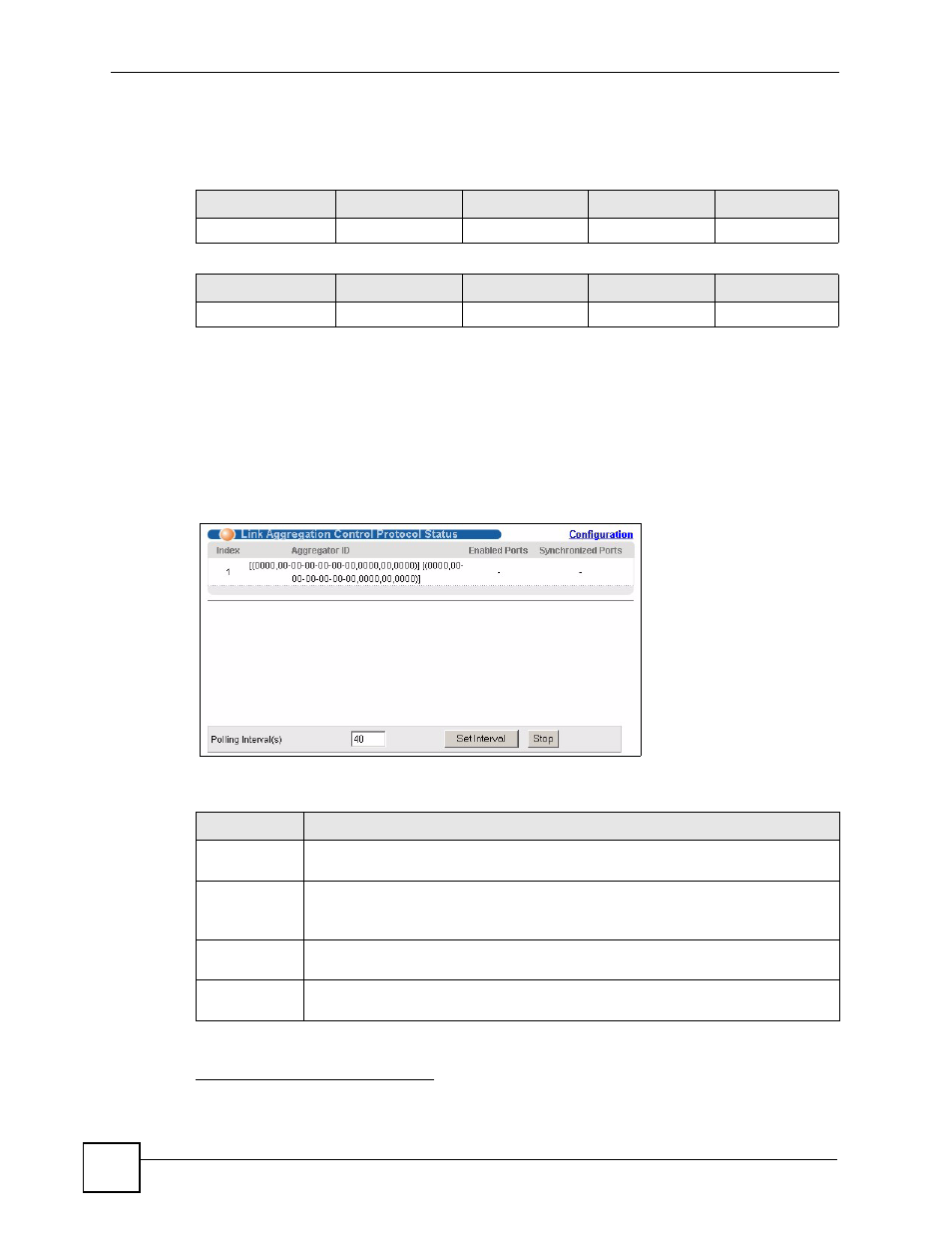

Figure 42 Link Aggregation Control Protocol Status
The following table describes the labels in this screen.
Table 31 Link Aggregation ID: Local Switch
SYSTEM PRIORITY MAC ADDRESS
KEY
PORT PRIORITY
PORT NUMBER
0000
00-00-00-00-00
0000
00
0000
Table 32 Link Aggregation ID: Peer Switch
SYSTEM PRIORITY MAC ADDRESS
KEY
PORT PRIORITY
PORT NUMBER
0000
00-00-00-00-00
0000
00
0000
1.
Port Priority and Port Number are 0 as it is the aggregator ID for the trunk group, not the individual port.
Table 33 Link Aggregation Control Protocol Status
LABEL
DESCRIPTION
Index
This field displays the trunk ID to identify a trunk group, that is, one logical link
containing multiple ports.
Aggregator ID
This field displays the link aggregation ID. Link aggregation ID consists of the
following: system priority, MAC address, key, port priority and port number.
Refer to
for more information on this field.
Enabled Ports
These are the ports you have configured in the Link Aggregation screen to be in the
trunk group.
Synchronized
Ports
These are the ports that are currently transmitting data as one logical link in this trunk
group.
