29.2 Cluster Management Status
Click Management > Cluster Management in the navigation panel to display the following
screen.
"
A cluster can only have one manager.

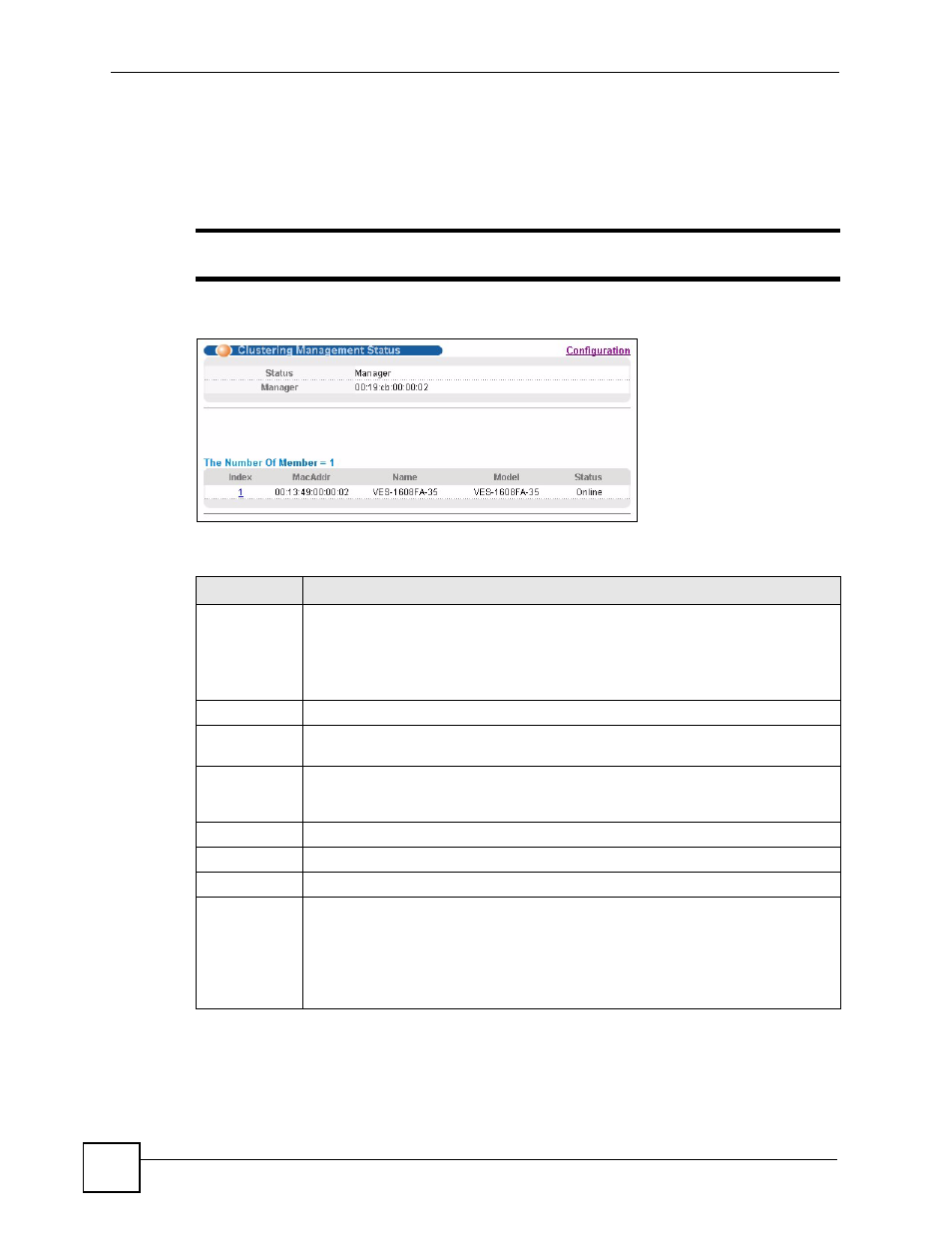

Figure 101 Cluster Management Status
The following table describes the labels in this screen.
Table 73 Cluster Management Status
LABEL DESCRIPTION
Status This field displays the role of this switch within the cluster.
Manager
Member (you see this if you access this screen in the cluster member switch directly
and not via the cluster manager)
None (neither a manager nor a member of a cluster)
Manager This field displays the cluster manager switch’s hardware MAC address.
The Number of
Member
This field displays the number of switches that make up this cluster. The following
fields describe the cluster member switches.
Index You can manage cluster member switches via the cluster manager switch. Each
number in the Index column is a hyperlink leading to the cluster member switch’s web
configurator (see Figure 102 on page 199 ).
MacAddr This is the cluster member switch’s hardware MAC address.
Name This is the cluster member switch’s System Name.
Model This field displays the model name.
Status This field displays:
Online (the cluster member switch is accessible)
Error (for example the cluster member switch password was changed or the switch
was set as the manager and so left the member list, etc.)
Offline (the switch is disconnected - Offline shows approximately 1.5 minutes after
the link between cluster member and manager goes down)
