VES-1616F-3x Series User’s Guide
121
C
H A P T E R
16
Port Security
This chapter shows you how to set up port security.
16.1 Port Security Overview
Port security allows only packets with dynamically learned MAC addresses and/or configured
static MAC addresses to pass through a port on the switch. The switch can learn up to 16K
MAC addresses in total with no limit on individual ports other than the sum cannot exceed
16K.
For maximum port security, enable this feature, disable MAC address learning and configure
static MAC address(es) for a port. It is not recommended you disable Port Security together
with MAC address learning as this will result in many broadcasts.
16.2 Port Security Setup
Click Advanced Application > Port Security in the navigation panel to display the screen as
shown.

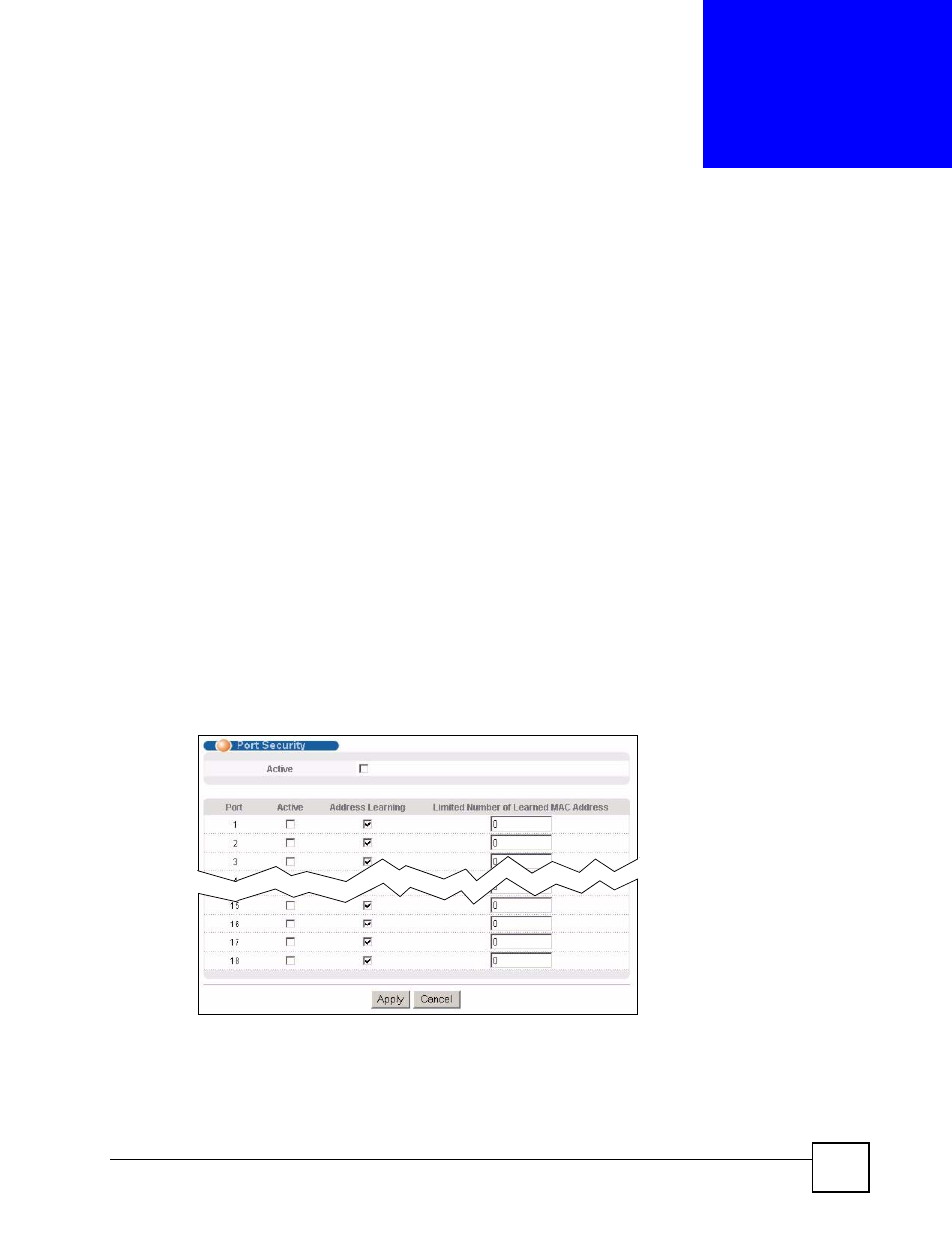

Figure 48 Port Security
