Chapter 10 Spanning Tree Protocol
VES-1616F-3x Series User’s Guide
103
10.2 STP Status
Click Advanced Application > Spanning Tree Protocol in the navigation panel to display
the screen. View current STP status on the switch in this screen.
Refer to
Section 10.1 on page 101 for background information.

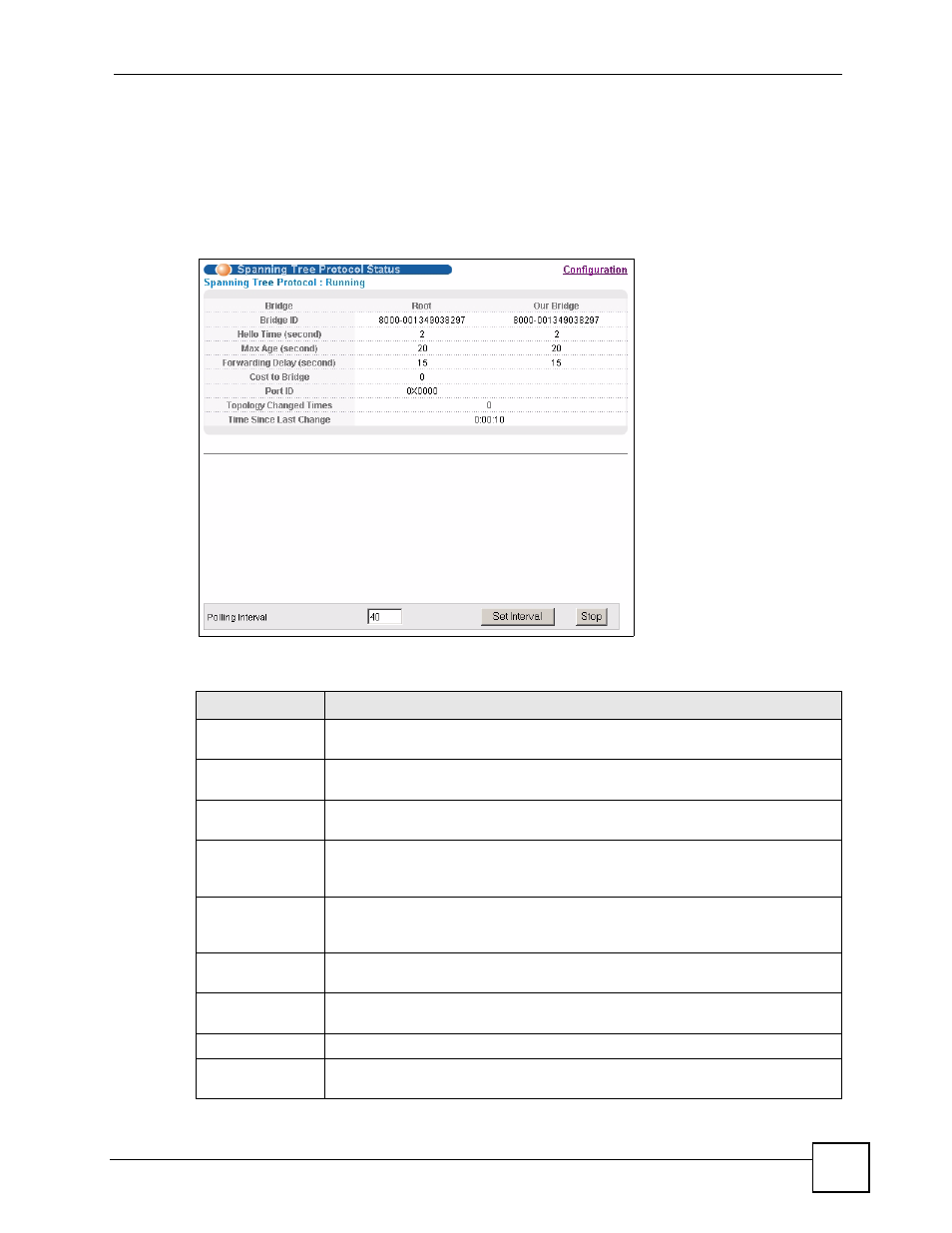

Figure 37 Spanning Tree Protocol Status
The following table describes the labels in this screen.
Table 26 Spanning Tree Protocol Status
LABEL DESCRIPTION
Spanning Tree
Protocol
This field displays Running if STP is activated. Otherwise, it displays Down.
Configuration Click Configuration to configure STP settings. Refer to Section 10.3 on page
104 .
Bridge Root refers to the base of the spanning tree (the root bridge). Our Bridge is this
switch. This switch may also be the root bridge.
Bridge ID This is the unique identifier for this bridge, consisting of bridge priority plus MAC
address. This ID is the same for Root and Our Bridge if the switch is the root
switch.
Hello Time
(second)
This is the time interval (in seconds) at which the root switch transmits a
configuration message. The root bridge determines Hello Time, Max Age and
Forwarding Delay
Max Age (second) This is the maximum time (in seconds) a switch can wait without receiving a
configuration message before attempting to reconfigure.
Forwarding Delay
(second)
This is the time (in seconds) the root switch will wait before changing states (that
is, listening to learning to forwarding).
Cost to Bridge This is the path cost from the root port on this switch to the root switch.
Port ID This is the priority and number of the port on the switch through which this switch
must communicate with the root of the Spanning Tree.
